APC by Schneider Electric Galaxy vs UPS 10KW 400V 1 Internal 9AH Smart Modular - GVSUPS10KB4HS

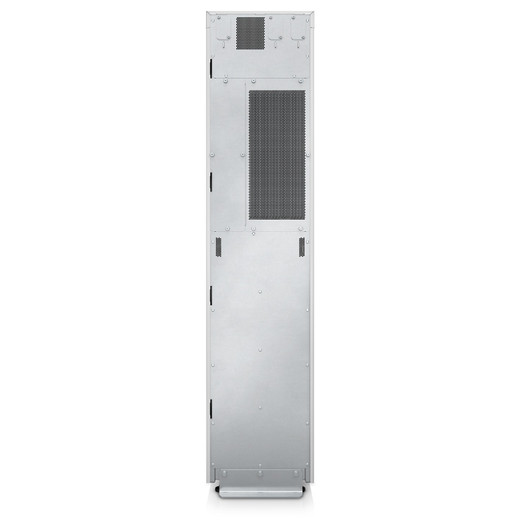

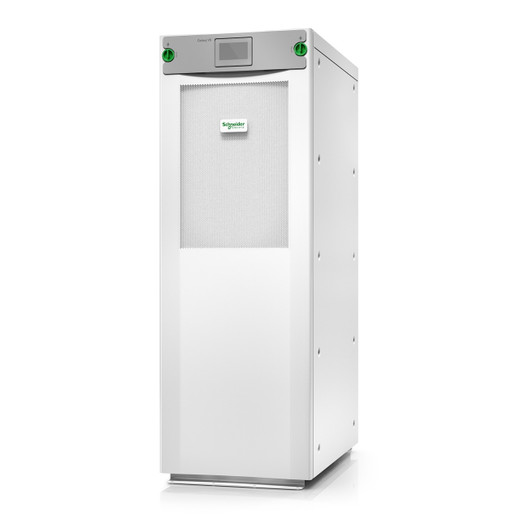

APC by Schneider Electric GVSUPS10KB4HS Galaxy VS 10kW 3-Phase Online UPS

Overview

The APC by Schneider Electric GVSUPS10KB4HS is a 10kW (10kVA) three-phase, double-conversion online UPS operating at 400V — built for data centers, server rooms, network closets, and commercial facilities where clean, uninterrupted power is non-negotiable. Unlike standby or line-interactive designs that switch to battery only on failure, the Galaxy VS runs in continuous double-conversion mode: incoming AC is rectified to DC and immediately re-inverted to a clean sine wave output, isolating connected equipment from every grid anomaly — surges, sags, harmonics, and frequency variation — without switching delays. If your load is sensitive computing or surveillance infrastructure that cannot tolerate even a 4ms transfer gap, this topology is the correct answer.

The GVSUPS10KB4HS ships with one internal 9AH Smart Modular Battery String and is designed for runtime expansion — adding battery modules extends backup time without replacing the core unit. That modularity matters in facilities where power requirements grow or where you need to match runtime to specific SLA obligations without overprovisioning hardware on day one.

The three-phase UPS category on this site covers the full range of Galaxy VS configurations; compare this unit against higher-capacity siblings in the APC by Schneider Electric catalog if your load exceeds 10kW or if you require redundant modules.

Key Features

• Double-Conversion (Online) Topology: Connected equipment never runs directly off raw utility power. Every watt passes through rectification and re-inversion, producing a pure sine wave regardless of grid quality. This is the architecture to specify when protecting storage arrays, VoIP systems, or any load that is sensitive to voltage deviation or THD.
• 10kW / 10kVA Output at Unity Power Factor: The GVSUPS10KB4HS delivers its full 10,000W real-power output — meaning no de-rating penalty for loads with a power factor of 1.0. Servers, switches, and modern power supplies typically present near-unity loads, so you get the full nameplate capacity available to work with.
• Three-Phase Input and Output (3Ø → 3Ø): Both input and output are three-phase, matching the distribution architecture of most commercial and data center environments. This keeps your electrical panel design clean and avoids the single-phase current imbalance that plagues undersized deployments.
• Wide Input Voltage Window — 340V to 460V: The unit tolerates a 120V input swing (340–460V) before switching to battery. In facilities with aging distribution or generator-backed feeds that fluctuate significantly, this range keeps the batteries in reserve rather than cycling them on every grid event — extending overall battery service life.
• 40–70 Hz Input Frequency Acceptance: Accepts input from 40Hz to 70Hz, making this unit compatible with generator power sources that may not hold exactly 50Hz or 60Hz under load. Generator-backed deployments or sites with frequency instability will stay online rather than fault.
• Output THD ≤ 3% and Crest Factor 2.5:1: Output voltage Total Harmonic Distortion is held below 3% — well within the tolerance of sensitive computing equipment. The 2.5:1 crest factor means the UPS can handle the high peak-to-RMS current demands of switched-mode power supplies without clipping or voltage distortion.
• Input Current THD ≤ 3% with 0.99 Input Power Factor: Drawing power at 0.99 power factor with under 3% current THD means this UPS presents an extremely clean load to your upstream distribution and generator. You avoid the harmonic pollution that can trip circuit breakers, overheat transformers, or disrupt other equipment sharing the same panel.
• ECO Mode Available: When grid quality is consistently good, ECO mode routes power through a bypass path at reduced conversion losses — lowering heat output and operating costs. Note that ECO mode does reduce the level of power conditioning versus full double-conversion; use it only where the incoming supply is stable and the load is not ultra-sensitive.
• Output Voltage Range 380–415V: Output is regulated within the 380–415V band at 50 or 60Hz, providing stable voltage to downstream distribution panels and PDUs regardless of what the incoming grid delivers within the accepted input window.
• Maximum Output Current 18A: At 10kW three-phase, the 18A per-phase current ceiling aligns with standard 20A three-phase circuit infrastructure, giving you a comfortable safety margin at full load and reducing the risk of nuisance tripping on upstream breakers.
• Expandable Smart Modular Battery String: The included 9AH battery string is the starting point, not the ceiling. Adding battery modules extends runtime proportionally — critical for facilities that must meet specific recovery-time objectives or ride through extended generator start sequences.

Integration and Compatibility

The Galaxy VS platform is designed to integrate with network management cards and building management systems via standard protocols, enabling remote monitoring of UPS status, battery health, load levels, and alarm conditions. In surveillance and security deployments, pairing this unit with compatible PoE switches and NVR infrastructure ensures that camera uptime survives utility outages — a requirement for any installation subject to loss-of-signal compliance.

Three-phase 400V distribution is standard in European, Middle Eastern, and international commercial construction, and is increasingly common in North American data center buildouts using international equipment. Confirm your facility's distribution voltage and phase configuration before ordering — this unit is a 400V three-phase design and is not interchangeable with 208V or 120/240V single-phase UPS products.

When sizing, account for both real power (kW) and apparent power (kVA). Because the GVSUPS10KB4HS operates at unity output power factor, these values are equal at 10kW/10kVA — simplifying capacity planning. If your connected load approaches 10kW, consider stepping up to a higher-capacity Galaxy VS variant rather than running this unit at sustained 100% utilization, which shortens battery cycle life and reduces thermal headroom.

Frequently Asked Questions

Q: What UPS topology does the GVSUPS10KB4HS use, and why does it matter?

A: The GVSUPS10KB4HS uses double-conversion (online) topology. In this design, all power continuously passes through an AC-to-DC rectifier and a DC-to-AC inverter, so connected equipment is always running from a clean, stable sine wave — never directly from utility power. There is no transfer time when utility power fails; the inverter is already carrying the load. This topology provides the highest level of power conditioning and is the appropriate choice for sensitive computing, storage, and network infrastructure.

Q: Can the GVSUPS10KB4HS be expanded to increase battery runtime?

A: Yes. The unit ships with one internal 9AH Smart Modular Battery String and is designed to accept additional battery modules to extend runtime. This allows you to match backup duration to your specific recovery-time objectives without replacing the UPS itself as runtime requirements grow.

Q: What input voltage and frequency range does the GVSUPS10KB4HS accept?

A: The unit accepts input voltages from 340V to 460V (three-phase) and input frequencies from 40Hz to 70Hz. This wide tolerance keeps the UPS on utility power through significant grid fluctuations and is compatible with generator power sources that may deviate from nominal frequency under load.

Q: What is the output power factor of the GVSUPS10KB4HS, and how does that affect capacity planning?

A: The GVSUPS10KB4HS has a unity (1.0) output power factor, meaning the full 10kVA of apparent power equals 10,000W of real power delivery. Modern servers, switches, and switched-mode power supplies typically present near-unity loads, so you can plan to the full 10kW nameplate without de-rating.

Q: Is the GVSUPS10KB4HS suitable for North American 120V or 208V installations?

A: No. This unit is rated for 400V three-phase input and output, which is standard in European and international commercial electrical infrastructure. It is not compatible with 120V single-phase or 208V North American distributions. Verify your facility's phase configuration and distribution voltage before purchasing.

Q: What does ECO mode do, and when should it be used?

A: ECO mode routes power through a bypass path when grid quality is consistently clean, reducing conversion losses and operating costs. However, it provides less power conditioning than full double-conversion mode. Use ECO mode only in stable grid environments with non-sensitive loads. For critical computing or surveillance infrastructure on unpredictable utility feeds, keep the unit in full double-conversion mode.

Jerry Tildsen

The GVSUPS10KB4HS is the unit I reach for when a project calls for three-phase 400V coverage in the 10kW range and the load mix includes anything sensitive enough to care about input harmonic distortion. That 0.99 input power factor combined with under 3% input current THD is the spec that makes facilities engineers happy — you are not injecting harmonic pollution back into a shared distribution panel, which matters in multi-tenant data halls or any site where a generator is part of the picture.

Technical Highlights:

• 340–460V Input Window: A 120V swing on the input side means this UPS rides through grid sags and generator voltage excursions without switching to battery unnecessarily — keeping battery cycles in reserve for actual outages rather than burning them on everyday fluctuations.
• Output THD ≤ 3% / Crest Factor 2.5:1: Output distortion below 3% with a 2.5:1 crest factor headroom means the inverter stage can handle the high inrush currents from switched-mode power supplies without clipping the output waveform — important when the load is a rack of servers drawing simultaneous startup current.
• 40–70 Hz Input Frequency Acceptance: Generator sets under varying load can drift meaningfully from 50Hz or 60Hz nominal. The 40–70Hz acceptance band absorbs that drift without faulting to battery, which is a real operational advantage during extended generator runs in facilities without precision governors.

Deployment Considerations:

• Confirm three-phase 400V distribution infrastructure before commissioning — this unit does not adapt to single-phase or 208V environments, and ordering the wrong voltage class is a costly mistake on a unit this size.
• ECO mode looks attractive on paper for energy savings, but in surveillance or security-critical deployments on variable grid feeds, the reduced conditioning in ECO mode can expose equipment to the same harmonic and sag conditions you bought a double-conversion UPS to eliminate — leave it in full conversion mode unless you have verified grid quality data supporting the switch.

The GVSUPS10KB4HS is well-matched to international commercial data centers, enterprise network rooms, and security operations centers running 400V three-phase distribution, particularly where generator integration and expandable battery runtime are part of the site's resilience design.
