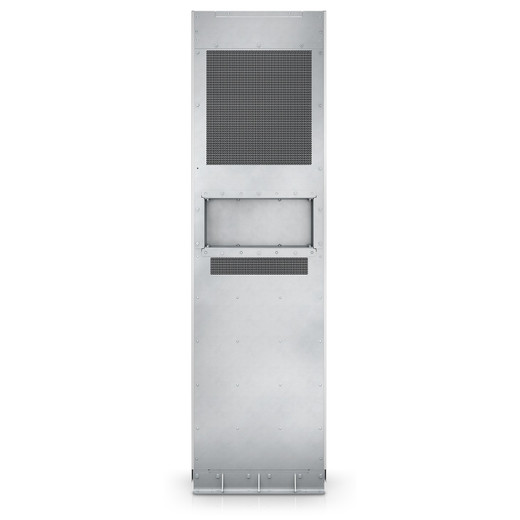

APC by Schneider Electric Galaxy vs UPS 10KW 208V with N+1 Power Module for 5 - GVSUPS10KR0B5FS

APC by Schneider Electric GVSUPS10KR0B5FS Galaxy VS 10KW 208V Modular UPS with N+1 Redundancy

Overview

The GVSUPS10KR0B5FS is a factory-configured bundle that delivers 10KW of online double-conversion power protection at 208V alongside the infrastructure needed to deploy it — combining an N+1 redundant power module, a 5-slot modular power distribution unit, a mains-rated output panel, and a factory start-up service engagement in a single purchase. For facilities teams or IT architects who need to eliminate single points of failure at the UPS layer without a separate commissioning budget line, this SKU packages the protection architecture and the on-site service call together.

The N+1 power module configuration means the system carries one additional power module beyond what is required to support the 10KW load — if a module faults or is pulled for maintenance, the remaining modules absorb the load without a transfer event. That redundancy model is the primary reason this UPS class appears in critical power infrastructure deployments: server rooms, network operations centers, and security command centers where an unplanned outage carries real operational cost.

Key Features

• 10KW / 208V capacity: Sized for mid-range IT rack deployments — sufficient for a populated server or network rack without the capital overhead of a larger three-phase frame.
• N+1 power module redundancy: One extra power module beyond load requirement means you can pull a module for service or absorb a fault without dropping the load — the defining feature that separates this configuration from a standard non-redundant UPS.
• 5-slot modular PDU included: The integrated modular PDU allows output circuit configuration to match your specific rack receptacle and breaker requirements, rather than adapting to a fixed-output design.
• Mains-rated output panel: The included output panel is rated for direct mains connection, supporting installations where local electrical code or facility standards require a fully rated output termination — not a field workaround.
• Start-up service included: Factory start-up service is bundled into this SKU. An APC field technician performs installation verification, startup commissioning, and initial system checkout — reducing the risk of a misconfigured installation and activating the manufacturer warranty on day one.
• Galaxy VS platform: The Galaxy VS line is APC by Schneider Electric's mid-range three-phase UPS architecture, designed for scalable power protection in data center and facilities environments. For more context on the broader product line, see the APC by Schneider Electric catalog.

Deployment Context

This bundle is configured for facilities that want a complete, commissioning-ready package rather than purchasing the base UPS frame, redundancy module, PDU components, and service separately. The start-up service inclusion is especially relevant for sites where the local team lacks UPS commissioning experience or where the warranty activation requires factory-verified installation. Pair with a static transfer switch or dual-feed input strategy if your site architecture requires source-level redundancy beyond what the UPS internal redundancy provides.

Frequently Asked Questions

Q: What does the N+1 power module configuration mean in practice for the GVSUPS10KR0B5FS?

A: N+1 means the UPS carries one more power module than required to support the 10KW load. If one module fails or is removed for maintenance, the remaining modules continue supplying the load without interruption or a transfer event — eliminating the power module as a single point of failure.

Q: Is start-up service really included with this SKU, or is it a separate purchase?

A: Start-up service is included as part of the GVSUPS10KR0B5FS bundle per the product name and APC's published SKU description. It covers factory-verified installation commissioning by an APC field technician.

Q: What is the 5-slot modular PDU included for?

A: The 5-slot modular PDU allows you to configure the UPS output distribution to match your specific receptacle types and circuit breaker requirements. Rather than a fixed-output design, you select the output modules that match your load devices.

Q: What input/output voltage does the GVSUPS10KR0B5FS support?

A: The unit is rated for 208V operation. For detailed input voltage range, frequency tolerance, and output specifications, consult the APC Galaxy VS 10KW datasheet or contact APC pre-sales engineering directly.

Q: Can this UPS be expanded beyond 10KW?

A: The Galaxy VS platform is a modular architecture. Whether this specific frame supports capacity expansion depends on the chassis configuration. Consult the APC Galaxy VS platform documentation for frame-level scalability details.

James Everett

The GVSUPS10KR0B5FS is one of those SKUs that simplifies a procurement conversation that would otherwise involve four separate line items — base UPS, redundancy module, modular PDU, and a service PO. The N+1 power module architecture is the spec I'd lead with when justifying this over a simpler single-module unit: you get online double-conversion protection at 10KW/208V with the ability to pull a module under load, which is the difference between a planned maintenance window and an emergency outage.

Technical Highlights:

• N+1 Redundancy: One additional power module beyond load requirement — module-level fault tolerance without a second UPS frame, which matters when floor space and budget both constrain the design.
• 10KW / 208V Rating: Positions this in the mid-range rack protection tier — appropriate for a densely loaded single cabinet or a lightly loaded two-cabinet row without stepping up to a larger three-phase infrastructure frame.
• Bundled Start-Up Service: Factory commissioning is included in the SKU price, not a separate services PO. For facilities without in-house UPS commissioning expertise, this removes a common gap between delivery and warranty activation.

Deployment Considerations:

• The 5-slot modular PDU gives output flexibility, but confirm your required receptacle module types with APC pre-sales before ordering — the slots need to be populated with the correct output modules for your specific load devices.
• 208V input is single-configuration; if your facility runs 480V input distribution, this unit does not fit without a step-down transformer — verify site electrical infrastructure before specifying.

The GVSUPS10KR0B5FS is a strong fit for a network operations center or security command center build-out where the project budget needs to bundle UPS hardware, output distribution, and commissioning into a single purchase order without separate service coordination.
