APC by Schneider Electric Galaxy vs 9AH Smart Modular Long-life High Capacity Battery - GVSBTH4LL

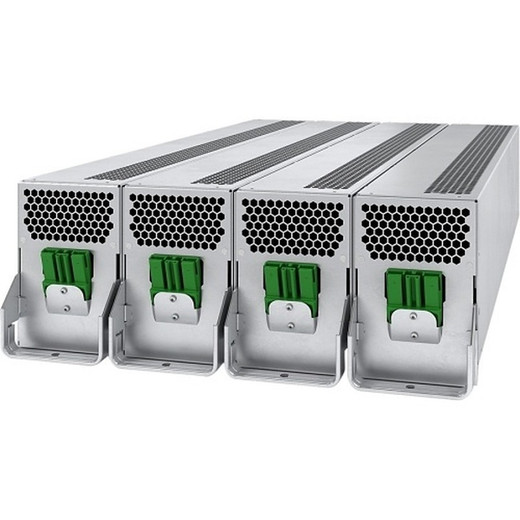

APC by Schneider Electric GVSBTH4LL Galaxy VS Smart Modular Long-Life High Capacity Battery Module

Overview

The APC by Schneider Electric GVSBTH4LL is a high-capacity VRLA battery module engineered specifically for Galaxy VS uninterruptible power supply systems. Delivering 4,320 VAh at 120 V, this module is the correct choice when a Galaxy VS installation requires extended runtime beyond what the standard internal battery provides — think data center rows, critical network closets, or surveillance infrastructure where even a brief power loss means lost footage, corrupted recordings, or dropped access control events.

At 251.3 lb (114 kg) net weight, the GVSBTH4LL is a substantial piece of hardware. Floor load capacity and logistics planning are non-negotiable parts of the deployment conversation before this module ships to site. The packaged weight reaches 309.7 lb (140.5 kg), so coordinate freight handling and staging access well in advance.

Key Features

• 4,320 VAh Capacity at 120 V: This is the spec that drives the runtime math. With 4,320 VAh available, a Galaxy VS system under a partial load can sustain operations through extended utility outages — far beyond what internal batteries alone can cover. Size this against your actual load profile and target runtime window, not a worst-case nameplate number.
• VRLA (Valve-Regulated Lead-Acid) Chemistry: VRLA batteries require no routine water maintenance and can be installed in enclosed equipment rooms without special ventilation provisions that flooded-cell chemistries demand. For battery closets adjacent to server or camera head-end rooms, this matters for both safety compliance and operational simplicity.
• Galaxy VS Family Compatibility: The GVSBTH4LL is purpose-built for the Galaxy VS range. Compatibility is not a guessing game — if the UPS is a Galaxy VS, this module integrates as a matched, tested component. Mixing non-native battery modules in high-capacity UPS systems is a reliability risk; this eliminates that concern.
• Modular Architecture: The modular design means capacity can be scaled by adding battery modules rather than replacing the entire UPS. For facilities that expect load growth — additional camera streams, expanded access control panels, added network infrastructure — this is a meaningful operational advantage over monolithic battery systems.
• Long-Life Design: Designated as a long-life module, this battery is engineered for extended service intervals relative to standard VRLA alternatives. Fewer replacement cycles reduce both direct hardware cost and the labor burden of scheduled battery swaps in live equipment rooms.
• 6.18-Inch Form Factor: At 6.18 in (15.7 cm) in the critical dimension, verify rack or enclosure clearance before ordering. Galaxy VS systems are sized to accept this module, but confirm the specific chassis configuration — available bays, cable routing, and floor weight distribution — with your facilities team during pre-installation planning.

Integration and Compatibility

The GVSBTH4LL integrates exclusively with APC by Schneider Electric Galaxy VS UPS systems. It is not a universal battery module. If your installation involves a different Galaxy series (Galaxy VX, Galaxy 5500, or other variants), verify the correct battery module part number before purchasing — APC battery modules are family-specific and cross-compatibility is not assumed.

For facilities running mixed uninterruptible power supply infrastructure, this module slots into the Galaxy VS's battery management architecture, which handles state-of-health monitoring, charge management, and runtime estimation through the UPS's native intelligence. No separate battery management controller is required.

If your critical load includes network video recorders, PoE switches feeding IP cameras, or access control servers, pairing the Galaxy VS with the GVSBTH4LL provides the runtime depth that a power protection strategy for 24/7 security infrastructure actually requires. A single standard internal battery is rarely sufficient for mission-critical surveillance continuity during a multi-hour outage.

Consult your UPS battery and accessory selection against verified Galaxy VS installation documentation to confirm the maximum number of external battery modules your specific Galaxy VS chassis supports before ordering multiple units.

Frequently Asked Questions

Q: Is the GVSBTH4LL compatible with Galaxy VS UPS systems only, or does it work with other APC Galaxy series units?

A: The GVSBTH4LL is designed specifically for the Galaxy VS range. Compatibility with other Galaxy series (such as the Galaxy VX or Galaxy 5500) is not confirmed by the available specification data — verify the correct battery module part number for your specific UPS model before ordering.

Q: What is the battery voltage and capacity of the GVSBTH4LL?

A: The GVSBTH4LL operates at 120 V with a capacity of 4,320 VAh, making it a high-capacity module suited for extended runtime requirements on Galaxy VS installations.

Q: How much does the GVSBTH4LL weigh, and what do I need to know for installation?

A: The net weight is 251.3 lb (114 kg); the packaged shipping weight is 309.7 lb (140.5 kg). Floor load capacity, freight handling logistics, and equipment room access must all be evaluated before installation. This is not a module that can be deployed without pre-installation site planning.

Q: Does the GVSBTH4LL require maintenance like adding water, or is it sealed?

A: It uses VRLA (Valve-Regulated Lead-Acid) technology, which is sealed and maintenance-free. No routine water replenishment is required, and it can be installed in enclosed equipment rooms without the special ventilation requirements associated with flooded-cell battery chemistries.

Q: Can I add multiple GVSBTH4LL modules to a single Galaxy VS UPS to extend runtime further?

A: The Galaxy VS platform supports a modular battery architecture, and the GVSBTH4LL is designed as part of that scalable system. However, the maximum number of battery modules supported depends on the specific Galaxy VS chassis model. Verify the supported module count in your Galaxy VS installation documentation before ordering additional units.

Q: What is the physical dimension of the GVSBTH4LL?

A: The critical dimension is 6.18 in (15.7 cm). Confirm available bay clearance and physical access in your Galaxy VS enclosure before installation.

Eden Phillips

The GVSBTH4LL is the battery module I specify when a Galaxy VS installation has a runtime gap that internal batteries cannot close. At 4,320 VAh and 120 V, this module meaningfully extends the math on how long a Galaxy VS system can carry a real security or data load — not just the UPS nameplate, but the actual NVRs, switches, and access control servers behind it. If you're sizing a critical infrastructure room and the internal battery gives you 10 minutes at full load, this module is how you get to 45 minutes or more, depending on your actual draw.

Technical Highlights:

• 4,320 VAh at 120 V: The capacity figure that drives every runtime calculation. Pair this against your actual facility load — not the UPS maximum — to get an honest runtime estimate before committing to a module count.
• VRLA Chemistry: Sealed, no-maintenance construction means this module can live in the same room as active equipment without ventilation modifications. That matters in existing equipment rooms where adding exhaust infrastructure is not practical.
• 251.3 lb Net Weight: This is the spec that catches integrators off-guard. At 114 kg, floor load assessment and proper lift equipment are required, not optional. Budget for freight coordination on every install — the 309.7 lb packaged weight means standard residential-style delivery is not appropriate for this module.

Deployment Considerations:

• Confirm the number of external battery module bays available on your specific Galaxy VS chassis before ordering. The modular architecture supports expansion, but the chassis imposes a hard ceiling on connected modules — exceeding it is not a configuration option, it is an incompatibility.
• The 6.18 in critical dimension needs to be checked against available bay clearance in the installed Galaxy VS enclosure. Do not assume dimensional fit from the UPS family name alone — verify against the chassis installation manual for your exact Galaxy VS model.

For a large-format surveillance head-end or a network operations center where a utility outage lasting more than 15–20 minutes would result in recording gaps or dropped access events, the GVSBTH4LL paired with a Galaxy VS is a deliberate, well-matched combination — provided the site assessment on floor load and module bay count is completed before the purchase order is placed.
