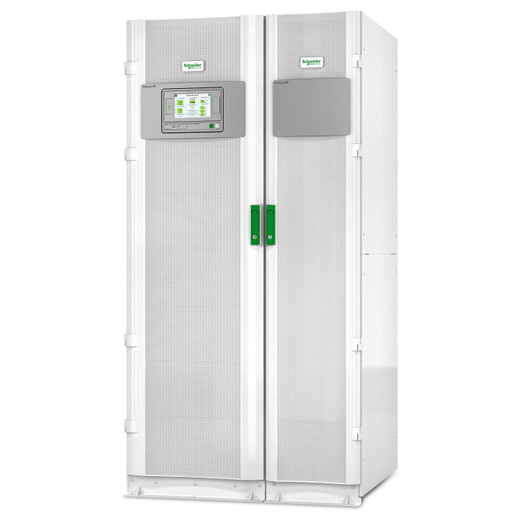

APC by Schneider Electric Galaxy VM 160 KVA Additional UPS for 1+1 480-480 V 65KAIC - GVMRB160KG65S

APC by Schneider Electric GVMRB160KG65S Galaxy VM 160 KVA Redundant UPS Module

Overview

The GVMRB160KG65S is the additional UPS unit required to complete a 1+1 parallel-redundant Galaxy VM configuration at 160 KVA, operating on a 480-480V input/output architecture with a 65KAIC short-circuit current rating. In a 1+1 topology, this second unit mirrors the primary — if one module fails or requires maintenance, the other carries the full critical load without interruption. That redundancy model is the standard for data centers, healthcare facilities, and industrial environments where a single UPS failure cannot be tolerated.

The Galaxy VM platform is APC by Schneider Electric's high-power three-phase UPS line aimed at large commercial and industrial critical power installations. The 480V input and output voltage matches common North American large-scale distribution infrastructure, avoiding step-down transformer costs when powering 480V-rated IT or industrial equipment directly. The 65KAIC fault current rating indicates the unit is engineered for installation in electrical environments with high available fault current — typical of large commercial facilities served by utility feeds through main distribution panels with substantial short-circuit capacity.

This SKU, GVMRB160KG65S, is specifically the redundant module — not a standalone UPS. It is purchased alongside the primary Galaxy VM 160 KVA base unit to form the complete 1+1 system. Sizing, runtime curves, battery configuration, and bypass specifications are determined at the system level in conjunction with APC's Galaxy VM platform documentation and pre-sales engineering engagement.

Key Considerations Before Ordering

• 1+1 Redundancy Architecture: This unit only functions as part of a paired Galaxy VM 160 KVA system. Purchasing it without the primary base unit results in an incomplete, non-operational configuration — verify your system BOM before ordering.
• 480-480V Operation: Input and output are both 480V three-phase. Confirm your facility's distribution voltage and downstream load voltage match before specifying — step-up or step-down transformers add cost and complexity if voltages differ.
• 65KAIC Fault Rating: Suitable for high-fault-current commercial distribution environments. This rating affects upstream overcurrent protection device (OCPD) coordination — involve your electrical engineer in the protection scheme design.
• Critical Load Sizing: At 160 KVA per module, the 1+1 pair protects loads up to 160 KVA with full N+1 redundancy. Loads exceeding this require a different Galaxy VM capacity tier.

Frequently Asked Questions

Q: Can the GVMRB160KG65S operate as a standalone UPS?

A: No. This SKU is specifically the additional unit for a 1+1 redundant Galaxy VM 160 KVA system. It requires pairing with the corresponding primary Galaxy VM base unit to function.

Q: What voltage does the GVMRB160KG65S support?

A: The unit operates at 480V input and 480V output, three-phase. Confirm your facility distribution and load voltages match this specification before ordering.

Q: What does the 65KAIC rating mean for installation?

A: The 65KAIC (kiloampere interrupting capacity) rating indicates the unit is designed for electrical environments with up to 65,000 amperes of available fault current. This affects how upstream overcurrent protective devices must be selected and coordinated — a licensed electrical engineer should review the protection scheme.

Q: What load capacity does the 1+1 system protect?

A: In a 1+1 configuration with two 160 KVA Galaxy VM units, the system protects critical loads up to 160 KVA with full module-level redundancy — one unit can fail or be taken offline for service while the other sustains the entire load.

Ted Perry

The GVMRB160KG65S is the unit integrators often overlook until a project is deep into design — it's not the primary UPS, it's the redundancy half of the Galaxy VM 1+1 pair. Without it, you have a single-point-of-failure 160 KVA UPS. With it, you have a system that can lose either module without dropping the load. That distinction matters enormously in healthcare, colocation, and 24/7 manufacturing environments where planned UPS maintenance windows are a scheduling nightmare.

Technical Highlights:

• 1+1 Parallel Redundancy: Two 160 KVA modules share the load; either can carry 100% of the protected load independently — true hot-standby redundancy, not load-sharing that degrades on a failure.
• 480-480V Architecture: Direct 480V in/out eliminates the step-down transformer often required at lower-voltage UPS tiers, reducing installation footprint and transformer losses in large North American facilities.
• 65KAIC Fault Rating: Engineered for high-fault-current commercial distribution panels — this rating is what allows the unit to be installed close to the main switchgear without requiring additional current-limiting fusing in many configurations.

Deployment Considerations:

• Verify system BOM alignment: this SKU ships as the additional/redundant module only. The primary Galaxy VM 160 KVA base unit is a separate line item — confirm both are on the purchase order before the project hits the field.
• Protection coordination is the integrator's responsibility: the 65KAIC rating sets the ceiling, but upstream OCPD selection, conductor sizing, and AIC coordination must be engineered to the specific facility's fault current profile — do not treat the rating as a pass/fail checklist item.

This unit is the right call for critical facility projects — data centers, hospital power distribution, and large industrial controls infrastructure — where the cost of a redundant module is trivially small compared to the cost of a single unplanned outage event.
