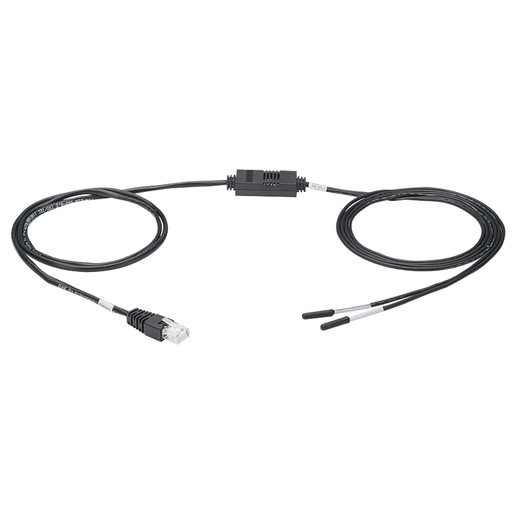

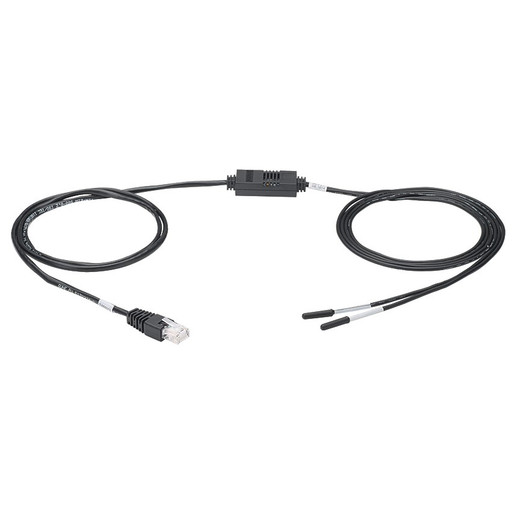

Panduit EC001 3-Temperature and Humidity Sensor Kit
The Panduit EC001 delivers granular environmental monitoring for mission-critical rack infrastructure by tracking temperature at three distinct elevations—top, middle, and bottom—plus humidity at mid-rack level. Designed for direct integration with Panduit G5, G6, and EL2P intelligent PDUs and UPS systems, this compact sensor kit addresses thermal stratification and moisture control challenges that plague high-density server and network equipment deployments. The 6.6-foot (2m) cable provides flexible placement within 42U racks while the low-profile 1.23" × 0.70" × 0.40" form factor mounts without consuming valuable rack space.
Key Features
- Three independent temperature sensors monitor top, middle, and bottom rack zones to detect thermal stratification and cooling inefficiencies
- Integrated humidity sensor at mid-rack elevation tracks moisture levels critical for electrostatic discharge prevention and equipment longevity
- Native integration with Panduit Generation 5, Generation 6, and EL2P intelligent PDU and UPS platforms via single-cable connection
- 6.6-foot (2m) sensor cable supports vertical and horizontal PDU configurations in standard 42U enclosures
- Compact 44mm × 21mm × 11mm sensor head fits tight spaces between equipment without airflow obstruction
- Single package deployment—one kit provides complete four-point environmental monitoring per rack
- Direct replacement for APC AP9335TH in multi-vendor data center environments
Thermal stratification within enclosed racks frequently creates 15–25°F differentials between top and bottom mounting positions, causing premature failure of heat-sensitive components like power supplies, storage drives, and network switch ASICs. The EC001's three-sensor topology captures this gradient by sampling at equipment intake zones (bottom), mid-rack processing zones (middle), and exhaust zones (top). When paired with Panduit intelligent PDUs, the resulting data enables threshold-based alerting, SNMP trap generation to network management systems, and integration with DCIM platforms for capacity planning. The humidity sensor operates in the 10–90% RH range typical of ASHRAE TC 9.9 guidelines, providing early warning of condensation risk during chiller failures or excessive dryness that elevates ESD events. The sensor interfaces directly with the RJ-45 environmental ports on G5/G6 iPDUs and compatible UPS models, auto-discovered by the embedded web interface without manual configuration.
Data centers and server rooms running blade chassis, high-wattage GPU compute nodes, or dense 10/25/40GbE switching fabrics generate localized hot spots that perimeter CRAC units cannot detect. Deploying the EC001 at the rack level—rather than relying on room-level building management sensors—gives facilities teams and IT operators real-time visibility into the microenvironments where equipment actually operates. The 2-meter cable length accommodates both vertical zero-U PDU installations along the rear posts and horizontal 1U/2U shelf-mount PDUs at top-of-rack positions, with sufficient slack to route through cable management arms or brush strips. For colocation providers and enterprise data centers maintaining PUE metrics, per-rack environmental logging supports granular chargeback models and validates that tenant SLAs for temperature and humidity are continuously met. The sensor's compatibility with Panduit's broader ecosystem—including SmartZone Cloud management and NetAccess software—extends monitoring data into centralized dashboards alongside power consumption, outlet control, and circuit protection status.
The EC001 integrates into Panduit's intelligent power distribution architecture without requiring separate licenses, gateway appliances, or proprietary monitoring software. Sensor data flows through the iPDU or UPS's existing Ethernet management connection, eliminating the need for additional network drops or out-of-band monitoring infrastructure. For installations replacing legacy APC infrastructure, the EC001 serves as a drop-in alternative to the AP9335TH, maintaining four-point monitoring coverage during forklift upgrades or mixed-vendor rack standardization projects. Each kit ships as a complete assembly—sensor head, cable, and mounting hardware—ready for deployment in new builds or retrofit installations where environmental blind spots have led to thermal-related downtime.
