Panduit FSDP91AY 144-Fiber OS2 Plenum Indoor Distribution Cable
Overview

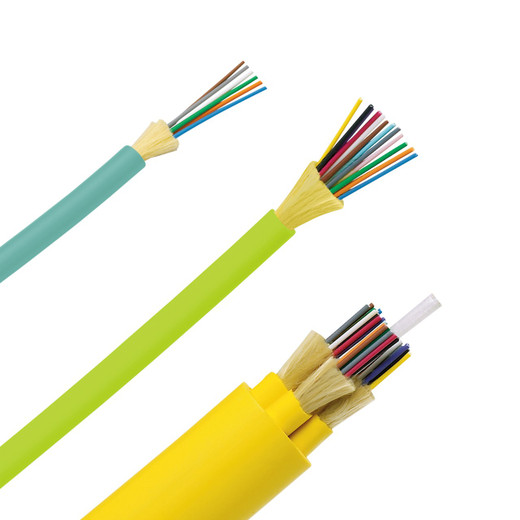

The Panduit FSDP91AY is a 144-fiber OS2 singlemode indoor distribution cable engineered for high-density backbone runs in commercial and enterprise buildings. Carrying the Opti-Core® sub-brand, this bulk cable ships in yellow — the industry-standard OS2 jacket color — making it instantly identifiable in fiber trays, splice enclosures, and patch panels during moves, adds, and changes. The 900µm tight-buffer construction and Plenum (OFNP) flammability rating position it for air-handling ceiling and plenum spaces where building codes require low-smoke, flame-retardant pathways.
If you are sizing a large campus riser, a structured cabling backbone for a multi-floor enterprise, or a high-port-count data center interconnect, the 144-fiber count per run minimizes conduit fill while maximizing route capacity. One pull replaces what would otherwise require four or more smaller cable runs — a significant labor and conduit savings over the life of the infrastructure.
Key Features
- OS2 Singlemode — 9µm Core Diameter: OS2 singlemode fiber supports transmission distances well beyond multimode's limits — routinely deployed for 10G, 40G, and 100G links spanning hundreds of meters to several kilometers with appropriate transceivers. If your backbone connects buildings or floors separated by long distances, OS2 is the correct fiber type; multimode would impose distance penalties at those speeds.
- 144-Fiber Count: Pulling 144 individual strands in a single cable jacket keeps conduit fill low and pull labor to one event. For a 96-port patch panel installation, you have capacity to spare for future growth without a second pull — a meaningful advantage when conduit access is disruptive or expensive to re-open.
- Plenum (OFNP) Rating: OFNP certification means this cable meets the flammability and smoke requirements mandated by the NEC for air-handling plenum spaces. Substituting riser-rated cable in a plenum ceiling is a code violation; the FSDP91AY eliminates that risk. If your routing stays entirely within enclosed conduit, riser-rated alternatives may cost less — but most commercial ceiling runs encounter at least some plenum exposure.
- 900µm Tight-Buffer Construction: Each fiber is individually buffered to 900µm, making the cable direct-connectorizable without additional furcation tubing at the termination point. This simplifies field termination — technicians can attach LC or SC connectors directly — compared to loose-tube designs that require gel cleaning and separate buffer tubes. For distribution-style runs feeding multiple drops, tight-buffer is the standard approach.
- Yellow Jacket — OS2 Identification: The yellow outer jacket follows the TIA-598 color coding standard for OS2 singlemode fiber. In a mixed-fiber environment where OS1, OM3, or OM4 cables also run, yellow is your immediate visual cue during troubleshooting or reconfiguration. Mis-patching singlemode and multimode is a common installer error; color compliance reduces that risk at the panel.
- Opti-Core® Product Line: Panduit's Panduit fiber optic solutions under the Opti-Core® label are built to meet TIA-568 transmission standards, integrating with Panduit's termination hardware, enclosures, and fiber optic cable systems as a coordinated infrastructure platform. This matters when you need to specify a single manufacturer's solution for a warranty-backed structured cabling system.
Integration & Compatibility
The FSDP91AY is a bulk distribution cable — it is the raw pathway, not a terminated assembly. It requires field or factory termination with appropriate OS2-compatible connectors (LC, SC, ST, or others depending on equipment port type). Before specifying, confirm your transceivers and active equipment are OS2-compatible; singlemode fiber paired with multimode-optimized transceivers will not perform correctly. The 900µm buffer diameter is compatible with standard single-fiber and multi-fiber termination tools designed for tight-buffer cable.
For structured cabling deployments, pair this cable with matching fiber optic enclosures and patch panels rated for OS2 to maintain a consistent insertion loss budget across the link. When planning conduit fill, account for the 144-fiber jacket diameter — consult the Panduit product page for the exact outside diameter before pulling through existing conduit. Review your fiber optic infrastructure planning resources to confirm bend radius minimums are met at every cabinet entrance and tray bend point, as singlemode fiber is less tolerant of sharp bends than multimode.
This cable is suited for integration into building management systems, IP surveillance backbones, enterprise LAN distribution, and any application where a high-fiber-count OS2 singlemode plenum backbone is required.
Frequently Asked Questions
Q: What is the fiber type and core diameter of the FSDP91AY?
A: The FSDP91AY uses OS2 singlemode fiber with a 9µm core diameter. OS2 is designed for long-distance, high-bandwidth applications and is compatible with singlemode transceivers operating at 1310nm and 1550nm wavelengths.
Q: Is the FSDP91AY suitable for installation in plenum ceiling spaces?
A: Yes. The FSDP91AY carries a Plenum (OFNP) flammability rating, meeting NEC requirements for installation in air-handling plenum spaces without conduit. This makes it appropriate for open-ceiling commercial environments where code compliance is required.
Q: Can this cable be terminated in the field, or does it require factory termination?
A: The 900µm tight-buffer construction is designed for field termination. Individual fibers can be directly connectorized with standard LC, SC, or other OS2-compatible connectors without additional furcation tubing, simplifying on-site installation compared to loose-tube gel-filled designs.
Q: What does the yellow jacket color indicate?
A: Yellow is the TIA-598 standard jacket color for OS2 singlemode fiber. In multi-fiber environments, the yellow color immediately distinguishes this cable from multimode cables (aqua for OM3/OM4, orange for OM1/OM2), reducing mis-patching errors during installation and maintenance.
Q: How does the 144-fiber count benefit a large enterprise deployment?
A: Pulling 144 fibers in a single cable run minimizes conduit fill and reduces installation labor to a single pull event. For deployments requiring 96 or more active fiber ports, a single FSDP91AY run provides full capacity plus headroom for future growth — avoiding a costly second conduit pull later.
Q: Is the FSDP91AY sold as a bulk cable or as a pre-terminated assembly?
A: The FSDP91AY is a bulk indoor distribution cable sold per unit for field or factory termination. It is not a pre-terminated assembly. Specify connectors, enclosures, and patch panels separately based on your equipment port requirements.
The FSDP91AY is the cable I reach for when a project calls for a high-density OS2 singlemode backbone in a code-sensitive building environment. The combination of 144 fibers, 900µm tight-buffer construction, and OFNP plenum rating in a single yellow jacket covers the three things that matter most on a commercial structured cabling job: fiber count, termination flexibility, and code compliance — without needing separate products to address each.
Technical Highlights:
- 144-Fiber OS2 Count: One pull handles what four 36-fiber pulls would — that's three fewer conduit entries, three fewer pull events, and a dramatic reduction in termination labor at both ends. On a multi-floor riser with restricted core penetrations, this counts.
- 900µm Tight-Buffer per Fiber: Direct connectorization without furcation kits. On a 144-fiber termination, avoiding furcation tubing on every strand saves meaningful time and reduces the number of consumables to manage on-site.
- Plenum (OFNP) Rating: No conduit required in air-handling ceilings. This is a code requirement, not a preference — if your ceiling is a plenum return, OFNP is the only compliant option. Substituting riser-rated cable here is a liability issue, not just an inspection risk.
Deployment Considerations:
- Confirm your transceiver inventory before pulling this cable. OS2 singlemode paired with multimode-optimized SFPs will not work — verify every active port is singlemode-capable before the cable is in the wall.
- The FSDP91AY is bulk cable — budget time for termination. On a 144-fiber count, even experienced field technicians should plan termination as a separate scheduled task, not an afterthought at the end of a pull day.
The FSDP91AY is the right specification for enterprise campus backbone installations, multi-floor commercial builds, and IP surveillance infrastructure where singlemode reach and plenum compliance are both non-negotiable — specifically where conduit real estate is limited and maximizing fiber density per pull is a project priority.
