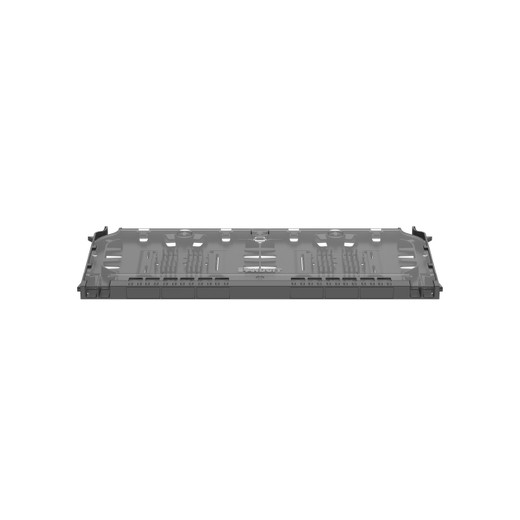

Panduit FDSN-24 Front-Access 24-Fiber FlexCore Splice Cassette
Overview
The Panduit FDSN-24 is a front-access splice cassette engineered for the FlexCore ODF (Optical Distribution Frame) and OSF platform, handling 24 fibers in a polycarbonate housing that measures just 0.46 inches tall — thin enough to stack high-density trays without eating rack space. Each cassette ships with a splice ribbon and individual splice protectors, so you are not hunting for consumables mid-installation. If you are building or extending a structured fiber plant that needs documented standards compliance, the FDSN-24 belongs on your short list.
Key Features
- 24-Fiber Capacity per Cassette: A single FDSN-24 organizes 24 individual fiber splices in one modular unit. In a high-density ODF chassis, that means you can scale splice capacity in clean 24-fiber increments — no half-populated trays, no wasted port real estate.
- Front-Access Design: Splices are reached from the front of the frame without pulling the cassette or disturbing adjacent trays. That matters in live data-center environments where touching the wrong tray can take down traffic — front access keeps remediation surgical.
- FlexCore ODF/OSF Platform Integration: The FDSN-24 is purpose-built for the Panduit FlexCore™ system. Cassettes slide and lock into FlexCore ODF/OSF enclosures, maintaining consistent fiber management geometry. Mixing cassette types across vendors in the same chassis risks misalignment and bend-radius violations — stay within the FlexCore ecosystem for predictable results.
- Polycarbonate Construction: The housing is polycarbonate, not ABS — that means higher impact resistance and better dimensional stability under the temperature cycling common in outside-plant transition enclosures and data-center hot aisles. Physical durability matters when cassettes get pulled and re-seated dozens of times over a system's life.
- 0.46-Inch Profile (11.7 mm): At under half an inch tall, the FDSN-24 is designed for maximum tray density. If you are planning a high-count fiber plant — say, 288 or 576 fibers in a single frame — this low-profile form factor is what makes the math work without overprovisioning rack units.
- Includes Splice Ribbon and Discrete Splice Protectors: The cassette ships with the ribbon and protectors included, eliminating a common line-item oversight on purchase orders. Discrete splice protectors (as opposed to mass-fusion heat-shrink sleeves) allow individual fiber access after splicing — useful if one fiber in a ribbon needs re-work without disturbing the rest.
- RoHS and Multi-Standard Compliance: The FDSN-24 meets ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5 (FOCIS-5), TIA-604-10 (FOCIS-10), and RoHS 2002/95/CE, and is compatible with IEEE 802.3 and ANSI T11.2 (Fibre Channel). For enterprise and data-center structured cabling projects that require as-built documentation and compliance sign-off, these are the standards your AHJ and network architect will ask for — the FDSN-24 checks them in a single part number.
- Sold as Single Unit, Carton of 10 Available: Package quantity is 1, with a carton quantity of 10 — practical for both incremental adds and full-frame population orders. Ordering by the carton reduces per-unit shipping handling on large deployments.
Integration and Compatibility
The FDSN-24 (often searched as FDSN 24) is rated for the FlexCore ODF and OSF enclosures within Panduit's Panduit fiber infrastructure line. If you are spec'ing a new fiber optic cassette system or adding splice capacity to an existing FlexCore frame, verify the specific ODF chassis model accepts the FDSN splice cassette form factor — Panduit's FlexCore line includes both connector cassettes and splice cassettes, and they are not interchangeable. The standards compliance (TIA-604-5/FOCIS-5 and TIA-604-10/FOCIS-10) ensures interoperability with standard SC and LC ferrule geometry for connector panels mounted alongside splice trays in the same enclosure.
The IEEE 802.3 and ANSI T11.2 (Fibre Channel) compatibility notes are relevant for data-center interconnects where the same fiber plant carries both Ethernet and SAN traffic — common in converged enterprise cores where fiber optic panels and enclosures need to support mixed-protocol infrastructure. If your project involves OM4 or OS2 fiber for a high-density switching or storage fabric backbone, the FDSN-24's standards pedigree gives the documentation trail the project will need at sign-off.
For projects requiring a complete structured cabling solution — patch panels, enclosures, cable management — the FlexCore ecosystem offers companion components that maintain the same compliance baseline across the full fiber pathway.
Frequently Asked Questions
Q: What platform is the FDSN-24 designed for?
A: The FDSN-24 is purpose-built for the Panduit FlexCore ODF (Optical Distribution Frame) and OSF platform. It is not a universal cassette — verify your enclosure model accepts the FlexCore splice cassette form factor before ordering.
Q: How many fibers does the FDSN-24 accommodate?
A: The FDSN-24 handles 24 fibers per cassette. Each cassette includes a splice ribbon and discrete splice protectors for all 24 fibers.
Q: What standards does the FDSN-24 comply with?
A: The FDSN-24 meets ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5 (FOCIS-5), TIA-604-10 (FOCIS-10), and RoHS 2002/95/CE. It is also compatible with IEEE 802.3 and ANSI T11.2 (Fibre Channel).
Q: Does the FDSN-24 include splice protectors and ribbon?
A: Yes. Each FDSN-24 ships with one splice ribbon and discrete splice protectors included in the package.
Q: What is the cassette's profile height, and does it matter for rack planning?
A: The FDSN-24 is 0.46 inches (11.7 mm) tall. This low-profile dimension is significant for high-density ODF builds — it allows more splice cassettes per rack unit in a FlexCore enclosure compared to taller tray formats.
Q: Is the FDSN-24 sold individually or only by the carton?
A: The FDSN-24 is sold as a single unit (package quantity of 1). A carton of 10 is available for larger deployments.
The FDSN-24 is the splice cassette I reach for when a FlexCore ODF build needs tight rack economics alongside proper standards documentation. At 0.46 inches tall and 11.53 inches wide, it fits the FlexCore form factor exactly — and the fact that the ribbon and discrete splice protectors are included in the box means one fewer line item to manage on the BOM.
Technical Highlights:
- 24-Fiber Per-Cassette Density: Organizing 24 splices per cassette in an 11.7 mm profile gives you a clean scaling unit — add cassettes in 24-fiber steps without disturbing populated trays or reconfiguring cable management.
- Discrete Splice Protectors: Unlike mass-fusion heat-shrink approaches, discrete protectors let you access and re-work a single fiber without disturbing the other 23. That is a real advantage on long-term infrastructure where individual fiber faults are inevitable.
- Standards Stack — TIA-604-5/10 + ISO/IEC 11801: This compliance profile satisfies both the FOCIS-5 (SC) and FOCIS-10 (LC) connector interface standards alongside the horizontal cabling standard — relevant when the same splice frame terminates both SC legacy runs and LC high-density panels.
Deployment Considerations:
- The FDSN-24 is a FlexCore-specific part. Before ordering for a retrofit, confirm the existing ODF chassis is a FlexCore ODF or OSF model — physically similar third-party frames will not accept this cassette's mounting geometry.
- The cassette profile is 0.46 inches, but account for the full ODF tray pitch when planning density — the enclosure's tray spacing, not just the cassette height, determines how many FDSN-24 units fit per rack unit.
This cassette is the right call for enterprise data-center or campus MDF/IDF fiber plant builds on the FlexCore platform where the project requires documented TIA and ISO compliance and the team wants front-access serviceability without pulling trays during live maintenance windows.
