Middle Atlantic FRM Dstand 66WX75H Fltwall D6675 D8 WHT - FM-DS-6675FW-JD8W

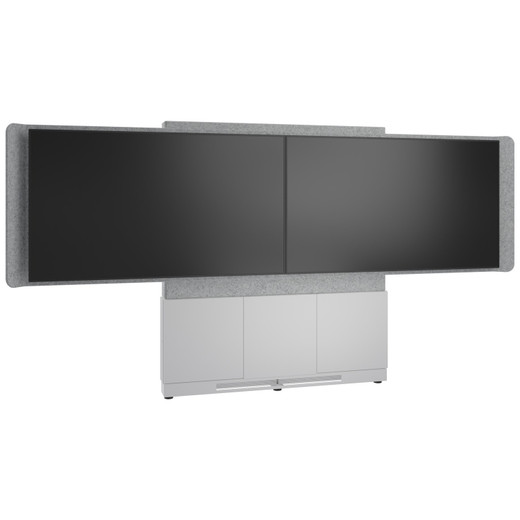

Middle Atlantic FM-DS-6675FW-JD8W Forum Floor-to-Wall Display Stand with Integrated Rack

Overview

The FM-DS-6675FW-JD8W is a floor-to-wall display stand from the Middle Atlantic Forum collaboration furniture line, engineered for control rooms, security operations centers, and enterprise briefing spaces that need two large-format displays and active equipment in a single, wall-anchored structure. At 66 inches wide and 74.5 inches tall, the unit spans two displays up to 75 inches each and integrates a 4RU rack section for AV gear or network equipment — eliminating a separate equipment cabinet. The Designer White finish is specified for federal and government operations environments where a clean, professional aesthetic is required alongside commercial-grade AV infrastructure.

Compatibility

Designed for the Middle Atlantic Forum collaboration suite system, the FM-DS-6675FW-JD8W accepts flat-panel displays in the 66–75 inch size range with mounting depths between 7.78 and 16.78 inches — covering the majority of current commercial-grade 4K displays from manufacturers such as Samsung, LG, and NEC in that size class. The 4RU rack section uses standard 10-32 rack rail threading, making it compatible with any 10-32 rack-mount equipment including AV receivers, KVM switches, network switches, and network video recorders. For larger or smaller display configurations, Middle Atlantic offers additional Forum series variants with different widths and heights. Pair with a Middle Atlantic rack ecosystem for a fully coordinated installation.

Installation Notes

The floor-to-wall mounting style requires both floor and wall anchor points — wall structural capacity must accommodate a unit that ships at 318.25 lbs (144.4 kg) and carries up to 150 lbs per display bay plus 50 lbs per rack bay when loaded. Display mounting depth adjusts between 7.78 and 16.78 inches to accommodate varying panel chassis depths. The 3-bay configuration and 66-inch overall width require clear horizontal wall space and ceiling clearance for the 74.5-inch standing height. TAA compliant and sourced from US manufacturing operations, making it eligible for federal procurement vehicles. AV furniture and display mounting solutions from the Forum line are designed for planned, permanent installations — field modifications to the rail or frame structure are not supported.
