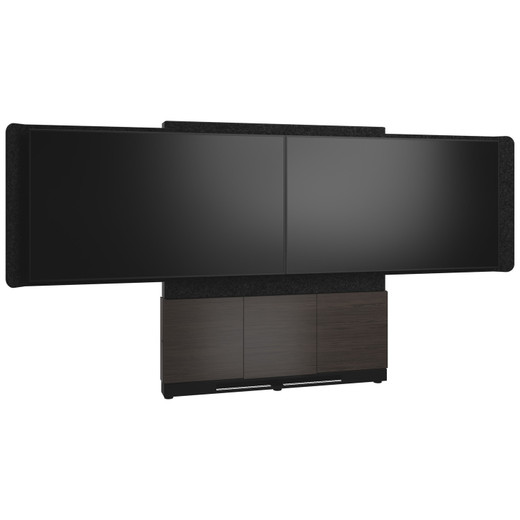

Middle Atlantic FM-DS-6675FW-HA3B Forum Collaboration Display Stand
Overview
The Middle Atlantic FM-DS-6675FW-HA3B is a floor-to-wall display stand from the Forum Collaboration Suite, built for control rooms, command centers, and collaboration spaces that need a structurally rigid, finished enclosure combining dual large-format displays with integrated rack capacity. At 66 inches wide and 74.5 inches tall with a 6-inch depth footprint, the FM-DS-6675FW-HA3B anchors to the floor and wall simultaneously — eliminating the freestanding tip-risk that matters in 24/7 operations environments. The Asian Night finish (black and charcoal gray) is a TAA-compliant configuration, sourced domestic (USA), making it eligible for federal procurement.
Compatibility
Designed for the Middle Atlantic Forum Collaboration Suite product family. Accepts two displays sized 56 to 65 inches each, with a maximum screen size of 65 inches — sized for large-format commercial panels common in surveillance and operations furniture deployments. Each display position carries up to 150 lbs (68 kg), supporting virtually all commercial displays in that size range. Mounting depth adjusts from 7.78 to 16.78 inches to accommodate varying panel chassis depths without adapter plates. The integrated rack section provides 4 RU of 10-32 threaded rail capacity across 3 bays, rated at 50 lbs per bay — sufficient for AV receivers, media players, or small network gear. Rail type is standard 10-32, compatible with the broad range of rack-mount equipment using that thread standard.
Installation Notes
The floor-to-wall mounting style requires both a solid floor anchor point and a structural wall attachment — this is not a freestanding unit and must be secured at both contact points before loading displays. Total product weight is 219 lbs (99.3 kg); shipping weight is 303.25 lbs (137.6 kg), so plan for a two-person minimum install crew and freight delivery. Materials include steel structure with HPL (acoustic felt/PET) and MDF panels — the acoustic felt lining reduces ambient noise reflection in enclosed control room environments. Verify wall stud or blocking location before final positioning, as the mounting depth range (7.78–16.78 in) affects how far the display face sits from the wall plane.
