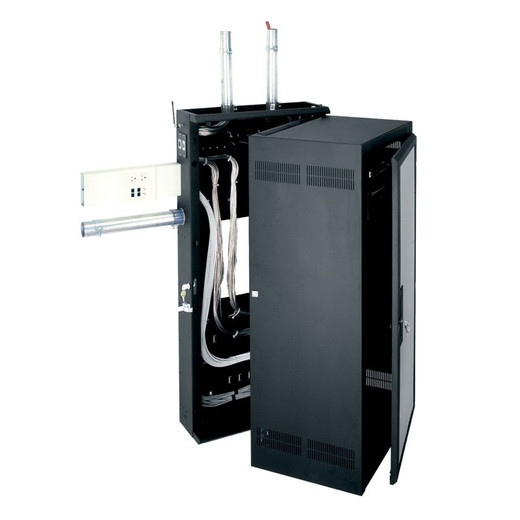

Middle Atlantic Forward 24U Rail DWR Pair - FWD-DWR-RR24

Middle Atlantic FWD-DWR-RR24 24U Forward Rackrail Pair for DWR and SR Series

The Middle Atlantic FWD-DWR-RR24 is a 24U forward rackrail pair designed specifically for DWR and SR series rack enclosures. At 42 inches (106.7 cm) tall and rated for 24 rack units, this steel rail set positions equipment at the front of the enclosure — the correct configuration when you need front-access rack mounting without pulling gear toward the center of the frame. If you are building out a DWR or SR enclosure and need to mount equipment flush to the front rail plane, this is the part that makes it work.

Overview

Forward rackrails serve a specific structural role: they shift the mounting plane toward the front of the enclosure, giving integrators clearance management options that center-mount rails do not provide. The FWD-DWR-RR24 is sold as a pair, so a single purchase covers both left and right rails for a complete 24U front-mount configuration. The steel construction with black e-coat finish matches the standard Middle Atlantic DWR and SR enclosure aesthetic and holds up in equipment room and server closet environments without surface degradation over time.

This rail is not a universal fit — it is engineered exclusively for DWR and SR series enclosures. If your enclosure is a different Middle Atlantic series or a third-party rack, this part will not align correctly. Verify your base enclosure series before ordering.

Key Features

• 24U capacity at 42 inches: The 24 rack unit height handles a full mid-size enclosure load — enough space for an NVR, patch panel, PoE switch stack, and access control hardware in a single bay. The 42-inch (106.7 cm) physical height aligns with standard 24U DWR and SR enclosure frames, so there is no trimming or adaptation required.
• Forward rackrail geometry: Positioning equipment at the front mounting plane rather than center improves airflow management behind mounted gear and makes front-panel access — cable connections, USB ports, drive bays — reachable without reaching into the enclosure. For integrators running frequent configuration changes or drive swaps, this matters on every service call.
• Sold as a pair: Both left and right rails are included in a single purchase. You are not ordering half a set and sourcing the second rail separately — the FWD-DWR-RR24 (often searched as FWD DWR RR24) ships as a complete matched pair, which matters for lead time and job site coordination.
• Steel construction with black e-coat finish: Steel rails carry rack loads without flex under the weight of dense network and security hardware. The black e-coat finish resists corrosion in equipment rooms where HVAC condensation or variable humidity is a factor, and it matches the standard DWR/SR enclosure color without visible mismatch.
• Series-specific fit for DWR and SR enclosures: Designed and dimensioned for Middle Atlantic DWR and SR base series only. This specificity is a reliability asset — the rail geometry, hole pattern, and mounting points are validated for this enclosure family, so you are not field-adapting a generic component.
• Lightweight at 5 lbs shipping weight: At approximately 5 lbs (2.3 kg) shipped, the rail pair adds negligible weight overhead to a rack build. Useful when shipping assembled enclosures to remote sites where total freight weight affects logistics cost.

Integration and Compatibility

The FWD-DWR-RR24 is engineered for use with Middle Atlantic DWR series and SR series enclosures. These are wall-mount and rack enclosure lines commonly deployed in security operations rooms, AV equipment bays, IT closets, and physical security head-end installations. The forward rail configuration is appropriate when equipment front panels need to be accessible from outside the enclosure or when rear cable management space needs to be maximized.

Verify your enclosure model against the DWR or SR base series designation before ordering. Middle Atlantic produces several enclosure families, and forward rail geometry is not interchangeable across series. If you are unsure of your enclosure series, the model label is typically on the top or side panel of the enclosure frame.

For integrators building out a complete Middle Atlantic rack system, this rail pair is one component of the broader rack enclosure configuration. Pair it with appropriate shelf, blank panel, and cable management accessories for a finished installation. If you are also selecting network video recorders or other security hardware to populate the enclosure, confirm equipment depth against the DWR or SR enclosure's internal clearance specifications.

Frequently Asked Questions

Q: Which enclosure series is the FWD-DWR-RR24 compatible with?

A: The FWD-DWR-RR24 is designed for Middle Atlantic DWR series and SR series enclosures only. It is not a universal rackrail and will not fit other Middle Atlantic enclosure families or third-party racks.

Q: Does the FWD-DWR-RR24 include both left and right rails?

A: Yes. The FWD-DWR-RR24 is sold as a pair — both the left and right forward rackrails are included in a single purchase, providing a complete 24U front-mount rail set.

Q: What is the rack unit capacity of the FWD-DWR-RR24?

A: The FWD-DWR-RR24 supports 24 rack units (24U). Its physical height is 42 inches (106.7 cm), matching the standard DWR and SR series 24U enclosure frame dimensions.

Q: What material and finish does the FWD-DWR-RR24 use?

A: The rails are constructed from steel with a black e-coat finish. This finish provides corrosion resistance and matches the standard DWR and SR enclosure color.

Q: What is the difference between a forward rackrail and a standard rackrail?

A: A forward rackrail positions equipment at the front mounting plane of the enclosure rather than at center depth. This improves front-panel accessibility and increases rear cable management clearance inside the enclosure.

Q: What is the shipping weight of the FWD-DWR-RR24?

A: The FWD-DWR-RR24 ships at approximately 5 lbs (2.3 kg), making it a lightweight addition to any rack build or freight shipment.

James Everett

The FWD-DWR-RR24 comes up regularly in physical security head-end builds where integrators are fitting NVRs, managed PoE switches, and access control panels into DWR or SR enclosures. The 24U forward rail geometry is the right call when front-panel access to equipment matters — particularly in managed service scenarios where a technician needs to reach USB or serial ports on a recorder without unracking the unit.

Technical Highlights:

• 24U / 42-inch height: Matches the DWR and SR series 24U enclosure frame exactly at 42 inches (106.7 cm) — no field modification, no shimming. The full 24U span gives you enough space to mount a multi-channel NVR, a PoE switch, patch panels, and still leave blank panel space for cable routing.
• Forward mounting plane: Moving the rail plane to the front of the enclosure is not cosmetic — it creates usable clearance behind equipment for cable dressing and air circulation, which matters in compact wall-mount enclosures where rear depth is constrained.
• Steel with e-coat finish: E-coat (electrocoat) is a more durable finish than powder coat for rack hardware in environments with humidity variation — equipment rooms near loading docks or mechanical spaces where condensation cycles are common. The black finish matches DWR/SR enclosure panels without a visible mismatch.

Deployment Considerations:

• Confirm your base enclosure is DWR or SR series before ordering. The forward rail hole pattern is specific to these enclosure families — it will not align with other Middle Atlantic series or generic EIA-310 third-party racks.
• This is a rail pair only — no shelf, cage nuts, or mounting hardware are included in the verified evidence. Plan your cage nut and accessory kit separately when staging the job.

The FWD-DWR-RR24 is the right part for a DWR or SR enclosure build in a physical security operations room or IT closet where front-panel serviceability is a recurring need — think multi-tenant commercial buildings or managed security service deployments where field technicians are swapping drives or connecting laptops to recorders on a regular basis.
