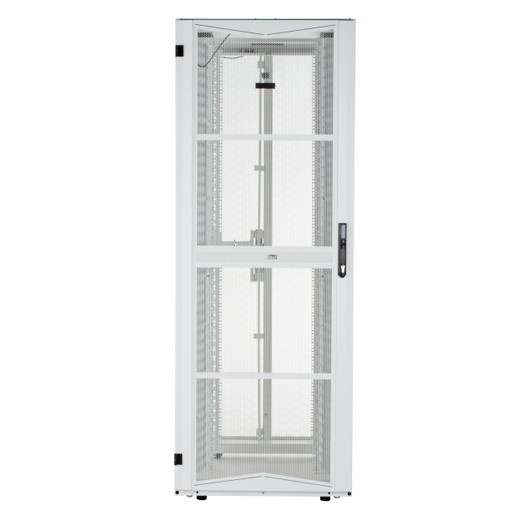

Panduit XG84512BS000L FlexFusion 45RU Network Cabinet with Brush Seal Top
The Panduit XG84512BS000L FlexFusion cabinet delivers 45 rack units of high-density mounting capacity engineered for mission-critical data center and telecommunications environments. Measuring 800mm wide by 1070mm deep, this steel-frame enclosure accommodates deep enterprise servers, blade chassis, UPS systems, and core networking equipment while maintaining strict airflow discipline through an integrated brush-seal top cap. With 2,250 lb dynamic and 3,000 lb static load ratings, the XG84512BS000L supports fully populated configurations of storage arrays, power distribution units, and high-wattage compute infrastructure without compromising structural integrity or thermal performance.
Key Features
- 45RU vertical mounting space compliant with EIA-310-E and IEC 60297 standards for universal equipment compatibility
- 800mm × 1070mm footprint provides clearance for deep servers, redundant power supplies, and rear cable management arms
- 2,250 lb (1,021 kg) dynamic load capacity and 3,000 lb (1,361 kg) static rating for fully populated blade and storage deployments
- Integrated top cap with brush seal enables organized cable routing while supporting hot aisle/cold aisle containment strategies
- Single hinged front door with multi-point locking mechanism and tool-less removal for rapid access during maintenance windows
- Heavy-gauge steel construction with black powder-coat finish resists corrosion in temperature-controlled and industrial environments
- UL 2416 listed for IT equipment safety and fire containment in commercial occupancies
- FlexFusion modular architecture allows field-installable side panels, blanking kits, and vertical cable managers without cabinet replacement
The XG84512BS000L employs heavy-gauge steel formed into a welded frame with reinforced corner posts and top/bottom crossmembers, distributing equipment loads evenly across the cabinet footprint and preventing mid-span sag under sustained weight. The 45RU vertical rails ship pre-installed with square-hole mounting patterns on 0.625" EIA spacing, accepting cage nuts, clip nuts, or toolless mounting hardware from any manufacturer. Adjustable mounting depth allows installers to position equipment flush with the front door plane or recessed for integrated KVM drawers and patch panels, while maintaining clearance for rear-mounted PDUs and horizontal cable managers. The single hinged front door uses a continuous piano hinge rated for 50,000 cycles, with a three-point locking system that engages top, middle, and bottom latching points to prevent door racking and maintain a uniform gasket seal. Removable door hinges enable complete door extraction in under 60 seconds without tools, critical for maneuvering oversized equipment through constrained data center aisles. The top cap integrates a full-width brush seal that accommodates up to 4" of bundled copper and fiber cabling while blocking vertical airflow bypass—a key failure mode in hot aisle containment systems where rising exhaust air recirculates into equipment intakes and drives inlet temperatures above ASHRAE-recommended limits. Grounding studs on all four corners and a continuous bonding strap along the rear frame meet NEC Article 250 and TIA-607-C requirements for low-impedance fault paths in AC power distribution systems.
Deploying the XG84512BS000L in a hot aisle/cold aisle configuration maximizes the thermal efficiency of precision cooling systems by preventing exhaust air from mixing with conditioned supply air. The 1070mm cabinet depth supports front-to-back airflow servers with rear-mounted heat exchangers, while the 800mm width accommodates dual power feeds and redundant network uplinks without inducing cable congestion at the top cap exit. High-density blade chassis—often exceeding 15 kW per cabinet—benefit from the brush-seal top, which reduces bypass airflow by up to 40% compared to open-top designs and allows CRAC units to operate at lower fan speeds and reduced compressor loads. In network core deployments, the 45RU height accommodates spine-and-leaf switch fabrics with room for out-of-band management switches, terminal servers, and optical distribution frames in the same enclosure, eliminating cross-cabinet cabling and reducing mean time to repair during failover events. Enterprise storage environments leverage the 3,000 lb static rating to support fully populated disk shelves and controller modules, with the single hinged door providing unobstructed access to failed drives without removing adjacent equipment. The FlexFusion modular ecosystem extends cabinet functionality through field-installable accessories: vertical cable managers with hinged covers route copper and fiber along the mounting rails without consuming U-space; blanking panels block unused rack openings to enforce airflow discipline; and split side panels allow mid-cabinet cable entry for underfloor or overhead cable tray systems. Integrators managing raised-floor data centers use the cabinet's leveling feet to achieve precise alignment with floor tile grids and maintain structural load distribution across subfloor pedestals rated for point loads.
Compliance with EIA-310-E ensures mounting hole patterns align with legacy and current-generation rack-mount equipment, while IEC 60297 certification confirms dimensional accuracy for international deployments mixing US and European hardware. UL 2416 listing addresses fire propagation, structural stability under seismic loading per NEBS GR-63-CORE Zone 4 criteria, and electrical safety for IT power distribution—mandatory for installations in healthcare, financial services, and government facilities operating under NFPA 75 and ASHRAE TC 9.9 thermal guidelines. The black powder-coat finish resists scratching during equipment installation and provides a professional appearance in customer-facing co-location environments, while the steel substrate grounds electromagnetic interference and shields sensitive electronics from external RFI. Panduit's FlexFusion platform integrates with their copper and fiber structured cabling systems, enabling end-to-end infrastructure designs where cabinets, cable managers, patch panels, and trunk assemblies share common mounting interfaces and color-coding schemes—reducing integration errors and simplifying adds/moves/changes during IT refresh cycles. The XG84512BS000L ships fully assembled with protective corner guards and arrives ready for equipment installation within 30 minutes of uncrating, a critical advantage for integrators managing tight construction schedules and limited staging areas in operational data centers.
