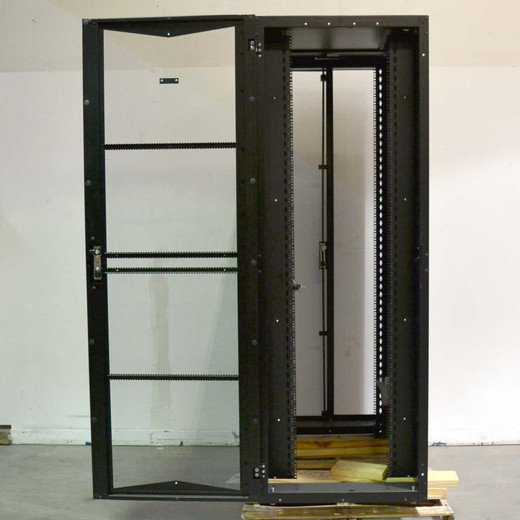

Panduit XG84822BS007X FlexFusion 48RU Network Cabinet
The Panduit XG84822BS007X delivers enterprise-grade equipment housing for high-density datacenter and telecommunications deployments. This 48-rack-unit cabinet combines 800mm width with 1200mm depth to accommodate deep servers, blade chassis, and network equipment while maintaining optimized airflow paths. Rated for 3,000 lbs static load capacity and 2,250 lbs dynamic capacity, the FlexFusion platform handles fully-populated configurations of compute, storage, and switching infrastructure. The brush-sealed top cap, single-hinge front access, and split rear door design address the real-world demands of live-environment maintenance and structured cabling discipline.
Key Features
- 48RU vertical capacity supports full-height server and network equipment stacks in standard 19" EIA-310-E rack format
- 800mm x 1200mm footprint accommodates deep blade enclosures, storage arrays, and UPS systems without overhang
- 3,000 lbs static / 2,250 lbs dynamic load rating certified for fully-populated configurations with redundant power and switching layers
- Brush-sealed top cap prevents airborne contamination ingress while allowing structured cable egress to overhead pathways
- Single-hinge front door with split rear door design enables simultaneous front-panel access and rear hot-service without removing equipment
- UL 2416 fire safety compliance and IEC 60297 international mounting standards for global datacenter deployment
- Steel construction with electrostatic-resistant finish for long-term structural integrity in climate-controlled environments
- Standard lock provisions secure both front and rear access points per enterprise physical security policy requirements
High-density compute and storage environments demand infrastructure that won't become the bottleneck when refresh cycles bring deeper, heavier, and more power-intensive equipment online. The XG84822BS007X addresses this with a 1200mm depth specification — sufficient for current-generation 1U servers at 36" depth plus rear cable-management arms and power distribution units. The 3,000 lb static load rating translates to approximately 62 lbs per rack unit across the full 48RU height, leaving headroom for dense blade chassis or fully-populated storage shelves without compromising structural integrity. The cabinet's steel frame distributes weight across four-point floor contact, and the 2,250 lb dynamic rating accounts for seismic loading and equipment insertion forces during live maintenance.
Thermal management in enclosed cabinets determines whether equipment meets manufacturer uptime specifications or suffers early failure. The brush-sealed top cap on this FlexFusion model creates a controlled hot-aisle exhaust path when paired with front-to-back airflow equipment and cold-aisle containment strategy. Unlike solid top panels that trap heat or open caps that allow uncontrolled mixing, the brush seal permits structured cable bundles to exit toward overhead ladder rack while maintaining pressure differential for airflow. The split rear door design supports asymmetric access — open the left door for rear-panel patching on network switches while the right door remains closed to preserve airflow over adjacent equipment. This matters during live maintenance windows when you cannot afford to thermally shock a running storage array by fully exposing both sides.
Standards compliance ensures compatibility across mixed-vendor environments and regulatory jurisdictions. EIA-310-E defines the 19" rack-mounting hole pattern that every server, switch, and patch panel manufacturer targets — the XG84822BS007X provides this with square-hole vertical rails rated for the full 3,000 lb static capacity. IEC 60297 compliance extends mounting compatibility to international equipment suppliers where metric specifications prevail. UL 2416 fire safety certification addresses both material flammability and structural integrity under elevated-temperature conditions, a requirement for insurance and municipal code in many datacenter builds. For integrators managing multi-site deployments or designing for acquisition by larger enterprises, this cabinet ships with the certifications that pass procurement review without custom engineering justification.
