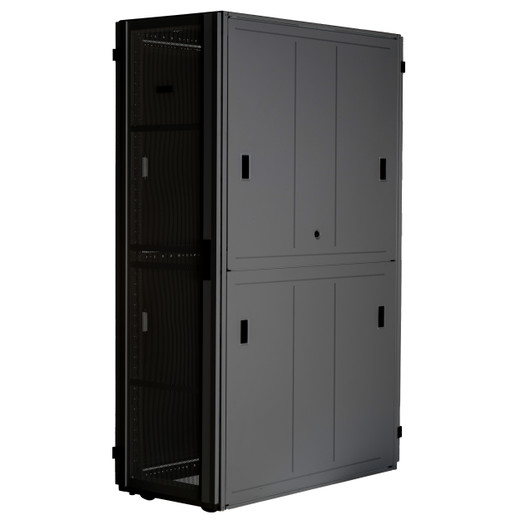

Panduit XG84829WS008X FlexFusion 48RU Network Cabinet
The Panduit XG84829WS008X is a 48-rack-unit FlexFusion network cabinet engineered for high-density data center and server room deployments where equipment weight, airflow optimization, and standards compliance converge. Built on an 800mm-wide steel frame, this cabinet delivers 2,250 lbs dynamic load capacity (3,000 lbs static) to support blade servers, storage arrays, and network aggregation gear without structural compromise. The white thermoplastic finish makes it suitable for customer-facing telecom spaces or NOCs where aesthetics matter alongside function. EIA-310-E, IEC 60297, and UL 2416 certifications ensure compatibility with enterprise IT mounting standards and meet fire/electrical safety requirements for mission-critical installations. The FlexFusion platform's modular design allows field-configurable accessories—shelves, PDUs, cable managers, blanking panels—to adapt as your infrastructure scales or pivots.
Key Features
- 48-rack-unit vertical mounting space (800mm width, 1,200mm depth nominal) accommodates full-depth servers, UPS modules, and patch panels with front-to-rear cable routing clearance
- 2,250 lb dynamic load capacity / 3,000 lb static capacity handles dense blade chassis, disk arrays, and stacked network switches without frame deflection or rail sag
- EIA-310-E and IEC 60297 compliant 19-inch mounting rails with square and threaded holes (choose hardware to match your equipment—cage nuts, clip nuts, or screws)
- White thermoplastic-coated steel construction resists corrosion in HVAC-controlled environments and presents a clean aesthetic for mixed-use spaces
- FlexFusion modular accessory ecosystem: field-add vertical cable managers, horizontal finger ducts, top-exit cable troughs, and lateral PDUs without welding or drilling
- Top cover and bottom solid base included (TC/BS configuration) to contain conditioned air within the cabinet footprint and prevent bypass airflow in hot-aisle/cold-aisle layouts
- UL 2416 listed for electrical safety—critical when housing AC-powered equipment and hardwired PDUs in occupied facilities
- Front and rear doors (perforated or solid, depending on model configuration) with multi-point latching and keyed locks to secure equipment from unauthorized access
- Adjustable leveling feet and seismic anchor points for code-compliant installation in Seismic Design Categories C, D, E, or F (consult structural engineer for tie-down requirements)
- Side panels removable without tools for rapid equipment installation, cable dressing, or emergency access during maintenance windows
- Lateral PDU mounting rails (L-PDU configuration) reserve 0U space for vertical power strips, freeing rack units for revenue-generating equipment
- Optimized perforation pattern (front/rear doors and side panels) balances airflow (CFM target: manufacturer spec) with physical security—no large cutouts that expose internal components
The 800mm cabinet width differentiates this unit from standard 600mm racks by providing an additional 200mm (7.9 inches) of lateral space inside the frame. That extra room matters when you're dressing Cat6A bundles, fiber trunks, and power whips simultaneously: instead of fighting a packed vertical channel where every zip-tie risks kinking a cable or blocking airflow, you gain working clearance to route, label, and secure conductors according to TIA-942 or BICSI DCDC standards. For integrators managing 10GBASE-T or 40G/100G fiber deployments, this translates to faster install cycles and fewer post-go-live service calls for mystery connectivity issues traced back to crushed cables. The wider footprint also accommodates dual power feeds (A-side and B-side PDUs) with segregated routing—critical for N+1 or 2N power redundancy architectures where a single short or arc must not cascade across both feeds.
Structural load capacity becomes non-negotiable when you stack 1U or 2U servers to full 48RU density. A half-populated rack with 24 servers at 40 lbs each already pushes 960 lbs; add UPS modules, core switches, and horizontal cable managers, and you breach 1,500 lbs easily. The XG84829WS008X's 2,250 lb dynamic rating means you can load every rack unit—48 servers at 46 lbs each—plus accessories without exceeding the frame's engineered capacity. The 3,000 lb static rating covers the fully loaded cabinet while at rest (before it's rolled into place or during seismic events when inertia multiplies effective load). Steel construction with welded seams and riveted corner gussets resists racking forces better than aluminum or composite frames; this matters during fork-lift transport, earthquake motion, or when maintenance staff inadvertently lean against the frame during hot-swap procedures. The cabinet ships with adjustable leveling feet to compensate for uneven slab pours (common in retrofit builds) and threaded inserts for seismic anchor bolts—consult ICC-ES AC156 or local amendments for hold-down schedules in high-seismic zones.
Airflow management distinguishes a professional installation from a thermal disaster. The top cover and bottom solid base (TC/BS configuration) force conditioned air to enter through the front door perforations, traverse the equipment depth front-to-rear, and exit through the rear door perforations—this directed path maximizes heat exchange with your CRAC or CRAH units and prevents short-cycling where chilled air bypasses the servers entirely. In hot-aisle containment systems, the top cover prevents buoyant exhaust from spilling into the cold aisle; in cold-aisle containment, it seals the pressurized cold zone. Pair this cabinet with blanking panels (not included—order separately by RU count) to block unused rack spaces: every open 1U slot leaks CFM and raises server intake temps, triggering fan speed ramps that burn watts and shorten bearing life. The lateral PDU rails let you mount vertical power strips outside the 19-inch equipment zone, so PDU depth doesn't steal airflow cross-section or force you to offset servers forward (which shortens usable depth and can void server warranties if intake temps climb out of ASHRAE A2 limits).
Compliance certifications de-risk inspections and audits. EIA-310-E and IEC 60297 compliance guarantee that any 19-inch rack-mount device—servers, switches, patch panels, KVM drawers—will physically mount using standard hole spacing (12.7mm vertical pitch, center-to-center). UL 2416 listing confirms the cabinet meets electrical safety requirements for housing AC-powered IT equipment and hardwired PDUs in occupied buildings; this becomes a code requirement under NEC Article 645 (Information Technology Equipment rooms) and many local AHJ interpretations. When your city's electrical inspector walks the data center rough-in, the UL label accelerates approval and avoids expensive re-work or substitute product scrambles mid-project. For federal or defense contracts, verify whether the project spec calls out Buy American Act compliance or additional seismic ratings (e.g., GR-63-CORE Zone 4)—Panduit can typically provide cert letters on request for these supplemental requirements.
