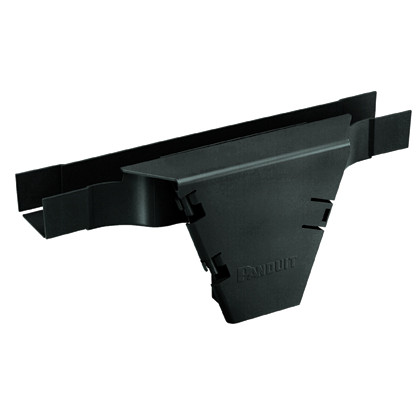

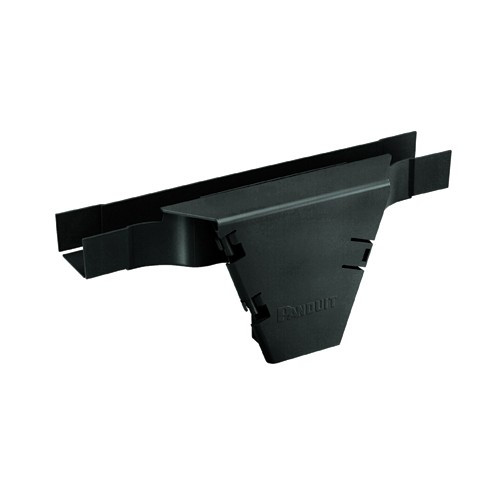

Panduit FVTHD2X2LBL FiberRunner 2x2 Vertical Tee Fitting with Hinged Door

The Panduit FVTHD2X2LBL vertical tee fitting solves a common fiber pathway challenge in multi-floor data centers and telecom facilities: creating clean, protected 90° vertical drops from horizontal trunk runs without exposing cable to bend-radius violations or physical damage during maintenance. This 2x2 FiberRunner component integrates directly with Panduit's modular raceway system to form structured vertical transitions while maintaining full cable accessibility through an integrated hinged door. Built for high-density fiber deployments where pathway integrity directly impacts network uptime, this fitting eliminates the improvised vertical transitions and zip-tied bundles that create failure points in mission-critical optical infrastructure.

Key Features

• 90° vertical drop transition from horizontal 2x2 FiberRunner channel runs
• Integrated hinged door provides tool-free access to cables during adds/moves/changes
• Polycarbonate/ABS construction withstands repeated access cycles without cracking
• Direct attachment to 2x2 channels and fittings via QuikLock couplers, snap rivets, or bolted connections
• UL listed to 2024A for optical cable routing assemblies
• Telcordia GR-63-CORE Zone 3 NEBS compliance for telecom central office installations
• Compatible with Panduit 1-port spillover accessories for hybrid horizontal/vertical pathway designs
• Black finish integrates with existing FiberRunner installations

The FVTHD2X2LBL measures 14.22" wide × 5.76" high × 4.11" deep, sized to accept the same cable volumes as the 2x2 horizontal channel it connects to—critical for maintaining consistent pathway fill ratios across vertical transitions where cable weight and bend stress concentrate. The polycarbonate/ABS blend resists impact during ladder work and provides the dimensional stability needed to keep the hinged door aligned over years of thermal cycling in equipment rooms. Unlike stamped metal fittings that develop sharp edges as paint wears, this molded construction maintains smooth interior surfaces that won't abrade fiber jackets during installation pulls or future reconfigurations. The fitting accepts standard FiberRunner covers, so you maintain a continuous enclosed pathway from horizontal trunk to vertical riser without exposure gaps where cables could snag on adjacent rack hardware.

Deploy the FVTHD2X2LBL in data center hot-aisle containment systems where fiber trunks run overhead and drop vertically to top-of-rack switches, in telecom COs where SONET/optical transport gear requires floor-to-ceiling pathway connections, or in enterprise network closets where backbone fiber transitions from cable tray above the drop ceiling down to distribution frames. The hinged door becomes essential in these scenarios—technicians can access the vertical section to add new fibers or troubleshoot a circuit without dismantling the entire raceway run, and the door's positive latch prevents accidental opens during routine aisle traffic. The fitting's compatibility with both QuikLock tool-free couplers and traditional bolted connections lets you match the attachment method to your site's standards: QuikLock for speed in new construction, bolted for maximum pullout resistance in high-vibration environments or seismic zones. The 1-port spillover compatibility matters when you need to branch a small fiber count out of the vertical run—surveillance camera uplinks to a mid-stack switch, for example—without creating an unprotected exit point.

UL listing to 2024A confirms this fitting meets the National Electrical Code's Article 770 requirements for optical fiber pathways, a baseline compliance check for projects requiring AHJ signoff. Telcordia GR-63-CORE Zone 3 certification goes further, validating performance under the earthquake simulation, thermal shock, and humidity cycling that define Network Equipment Building Systems standards—the reason this fitting appears in carrier-grade telecom installations where a pathway failure could take down inter-office trunks serving thousands of subscribers. RoHS compliance ensures the fitting qualifies for federal and state projects with environmental procurement mandates. For integrators building BICSI RCDD-designed structured cabling systems, the FVTHD2X2LBL provides the manufacturer-certified vertical transition component that supports warranty coverage across the entire FiberRunner pathway—eliminating the "mixed-vendor pathway" warranty exclusion that voids claims when field failures occur.
