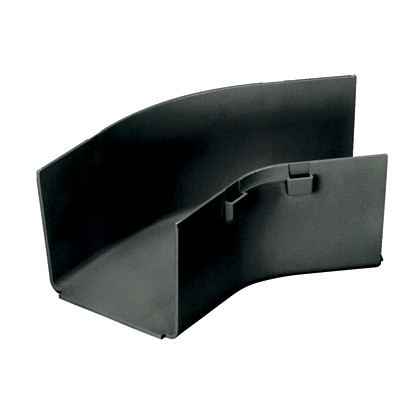

Panduit FRH454X4LBL FiberRunner 4x4 45-Degree Horizontal Fitting

The Panduit FRH454X4LBL is a UL-listed horizontal elbow fitting engineered for FiberRunner 4x4 optical fiber cable management systems in mission-critical data centers and central offices. This LSZH-rated component creates precise 45-degree horizontal turns within the pathway, enabling compliant routing around equipment racks, overhead cable trays, and building columns without exceeding minimum bend radius requirements for single-mode and multimode fiber trunk assemblies. Attaches directly to FiberRunner 4x4 channel sections and adjacent fittings to form continuous, code-compliant pathways rated to UL 2024A standards for optical fiber cable management.

Key Features

• 45-degree horizontal turn fitting for FiberRunner 4x4 pathway systems — enables clean direction changes around data center hot/cold aisles and telecom equipment rows
• UL 2024A certified for optical fiber cable management assemblies — meets National Electrical Code Article 770 requirements for communications raceways in plenum and riser spaces
• LSZH polycarbonate/ABS construction — low smoke zero halogen material reduces toxic gas generation during fire events, critical for enclosed equipment rooms and offshore platforms
• Telcordia GR-63-CORE and NEBS Level 3 compliant — qualified for central office and outside plant telecom installations subject to seismic, thermal, and EMI requirements
• RoHS compliant — lead-free construction for installations subject to EU environmental directives and LEED building certifications
• 4.22" height x 9.8" length x 7.86" width — compact footprint fits standard 24" raised floor grid and overhead tray clearances without obstruction

The FRH454X4LBL fitting uses Panduit's snap-together attachment system to join adjacent 4x4 channel sections and other FiberRunner fittings without tools or fasteners. Polycarbonate/ABS blend delivers impact resistance and dimensional stability across the -40°F to +150°F operating range typical of telecom central offices and uncontrolled equipment closets. LSZH material composition is mandatory for installations in occupied spaces, marine vessels, and transit tunnels where smoke toxicity during fire directly impacts life safety — standard PVC raceway generates hydrogen chloride gas that corrodes electronics and incapacitates personnel. Black finish matches Panduit's standard data center infrastructure aesthetic and hides dust accumulation in high-airflow environments. The 4x4 cross-section accommodates up to twelve 12-fiber MPO trunk cables or equivalent 144-fiber capacity in high-density spine routing applications, with the 45-degree turning radius maintaining >2" centerline bend radius to prevent signal loss on OS2 single-mode trunks.

Deploy the FRH454X4LBL in overhead ladder rack to equipment rack transitions, perimeter wall to row entry points, and around structural columns in data center white space. The 45-degree angle is specifically sized to create two-fitting 90-degree turns with clean geometry — two FRH454X4LBL fittings installed in sequence form a right-angle path change with proper fiber bend radius maintained throughout. This is critical when routing from overhead distribution to vertical cabinet entry points where a single 90-degree elbow would create kinked fiber bundles and insertion loss spikes. UL 2024A listing is required for Authority Having Jurisdiction (AHJ) approval in jurisdictions enforcing NEC Article 770.113 — unlisted pathway products fail inspection and delay project closeout. Telcordia GR-63-CORE certification is mandatory for Tier 1 carrier central office installations and any project spec requiring NEBS compliance, covering vibration, temperature cycling, and electromagnetic compatibility testing that generic cable management products do not address.

The FRH454X4LBL ships individually packaged with five units per master carton for project quantity ordering. This fitting integrates exclusively with Panduit FiberRunner 4x4 channel and fittings — it is not compatible with 2x2 or 2x4 FiberRunner systems or third-party fiber pathway products due to proprietary snap-lock dimensions. For data center and telecom integrators managing MPO trunk deployments in UL-inspected facilities or carrier-grade central offices, the FRH454X4LBL delivers the only horizontal turn solution that satisfies both NEC Article 770 raceway requirements and Telcordia physical infrastructure standards without field fabrication or AHJ variance requests.
