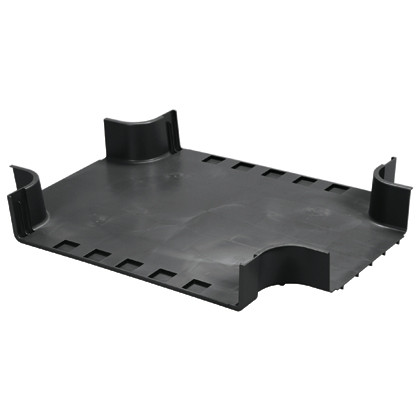

Panduit FRFWC24X4W12LBL FiberRunner 4-Way Cross Fitting for 24x4 Channels
Overview
The Panduit FRFWC24X4W12LBL is a four-way cross fitting designed specifically for the FiberRunner® 24x4 channel system, purpose-built for data centers and telecommunications central offices. This fitting attaches directly to 24x4 FiberRunner channels and/or system connectors to create a horizontal four-way intersection with two 12x4 outlets — enabling complex fiber routing layouts without resorting to ad-hoc cable management that degrades bend radius compliance and long-term fiber performance. If you're building out a structured fiber routing system at the 24-inch-wide scale, this is the fitting that makes multi-directional trunk distribution architecturally clean.
Constructed from polycarbonate/ABS, the FRFWC24X4W12LBL delivers the combination of impact resistance and dimensional stability that high-density data center environments demand. At 34.44 inches wide and 4.48 inches tall, it's sized to integrate flush with the full 24x4 channel run — no improvised adapters, no gaps that expose cable to physical stress. Sold individually (package quantity: 1).
Key Features
- Four-way horizontal cross geometry: Creates a true X-intersection across two 24x4 FiberRunner main channels with two 12x4 branch outlets. This lets you distribute fiber trunks in four independent directions from a single fitting — critical in large data center floors where east-west and north-south cable runs converge at distribution zones.
- Polycarbonate/ABS construction: The material blend gives you the rigidity of polycarbonate for structural integrity under cable load combined with ABS's impact resistance — it won't crack when a technician catches it with a cable reel during a late-night maintenance window. This matters in live-environment data centers where the channel system takes incidental abuse.
- Overall dimensions 34.44
