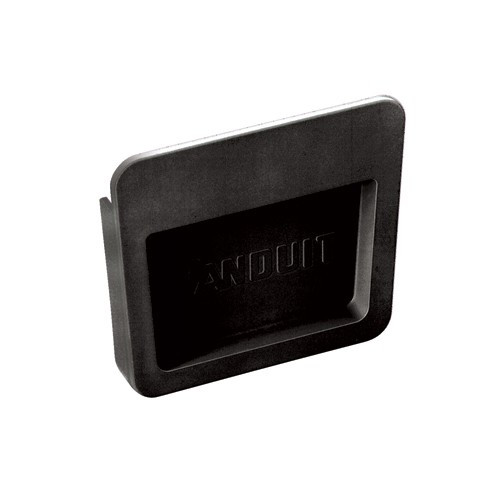

Panduit FREC4X4LBL FiberRunner 4x4 End Cap
Overview
The Panduit FREC4X4LBL is a polycarbonate/ABS end cap designed specifically for the Panduit FiberRunner 4x4 channel system. Its job is straightforward but consequential: close off open channel terminations and fitting ends to maintain the physical protection envelope around high-performance copper data and fiber optic cables in data centers and central telecommunications offices. Without proper end caps, open channel mouths become entry points for cable damage — a maintenance oversight that shows up as bent fiber or abraded jackets during moves-adds-changes.
Measuring 5.38 in. wide and 4.63 in. tall (136.6 mm × 117.6 mm), the FREC4X4LBL is sized to mate precisely with FiberRunner 4x4 wire routing and management channel. It ships individually (package quantity of 1) but is packaged in cartons of 5, which aligns with the practical reality that you'll need one end cap per open termination — and most runs have at least two ends.
Key Features
- Polycarbonate/ABS Construction: The PC/ABS blend gives you impact resistance beyond what plain ABS delivers, without the weight of metal fittings. In a live data center where ladder racks and cable trays get bumped during maintenance, this matters — the end cap holds its shape instead of cracking and leaving a gap in the cable protection system.
- Precision 4x4 Fit: At 5.38 in. wide × 4.63 in. tall, this cap is dimensioned to mate flush with FiberRunner 4x4 channel and fittings. A precise fit means no gaps that could snag cable jackets during future pull-through work.
- RoHS Compliance: All six restricted substances are controlled to RoHS thresholds — relevant for installations in the EU or any enterprise with a green procurement policy, and a baseline expectation for any cable management component deployed in modern data centers.
- UL Listed for Optical Fiber Cable Routing Assemblies (up to 2024A): UL listing to the 2024A standard means the assembly has been independently tested to confirm it won't contribute to fire spread in the cable pathway. Required for compliance in most commercial and data center construction specs — don't substitute an unlisted end cap just to save a few dollars.
- Telcordia GR-63-CORE / NEBS Level 3 Compliance: GR-63-CORE and NEBS Level 3 cover seismic, thermal, and airflow requirements for Network Equipment Building Systems. If your data center or central office infrastructure must meet carrier-grade environmental specs, these certifications confirm the fitting has been tested to those standards — not just assumed to comply.
- Black Color (Noir): Black is the standard color for FiberRunner 4x4, so the FREC4X4LBL installs without creating a color mismatch that would stand out during audits or inspections. Consistent aesthetics in a structured cabling environment also makes it easier to visually confirm all channel ends are properly capped.
- Sold Individually, Carton of 5: With a package quantity of 1 and a carton quantity of 5, you can order exactly the number of end caps you need for a project — no forced bulk buy. For large deployments, ordering in full cartons simplifies receiving and inventory.
Integration & Compatibility
The FREC4X4LBL is designed exclusively for use with the FiberRunner 4x4 fiber routing channel system. It is not a universal fit — verify that your installed channel is FiberRunner 4x4 before ordering. If you're working with FiberRunner channels of a different size (2x4, 4x6, or other configurations), Panduit makes size-specific end caps for each — confirm the channel dimensions before specifying.
Installation requires no tools and no hardware: the end cap snaps onto the open channel end, completing the cable protection structure. This makes it equally useful during initial installation and during post-installation adds when a new branch or elbow creates a previously-capped termination that now needs to be re-routed.
For structured cabling in switch rooms and data centers, pairing FiberRunner channel with correctly-fitted end caps at every open termination is the difference between a clean, compliant cable pathway and one that will draw comments on the next infrastructure audit.
What's in the Box
- 1x Panduit FREC4X4LBL FiberRunner 4x4 End Cap (Black)
Frequently Asked Questions
Q: Is the FREC4X4LBL compatible with FiberRunner channel sizes other than 4x4?
A: No. The FREC4X4LBL is sized specifically for FiberRunner 4x4 channel and fittings (5.38 in. wide × 4.63 in. tall). For other FiberRunner channel sizes, Panduit offers size-matched end caps — confirm your channel dimensions before ordering.
Q: What standards does the FREC4X4LBL meet?
A: The FREC4X4LBL is RoHS compliant, UL listed for optical fiber cable routing assemblies up to the 2024A standard, and tested to Telcordia GR-63-CORE and NEBS Level 3 environmental requirements.
Q: How many end caps come in a package?
A: Each package contains 1 end cap. The standard carton quantity is 5 units.
Q: What material is the FREC4X4LBL made from?
A: Polycarbonate/ABS blend — a combination chosen for impact resistance and dimensional stability in data center and central office environments.
Q: What applications is the FREC4X4LBL intended for?
A: Data centers and central telecommunications offices, per Panduit's application specification. It is used to close open ends of FiberRunner 4x4 channel runs and fittings, maintaining physical protection for high-performance copper and fiber optic cables.
Q: Does the FREC4X4LBL require any tools or hardware to install?
A: No. The end cap snaps directly onto the open end of FiberRunner 4x4 channel or fittings without tools or additional fasteners.
The FREC4X4LBL is one of those components that gets overlooked until an auditor or an insurance inspector walks the data center floor. At 5.38 in. wide and 4.63 in. tall, it fits the FiberRunner 4x4 system precisely — and the UL listing for optical fiber cable routing assemblies up to the 2024A standard means you're not just plugging a hole, you're maintaining a listed assembly. That distinction matters when your installation spec calls for a code-compliant cable pathway from end to end.
Technical Highlights:
- PC/ABS Material: Polycarbonate/ABS handles incidental impact from ladder trays, cable pulls, and equipment moves better than plain ABS — you won't find a cracked end cap and exposed channel mouth after a routine maintenance visit.
- NEBS Level 3 / GR-63-CORE: Tested to carrier-grade seismic and thermal standards. If you're deploying in a central office or any environment that references NEBS in its build spec, this end cap has the paperwork to back it up — not just assumed compliance.
- RoHS Compliance: All six restricted substances controlled. Required for EU installations and increasingly a procurement checkbox for enterprise customers with sustainability commitments.
Deployment Considerations:
- The FREC4X4LBL is FiberRunner 4x4-specific — channel width of 5.38 in. and height of 4.63 in. are not interchangeable with 2x4 or 4x6 FiberRunner variants. Confirm channel size before ordering, especially on retrofit projects where documentation may be incomplete.
- Package quantity is 1 unit; carton quantity is 5. On a large data center build with dozens of channel terminations, ordering in full cartons avoids the common situation of being one or two end caps short on installation day.
The FREC4X4LBL is the right spec call for carrier-grade central office builds and enterprise data centers where the cable pathway system needs to be fully listed and NEBS-documented from channel to fittings to end caps — not just the channel sections themselves.
