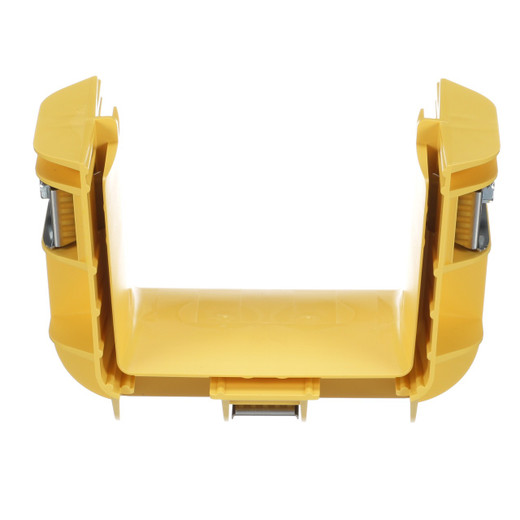

Panduit FRBC4X4LYL-E FiberRunner QuikLock 4-Inch x 4-Inch Fiber Channel Coupler
Overview
The Panduit FRBC4X4LYL-E is a pre-assembled QuikLock coupler designed to join two sections of FiberRunner™ 4-inch x 4-inch channel and/or fittings in data centers and central telecommunications offices. Where other channel couplers require loose bolts and tedious alignment, this coupler's tool-minimized mechanical fastening system snaps sections together quickly — a measurable time saver when you're tiering hundreds of fiber pathways in a high-density row. Each pack contains 20 couplers, making it a practical buy for large-scale structured cabling buildouts or phased expansions.
Sourced as part of the Panduit FiberRunner™ product line, the FRBC4X4LYL-E (often searched as FRBC4X4LYL E) is built from a polycarbonate/ABS blend and finished in yellow — the standard color coding for fiber pathways in Panduit's routing system, so your techs can distinguish fiber from copper runs at a glance across a dense overhead ladder rack.
Key Features
- QuikLock Pre-Assembled Design: The coupler arrives ready to install — no loose hardware to drop into a raised floor or misplace during a midnight maintenance window. Mechanical fastening engages without tightening bolts, cutting per-joint installation time compared to traditional bolted couplers. When removal is needed, a standard 3/8-inch socket screwdriver releases the fastener cleanly.
- 4 in x 4 in (100 mm x 100 mm) Channel Fit: Sized specifically for the FiberRunner™ 4x4 channel family, this coupler delivers a flush, aligned join between fiber cable management sections. Mismatched channel sizes are the most common source of poor fiber bend radius control — using the correctly dimensioned coupler eliminates that risk entirely.
- Polycarbonate/ABS Construction: This material blend handles the thermal cycling common in data center hot/cold aisle environments without warping or becoming brittle. Polycarbonate contributes impact resistance; ABS provides dimensional stability during molding — together they produce a coupler that maintains its mechanical grip over repeated installation and removal cycles.
- Yellow Color Coding: In multi-pathway overhead installations, color-coded infrastructure isn't cosmetic — it's operational. Yellow identifies fiber routes at a glance, reducing the probability of a technician disturbing the wrong pathway during adds, moves, and changes.
- RoHS Compliance: The FRBC4X4LYL-E meets RoHS requirements, which matters for enterprise and government facilities with environmental compliance mandates on all installed infrastructure components — not just active electronics.
- UL-Listed Optical Cable Routing Assemblies (through 2024): UL certification on cable routing assemblies signals that the system has been evaluated for fire and structural performance — a prerequisite for many commercial building code inspections and enterprise procurement checklists.
- Telcordia GR-63-CORE and NEBS Level 3 Compliance: GR-63-CORE and Network Equipment Building Systems (NEBS) Level 3 testing covers seismic, thermal, and airflow stress scenarios specific to telecommunications infrastructure. If you're deploying in a carrier-grade central office or a facility that enforces NEBS standards, this coupler meets the specification without requiring a compliance exception.
- 20-Piece Pack Quantity: Large project quantities are packaged efficiently. At 20 couplers per pack, procurement and receiving is simplified for multi-rack or multi-row fiber pathway builds rather than ordering individual units.
Integration & Compatibility
The FRBC4X4LYL-E is designed for use within the FiberRunner™ channel system — specifically the 4-inch x 4-inch pathway series deployed in data centers and central offices. It connects two channel sections or fittings and is intended to be used alongside the full suite of FiberRunner™ straight sections, 90-degree turns, T-fittings, and end caps. Consult the Panduit FiberRunner™ family documentation to confirm compatibility with specific fitting configurations before ordering for non-standard junction points.
These couplers are appropriate for structured cabling projects where fiber pathway integrity and compliance documentation are required by the owner, AHJ, or enterprise IT policy. The NEBS Level 3 and GR-63-CORE ratings make them a direct fit for telecom carrier environments where lesser-rated components would require variance approval.
What's in the Box
- 20x Panduit FRBC4X4LYL-E QuikLock FiberRunner™ 4 in x 4 in Channel Couplers (yellow, polycarbonate/ABS)
Frequently Asked Questions
Q: What channel size does the FRBC4X4LYL-E fit?
A: The FRBC4X4LYL-E is designed for Panduit FiberRunner™ 4-inch x 4-inch (100 mm x 100 mm) channel sections and fittings. It will not fit the 2x4, 2x2, or other FiberRunner™ channel sizes.
Q: Does the FRBC4X4LYL-E require any tools to install?
A: The QuikLock mechanism engages mechanically without tightening bolts during installation. If removal is required, a standard 3/8-inch socket screwdriver is used to release the fastener. No other tools are specified in the product evidence.
Q: How many couplers come in a pack?
A: Each order of the FRBC4X4LYL-E includes 20 couplers.
Q: Is the FRBC4X4LYL-E RoHS compliant?
A: Yes. The FRBC4X4LYL-E is RoHS compliant as documented in the product standards.
Q: Is the FRBC4X4LYL-E suitable for carrier-grade or NEBS-rated facilities?
A: Yes. The FRBC4X4LYL-E complies with Telcordia GR-63-CORE and Network Equipment Building Systems (NEBS) Level 3 testing requirements, covering seismic, thermal, and airflow stress scenarios relevant to carrier central offices and telecom facilities.
Q: What is the material of the FRBC4X4LYL-E?
A: The coupler is constructed from a polycarbonate/ABS blend, providing impact resistance and dimensional stability for data center thermal cycling environments.
The FRBC4X4LYL-E is one of those components that looks trivial on a BOM until you're three rows deep into a high-density fiber buildout and realize how much time a properly designed coupler saves. The QuikLock pre-assembled mechanism on this 4-inch x 4-inch unit eliminates the loose-bolt problem that plagues generic couplers — no hardware to track, no risk of an undertightened joint shifting under cable load after the crew leaves.
Technical Highlights:
- QuikLock Fastening: Pre-assembled, no loose bolts during install — engages mechanically, released with a 3/8-inch socket screwdriver. On a 200-coupler data hall run, that's a meaningful labor reduction versus traditional bolted joints.
- NEBS Level 3 / GR-63-CORE: These ratings cover seismic Zone 4, thermal cycling, and airflow stress. If your project specs include NEBS compliance, this coupler clears the bar without requiring a product substitution or variance — that's a procurement blocker removed.
- Polycarbonate/ABS Construction: Handles the thermal swing between hot-aisle/cold-aisle zones without dimensional creep. Unlike lower-grade plastics, this blend won't loosen its mechanical grip after several heat cycles, which matters for pathways that get re-dressed during MACs.
Deployment Considerations:
- The FRBC4X4LYL-E is channel-family-specific — it fits Panduit FiberRunner™ 4x4 sections only. Verify the exact channel size in your existing or planned infrastructure before ordering; a 2x4 or 4x6 run requires a different coupler SKU entirely.
- Package quantity is 20 units per pack. For large projects, calculate your coupler count against actual section joints before procurement — partial packs aren't typically returned, so over-ordering by a few packs is preferable to a job site shortage mid-installation.
For a greenfield data center build or carrier central office where NEBS Level 3 compliance is a hard requirement on all passive infrastructure, the FRBC4X4LYL-E is the correct coupler for 4x4 FiberRunner™ pathway systems — not a generic alternative that needs a compliance workaround.
