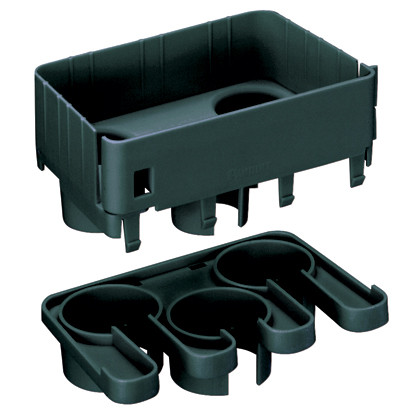

Panduit FRIDT6X4LBL 3-Port Spillout for 6x4 FiberRunner Systems
Overview
The Panduit FRIDT6X4LBL is a FiberRunner® 3-Port Spillout fitting designed for use with the 6x4 FiberRunner routing system in data centers and telco central offices. At its core, this fitting does one specific job: it transitions fiber out of the main 6x4 raceway and diverts it into three separate 1.5-inch (38mm) diameter split corrugated tubing pathways simultaneously. If you're managing high-density fiber runs in a structured cabling environment and need controlled, organized breakout points rather than loose cable exits, this is the component that keeps your infrastructure clean and traceable. The FRIDT6X4LBL is manufactured from polycarbonate/ABS and comes in black to match standard FiberRunner system components.
Key Features
- 3-Port Simultaneous Spillout: Divides a single 6x4 raceway exit into three independent 1.5-inch (38mm) pathways — meaning you can branch fiber to three separate equipment racks or cable trays from one controlled exit point, rather than creating multiple uncontrolled openings in your raceway.
- 6x4 FiberRunner System Integration: Engineered specifically for the 6x4 FiberRunner routing system, so the mechanical fit is precise. Using a mismatched fitting risks poor seating, strain on fiber at the transition, and an installation that won't pass a structured cabling audit.
- LSZH Material Construction: Low-Smoke Zero-Halogen designation matters in enclosed telco rooms and data center hot aisles — in a fire event, LSZH materials limit the toxic gas and smoke output that standard PVC compounds would produce, protecting both personnel egress and sensitive equipment in the space.
- Polycarbonate/ABS Body: The PC/ABS blend delivers the structural stiffness needed to maintain fitting geometry under cable load while resisting the brittleness that pure polycarbonate can exhibit. In a high-cable-count spillout under tension, this matters for long-term mechanical integrity.
- RoHS Compliant: Meets EU Restriction of Hazardous Substances requirements, which is a procurement requirement for many enterprise and government data center builds — avoids a compliance flag during facility audits or equipment decommissioning.
- UL Listed to 2024 Optical Fiber Cable Routing Assemblies: UL listing to this specific standard means the fitting has been independently tested to confirm it won't contribute to optical fiber damage or create a fire propagation risk within the routing assembly — a requirement on many commercial and government construction specifications.
- Telcordia GR-63-CORE Level 3 Compliant: This is the NEBS (Network Equipment Building Systems) standard for physical protection — Level 3 is the highest tier, covering seismic zone 4 conditions. If you're installing in a telco central office or any facility that mandates NEBS compliance, this fitting qualifies. It's not a spec you'll need in every enterprise data center, but it's non-negotiable in carrier-grade environments.
- Compact Overall Dimensions: At 6.96 in. wide × 3.46 in. tall × 4.66 in. long, this fitting integrates without creating obstructions in tight overhead cable management zones or raised-floor pathways where clearance is limited.
Integration & Compatibility
The FRIDT6X4LBL is designed exclusively for the Panduit FiberRunner® 6x4 routing system. It is not a universal fitting — the 6x4 designation refers to the specific raceway cross-section (6-inch width, 4-inch depth) in the Panduit FiberRunner line. Confirm your installed raceway size before ordering; Panduit offers distinct spillout fittings for other FiberRunner dimensions (4x4, 2x2, etc.), and cross-fitting sizes will not seat correctly.
The 1.5-inch spillout diameter is sized for standard split corrugated tubing used throughout wire routing and cable management systems. If your downstream tubing diameter differs, you'll need a different spillout variant. This fitting ships individually (package quantity: 1), with carton quantity of 5 — plan your order quantity against the number of spillout points in your fiber routing layout.
Both RoHS and UL certifications support deployment in projects governed by those standards. The Telcordia GR-63-CORE Level 3 compliance specifically targets carrier and telco environments — if you're spec'ing a commercial enterprise data center without NEBS requirements, this rating is a bonus rather than a decision driver, but it does confirm the fitting will handle physical stress beyond typical data center conditions.
What's in the Box
- 1x Panduit FRIDT6X4LBL FiberRunner 3-Port Spillout Fitting
Frequently Asked Questions
Q: What raceway size does the FRIDT6X4LBL fit?
A: The FRIDT6X4LBL is designed specifically for use with Panduit's 6x4 FiberRunner routing system. The 6x4 designation refers to the raceway cross-section: 6-inch width by 4-inch depth. It is not compatible with other FiberRunner sizes such as 4x4 or 2x2.
Q: What diameter are the three spillout ports on the FRIDT6X4LBL?
A: Each of the three spillout ports accommodates 1.5-inch (38mm) diameter split corrugated tubing. All three ports are the same size, allowing simultaneous breakout of fiber into three equal-diameter pathways.
Q: Is the FRIDT6X4LBL LSZH rated?
A: Yes. The FRIDT6X4LBL carries an LSZH (Low-Smoke Zero-Halogen) designation, making it suitable for installations in enclosed spaces — including data centers and telco central offices — where minimizing toxic gas and smoke in a fire event is required.
Q: Is the FRIDT6X4LBL compliant with NEBS GR-63-CORE Level 3?
A: Yes. The FRIDT6X4LBL meets the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3, which is the highest NEBS physical protection tier. This makes it suitable for carrier-grade telco central office environments that mandate NEBS compliance.
Q: Is the FRIDT6X4LBL RoHS compliant?
A: Yes. The FRIDT6X4LBL is RoHS compliant and also UL Listed to 2024 Optical Fiber Cable Routing Assemblies standards.
Q: How many units come per package?
A: The FRIDT6X4LBL ships individually — package quantity is 1. It is available in cartons of 5 for higher-volume installations.
The FRIDT6X4LBL earns its place in carrier-grade and enterprise fiber plants by solving a specific transition problem — getting fiber out of a 6x4 FiberRunner raceway and into three independent 1.5-inch corrugated pathways without creating unmanaged exit points. The Telcordia GR-63-CORE Level 3 compliance is the spec that separates this fitting from generic alternatives; most data center hardware never gets tested to NEBS physical standards, and if your project spec sheet calls for it, this is one of the few off-the-shelf fittings that actually qualifies.
Technical Highlights:
- LSZH + PC/ABS Construction: The polycarbonate/ABS blend resists deformation under sustained cable load at the transition point — a place where cheaper materials can creep and stress fiber. LSZH compliance addresses enclosed-space fire safety requirements directly at the fitting level, not just at the cable level.
- GR-63-CORE Level 3: The highest NEBS physical protection tier — covers seismic zone 4 conditions. For any telco central office installation, this is the compliance checkpoint that governs physical infrastructure components, and this fitting meets it.
- 3 × 1.5-inch Port Geometry: Splitting one raceway exit into three uniform 1.5-inch outputs gives you structured, traceable breakout without improvised routing. In a dense patch zone, that's the difference between a clean fiber audit and a technician pulling the wrong run at 2am.
Deployment Considerations:
- Confirm your FiberRunner raceway is specifically the 6x4 size before ordering — Panduit's spillout catalog is size-specific, and a 4x4 or 2x2 raceway requires a different part number. Dimension cross-check: the fitting body is 6.96 in. wide × 3.46 in. tall × 4.66 in. long, so budget that footprint in your overhead or underfloor cable management plan.
- The package quantity is 1 unit. If you're outfitting a row of racks with multiple breakout points, order against your spillout count explicitly — the carton of 5 is more economical for larger deployments but you'll need to plan quantities in advance.
The FRIDT6X4LBL is the right call for telco central office builds and enterprise data center cabling infrastructure projects where GR-63-CORE Level 3 compliance is on the spec sheet and fiber breakout discipline is non-negotiable — particularly in high-density fiber zones where uncontrolled exits create long-term maintenance problems.
