Detector Bases & Accessories
Showing Results for Detector Bases & Accessories
-
System Sensor
SKU: A77-AB2

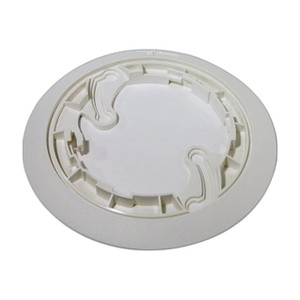

System Sensor A77-AB2 Retrofit Adapter Bracket for i3 Series
TCP/IP retrofit adapter bracket for System Sensor i3 Series fire panels
$12.92 $11.99 Save $0.93 -
System Sensor
SKU: B114LP
System Sensor B114LP 120VAC Low-Profile Plug-In Detector Base
Low-profile 120VAC plug-in base with TCP/IP networking for confined spaces
$243.23 $162.99 Save $80.24 -
System Sensor
SKU: B114LPBT
System Sensor B114LPBT 24VAC/DC Low-Profile Plug-In Detector Base
Low-profile 24VAC/DC plug-in base with TCP/IP networking
$176.51 $115.99 Save $60.52 -
System Sensor
SKU: B116LP
System Sensor B116LP 2-Wire Low-Profile Plug-In Detector Base with ...
2-wire low-profile detector base, 24VDC, plug-in System Sensor modules
$115.00 $114.99 Save $0.01 -
System Sensor
SKU: BEAMMMK
System Sensor BEAMMMK Beam Detector Multi-Mount Kit
Multi-position mounting kit for System Sensor TCP/IP beam detectors
$152.45 $99.99 Save $52.46 -
System Sensor
SKU: BEAMSMK
System Sensor BEAMSMK Beam Detector Surface-Mount Kit
Surface-mount kit for System Sensor beam detectors on 32VDC networks
$84.21 $83.99 Save $0.22 -
System Sensor
SKU: CO-PLATE
System Sensor CO-PLATE CO Detector Replacement Plate
TCP/IP CO detector replacement plate for networked fire safety systems
$48.97 $47.99 Save $0.98 -
System Sensor
SKU: DECAL-W
System Sensor DECAL-W White Letter Decal Kit for Red Devices
White letter decals for System Sensor red security devices
$94.00 $93.99 Save $0.01 -
System Sensor
SKU: DECAL-WC
System Sensor DECAL-WC White Letter Decal Kit for Red Ceiling Devices
White letter decal kit for System Sensor red ceiling devices
$141.00 $140.99 Save $0.01 -
System Sensor
SKU: DH400OE-1
System Sensor DH400OE-1 Weatherproof Outdoor Duct Detector Enclosure
Sealed outdoor duct detector enclosure for rooftop HVAC smoke detection
$618.14 $410.99 Save $207.15 -
System Sensor
SKU: DST1
System Sensor DST1 InnovairFlex Sampling Tube - Up to 1 Foot Duct
Duct sampling tube for InnovairFlex fire detection up to 1 foot
$17.83 $11.99 Save $5.84 -
System Sensor
SKU: DST10
System Sensor DST10 InnovairFlex Sampling Tube - 8 to 12 Foot Duct
Aspirating smoke sampling tube for 8–12 ft ductwork runs with TCP/IP
$70.23 $47.99 Save $22.24 -
System Sensor
SKU: DST3
System Sensor DST3 InnovairFlex Sampling Tube - 2 to 4 Foot Duct
Duct sampling tube for 2–4 ft runs, TCP/IP integrated, 29VDC
$28.25 $20.99 Save $7.26 -
System Sensor
SKU: DST5
System Sensor DST5 InnovairFlex Sampling Tube - 4 to 8 Foot Duct
4-to-8-foot duct sampling tube for networked HVAC fire detection
$34.10 $25.99 Save $8.11 -
System Sensor
SKU: ETX
System Sensor ETX InnovairFlex Exhaust Tube 12-Inch
12-inch flexible exhaust tube for System Sensor ETX air sampling
$13.86 $9.99 Save $3.87 -
System Sensor
SKU: MP120K
System Sensor MP120K 120VAC Adapter Mounting Plate
120VAC mounting plate with TCP/IP for indoor/outdoor fire systems
$62.73 $61.99 Save $0.74
Detector Bases & Accessories
Detector mounting bases and accessories for addressable fire alarm systems. Standard, sounder, relay, and isolator base variants provide the wiring interface between SLC loops and plug-in detector heads, plus trim plates and protective guards for finished installations.
Plan Your Deployment
- Match base type to detector head series and fire alarm panel platform
- Evaluate sounder bases for local audible alarm without separate notification wiring
- Select isolator bases to protect SLC segments in areas prone to wire faults
- Specify flush or surface mounting and trim plate color for architectural finish
- Plan sufficient spare bases for future detector additions and maintenance swap-outs
Detector Bases & Accessories — Engineering-Grade Fire Detection for Commercial Deployments
This category covers 15 working models of detector bases & accessories sourced manufacturer-direct or through channel-direct US distribution. Build the rest of your system around the architectural choices below — compatibility, environmental rating, and lifecycle decisions made here propagate through every downstream component you specify.
What to Look For
Addressable versus conventional architecture is the first decision. Conventional systems group detectors into zones; addressable systems identify the exact device that triggered. For buildings above 10,000 sq ft or with more than 20 detectors, addressable saves substantial diagnostic time and meets most modern code requirements. Conventional panels remain economical for small commercial buildings and retrofits where new wiring isn't feasible.
UL 864 listing is non-negotiable for the panel; UL 268 for smoke detectors, UL 521 for heat detectors. The AHJ will reject anything else. Beyond UL, look for FM Approval and CSFM (California) listings — many jurisdictions accept only those. Confirm panel-to-detector compatibility within the manufacturer's listed combinations; mixing brands across UL listings voids the panel's certification.
Notification appliance circuit (NAC) capacity, voltage drop, and battery backup sizing drive panel sizing more than detector count does. ADA-compliant strobes draw 75-175 mA each — a 50-strobe building exceeds many small NAC ratings. Calculate total NAC load with voltage-drop budget for the longest run, and size standby battery for 24 hours plus 5 minutes alarm per NFPA 72.
Central station communication, networked panel federation, and graphical workstations matter most in multi-building campuses. Single-building panels typically dial a central station via cellular and IP; multi-building campuses run proprietary peer-to-peer networks (Notifier NFN, Siemens FN-2127, Edwards SIGA) with master annunciation. Plan the integration topology before ordering panels — head-end choice affects which compatible peripherals you can deploy.
Key Specs in This Category
| Spec | Available Options |
|---|---|
| Type | Expansion Enclosure, Accessory, 8-card expansion enclosure, Fire Alarm Expander Module, Expander, Monitor, Fire Communications Bridge, Fiber Interface Bridge |
Top Brands in This Category
Frequently Asked Questions
Do I need an addressable or conventional fire alarm panel?
Addressable panels identify the specific detector in alarm; conventional panels identify only the zone. NFPA 72 and most local codes require addressable for buildings above certain occupancy or square-footage thresholds, but the practical break-even is around 20-30 detectors. Above that count, addressable saves diagnostic and maintenance time. Below it, conventional is often the budget-friendly choice.
What's the difference between photoelectric and ionization smoke detectors?
Photoelectric detectors respond fastest to smoldering fires (cigarettes, electrical wiring); ionization detectors respond fastest to flaming fires (paper, kitchen). Modern dual-sensor detectors include both technologies and meet UL 268 7th edition requirements. Most jurisdictions now require dual-sensor or photoelectric for new commercial installations. Ionization-only is being phased out due to nuisance-alarm performance in cooking and shower-steam scenarios.
How often must fire alarm systems be inspected?
NFPA 72 requires annual inspection and testing of the entire system, semiannual battery testing, and monthly visual inspection of the panel. Local AHJ requirements often mandate documentation and a service contract with a licensed contractor. The owner-of-record bears legal responsibility for inspections — missing an annual inspection exposes the owner to fines and insurance claim denial.
Do I need a duct smoke detector?
Yes if the HVAC system exceeds 2,000 CFM (commercial threshold) — code requires duct smoke detectors that shut down the HVAC to prevent smoke distribution during a fire. Confirm CFM rating against local code thresholds; many jurisdictions require duct detection on smaller systems serving multiple-occupancy buildings. Duct detectors must report to the building's fire alarm panel.
What battery backup is required for fire panels?
NFPA 72 requires 24 hours of standby operation plus 5 minutes in full alarm. Calculate panel current draw under both conditions, then specify a battery with adequate Ah capacity. Lead-acid batteries lose capacity in cold environments — derate by 20% for unconditioned spaces. Replace batteries every 4-5 years even if they test good; failure rates climb steeply after year 5.
