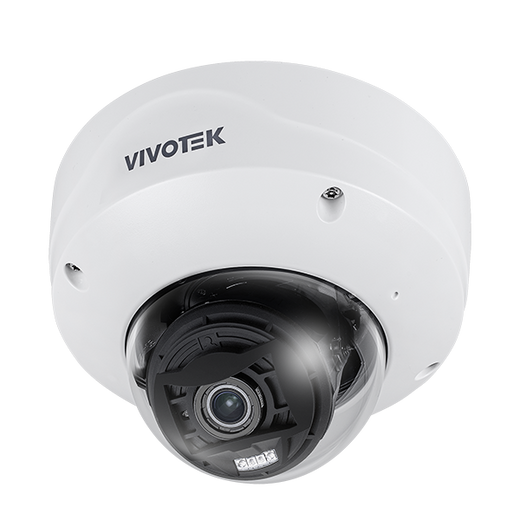

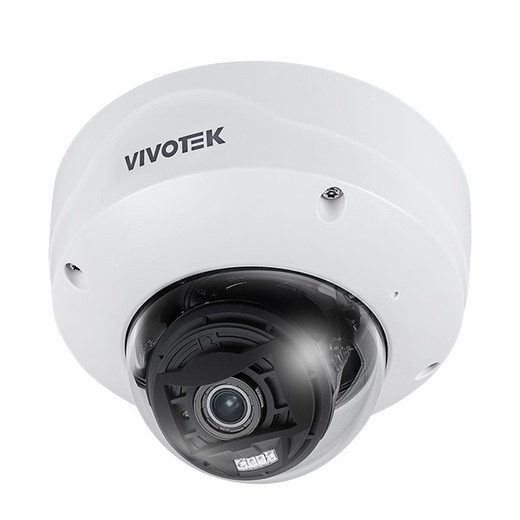

Vivotek FD9187-HT-V3(7-22 MM) 5MP Motorized Indoor Dome Camera
The Vivotek FD9187-HT-V3(7-22 MM) is purpose-built for indoor facilities where environmental durability and optical flexibility must coexist: food processing plants, cold-storage areas, industrial washdown zones, and any installation where standard domes fail under moisture, spray, or chemical exposure. The combination of IP66/IP67 environmental sealing with a motorized zoom lens eliminates the typical trade-off that forces buyers to choose between sealed housing and focal-length adjustability. You adjust coverage post-deployment without repositioning hardware or deploying a second camera.
Key Features
- 5MP resolution (2592 × 1944) at 30fps continuous: Delivers sufficient pixel density for facial recognition and object identification at typical indoor dome mounting heights (8–15m ceiling installations). Full-rate 30fps eliminates stuttering playback during motion-dependent events; no frame-rate drops under standard surveillance loads.
- Motorized varifocal 7–22mm lens with P-iris control: Adjust focal length from 37° to 10° horizontal field of view (3.14× optical zoom) remotely after installation. P-iris electronically manages aperture across changing lighting conditions, preventing iris chatter and maintaining consistent exposure without manual iris hunting—critical in facilities with uneven illumination or shift-to-shift lighting changes.
- H.265, H.264, and MJPEG codec support: H.265 compression cuts storage footprint 40–60% versus H.264 at comparable quality—meaningful when recording 24/7 across multi-camera deployments. Fallback to H.264 or MJPEG if your NVR or management platform lacks H.265 support, ensuring backward compatibility.
- 50m infrared illumination (850nm): Supports low-light and complete-darkness operation for shift-based facilities and after-hours monitoring. Adequate for typical dome installations at 8–10m indoor ceiling height; verify coverage if mounting exceeds 12m horizontal distance from subjects of interest.
- WDR PRO and 3DNR image processing: WDR PRO handles harsh backlighting (skylights, sunlit loading docks, bay doors) without washing out shadow detail. 3DNR suppresses infrared video grain in low-light conditions, improving facial and object clarity when visible illumination is minimal—particularly useful in freezer and processing environments.
- IP66/IP67 and IK10 impact resistance with NEMA 4X stainless-steel housing: Withstands direct water spray, steam, and corrosive washdown chemicals without ingress. IK10 rating absorbs mechanical stress from personnel, equipment contact, and accidental impact. Operating range −10°C to +50°C covers freezer, cold-storage, and heated processing spaces without thermal shutdown.
- Object Analytics (Vivotek Vision on-camera detection): Filters motion alerts by object type and size, reducing false triggers from environmental noise (HVAC movement, shadows, debris). Warehouse and manufacturing sites benefit from personnel-vs.-environmental discrimination, lowering nuisance alarms and alert fatigue.
- PoE (802.3af) and 12VDC power options: Draws under 13W via standard 802.3af PoE injection, eliminating the need for a separate power supply on most midrange PoE switches. 12VDC alternative supports non-PoE infrastructure or extended cable runs where PoE power budget is exhausted.
- Two-way audio and microSD/SDHC/SDXC local edge recording: Built-in microphone and speaker enable real-time communication with facility personnel from remote locations. MicroSD card slot (up to 512GB capacity) provides edge recording as backup if primary network recording fails or for compliance-driven continuous local retention.
Integration & Compatibility
The FD9187-HT-V3(7-22 MM) outputs ONVIF-compliant streams, making it compatible with most network video recorders and VMS platforms. Motorized lens control integrates with Vivotek IP cameras management consoles and third-party ONVIF-compatible software. Two-way audio and microSD recording are supported across standard RTSP/HTTP protocols, reducing integration complexity on existing networks. Confirm your NVR or recorder supports motorized lens API commands if remote zoom adjustment is critical to your workflow.
Deployment Fit & Tradeoffs
Choose the FD9187-HT-V3(7-22 MM) when washdown durability and post-installation zoom flexibility justify the cost premium of a motorized lens. Skip this camera if you require 4K resolution (Vivotek's sealed dome line maxes at 5MP), outdoor operation (IP66 is indoor-rated only), or fixed-focal-length simplicity at lower cost. If your site needs multiple fixed domes at different focal lengths covering the same area, deploying two or three fixed-lens domes at half the per-unit cost may prove more practical than a single motorized unit. Verify your PoE switch power budget and cable run length before assuming 802.3af sufficiency on extended runs beyond 300 feet.
Frequently Asked Questions
Q: Is the FD9187-HT-V3(7-22 MM) suitable for outdoor mounting?
A: No. The IP66 rating is designed for indoor washdown, moisture, and spray exposure. Outdoor deployments require an outdoor-rated dome with higher IP protection (IP67 minimum) and UV-resistant housing. Check Vivotek's outdoor dome catalog for weatherproof alternatives.
Q: Can I adjust the zoom remotely after installation?
A: Yes. The motorized 7–22mm varifocal lens supports remote focal-length adjustment through ONVIF-compatible management software or the camera's web interface. No physical repositioning is required once the camera is mounted.
Q: What is the maximum IR range in complete darkness?
A: The FD9187-HT-V3(7-22 MM) delivers 50m infrared illumination. At typical indoor ceiling heights (8–10m), coverage is adequate. Beyond 12m horizontal distance from subjects, verify IR coverage in your specific facility layout before deployment.
Q: Does the FD9187-HT-V3(7-22 MM) support H.265 compression?
A: Yes. The camera supports H.265, H.264, and MJPEG codecs. H.265 reduces storage costs roughly 40–60% compared to H.264 on 24/7 recording. Ensure your NVR or management software supports H.265 before relying on it; older systems may require H.264 fallback.
Q: What is the power consumption, and will it work on standard 802.3af PoE?
A: The camera draws under 13W at peak operation, well within the 15.4W budget of IEEE 802.3af PoE. No separate power supply is required on compliant PoE switches. A 12VDC alternative is available for non-PoE infrastructure.
Q: Can I record locally to a microSD card if the network fails?
A: Yes. The FD9187-HT-V3(7-22 MM) includes a microSD/SDHC/SDXC card slot supporting up to 512GB capacity. Edge recording provides backup if the primary NVR loses connectivity, and it supports compliance-driven continuous local retention independent of network availability.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The FD9187-HT-V3(7-22 MM) is a deliberate engineering choice for harsh indoor environments where traditional domes either corrode or lack zoom flexibility. The combination of motorized varifocal optics with NEMA 4X stainless-steel housing is uncommon at this price point—you're paying for durability and post-installation adjustability, not for marketing.
Technical Highlights:
- P-iris motor control: Electronically manages aperture across lighting shifts without hunting or flicker. In cold-storage and processing areas with uneven illumination (skylights, dock doors, overhead worklights), this eliminates the oscillation artifacts that plague fixed-iris designs and degrade facial recognition confidence.
- H.265 codec with selective fallback: At under 13W power draw, the camera handles real-time H.265 encoding without thermal stress. On a 24/7 multi-camera system (5–10 units), H.265 trims storage costs roughly 50% versus H.264—meaningful on budget-constrained NVR deployments or when microSD edge recording is the primary retention method.
- IP66/IK10 stainless housing operating to −10°C: Survives direct washdown spray and corrosive detergents without ingress or condensation fogging. IK10 impact rating handles accidental contact from forklifts, pallet jacks, and personnel bumping during facility cleaning—industrial environments demand this resilience.
- 50m infrared with 3DNR suppression: The combination of 50m IR range and 3D noise reduction means you maintain object legibility in freezer environments where visible light is minimal and infrared grain is rampant. At 8–10m mounting height, IR coverage is reliable; beyond 12m, verify throw distance in your facility.
Deployment Considerations:
- Motorized lens adds mechanical complexity: ensure your NVR or management console supports ONVIF lens control API. Some legacy VMS platforms lack varifocal motor command support, reducing the zoom adjustment to manual on-camera web interface only.
- IP66 is indoor-rated only. If your "washdown area" has rain exposure or prolonged outdoor mounting, this camera is undersized—you need IP67 minimum. Verify facility classification before purchase.
- The 7–22mm motor focus does not self-focus automatically; focus ring adjustment requires initial commissioning. Once set, it holds steady across temperature swings typical in climate-controlled processing plants.
Deploy the FD9187-HT-V3(7-22 MM) in food processing plants, cold-storage facilities, and pharmaceutical manufacturing environments where sealed optics and remote zoom justifiably outweigh the cost of a fixed-lens alternative. In standard climate-controlled warehouses with minimal moisture, a cheaper fixed dome and wider spacing delivers equivalent coverage at lower total cost.
