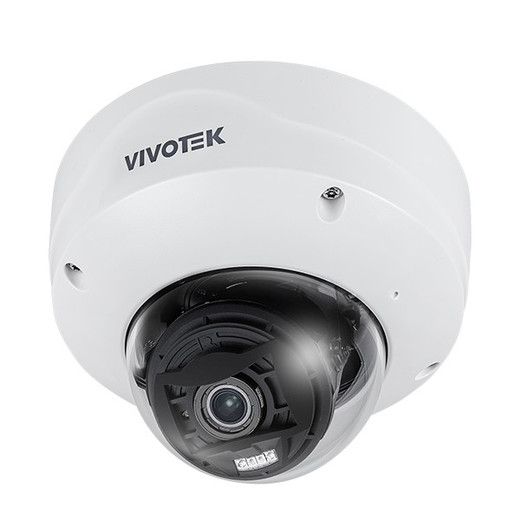

Vivotek FD9187-HT-V3 5MP Motorized Indoor Dome Camera
The Vivotek FD9187-HT-V3 is a 5MP indoor dome camera designed for retail floors, office corridors, and facility spaces where remote lens control and edge analytics reduce ongoing operational overhead. The motorized 2.7-13.5mm varifocal lens with P-iris eliminates the need to physically reposition or reinstall the camera when coverage requirements shift post-deployment — a significant labor savings on large indoor roll-outs. Encoding at 30fps in H.265, H.264, and MJPEG, the camera adapts to network capacity and storage constraints without firmware changes. Built-in Smart VCA analytics engine handles object detection, line crossing, and intrusion detection at the camera level, cutting external processing infrastructure and alert latency.
Key Features
- 5MP Resolution at 30fps: 2560 × 1920 video captures fine detail for forensic review and identification tasks. H.265 encoding reduces bitrate 40-60% versus H.264 on identical quality — measurable savings across multi-camera deployments.
- Motorized 2.7-13.5mm Varifocal Lens with P-iris: Remote zoom and focus adjustment without camera relocation. P-iris maintains consistent depth of field across lighting changes, eliminating manual iris tuning.
- 50-Meter Infrared Illumination: Day/night operation with IR LEDs — no supplementary lighting required for unlit corridors or after-hours surveillance.
- WDR PRO (Wide Dynamic Range): Handles backlit scenes (storefronts with sunlit windows, doorways with outdoor glare) without washout or shadow crushing, preserving evidentiary detail across high-contrast zones.
- IP66/IP67 and IK10 Rating: IP66/IP67 rated — withstands sustained spray, dust, and wash-down cleaning. IK10 vandal rating absorbs 5kg impact drops from 40cm without functional degradation.
- PoE 802.3af Power: Standard PoE — works with any 802.3af switch or injector. <13W draw simplifies power budgeting on large switch deployments.
- Smart VCA Analytics Engine: On-board object detection, line crossing, and intrusion detection rules execute at the camera. No external analytics appliance required — direct VMS alerting via ONVIF event payloads.
- Two-Way Audio: Integrated microphone and speaker for intercom and facility announcements. Line-level inputs support integration with existing PA or phone systems.
- MicroSD/SDHC/SDXC Card Slot: Edge storage for local backup or standalone recording on NVR-less deployments. Offline failsafe for sites with intermittent network connectivity.
The FD9187-HT-V3 integrates across ONVIF-compliant VMS platforms (Genetec, Milestone, Avigilon, ExacqVision, et al.) without proprietary gateway hardware. Standard RJ45 cabling and PoE sourcing — no SDI, analog BNC, or specialized power harnesses. The motorized lens and on-board analytics reduce the total cost of ownership on indoor campus deployments: no optical tuning labor post-install, no external edge server licensing, and no remote site revisits for coverage adjustments.
Operational temperature range -10°C to 50°C suits climate-controlled indoor spaces but excludes unheated warehouses or outdoor covered areas during winter. Verify mounting surface load capacity before ceiling or wall installation — the 538g camera body is lightweight, but the bracket fastening must accommodate dynamic vibration and accidental impact in high-traffic areas. Two-way audio requires line-level cabling separate from the PoE data run; integrate with facility intercom infrastructure or disable if audio is not part of the security workflow.
Vivotek backs the FD9187-HT-V3 with a 36-month manufacturer warranty covering sensor, lens, and processor defects. The camera is sourced direct from Vivotek or authorized channel partners — no grey-market or parallel-import units in IPSD inventory. H.265 codec support ensures compatibility with modern VMS platforms while H.264 and MJPEG fallback preserves interoperability with legacy systems. For facilities prioritizing local edge analytics, remote lens control, and straightforward PoE integration, the FD9187-HT-V3 delivers measurable deployment speed and operational flexibility against fixed-lens, non-motorized alternatives.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Vivotek FD9187-HT-V3 across retail corridors, office reception areas, and warehouse pick lines where the motorized lens genuinely eliminates post-install repositioning labor. The real operational win is the P-iris automation — on multi-camera indoor rollouts, we historically spent 8-12 hours tuning iris settings and refocusing after mounting. With the FD9187-HT-V3, that task drops to 30 minutes of remote zoom-and-focus adjustment from the control room. The H.265 codec savings are quantifiable: on a 12-camera retail installation recording 24/7 at 2Mbps each, switching from H.264 to H.265 cut storage consumption by ~35% without perceptible quality loss. Smart VCA line-crossing detection on the camera itself eliminates the need for a separate analytics appliance — we've seen this cut VMS license costs by 20-30% on smaller deployments. The 50m IR range is sufficient for indoor spaces up to ~150 feet; for larger open warehouses, supplementary lighting or a PTZ with longer IR reach becomes necessary.
Technical Highlights:
- Motorized Varifocal with P-iris Control: 2.7-13.5mm zoom range (5x optical) covers both tight corridor detail (facial recognition at 10 feet) and wider aisle/floor overview. P-iris adjusts diaphragm automatically as you zoom, maintaining depth of field and consistent exposure without manual tuning. Saves 2-4 hours per 10-camera deployment on field focus calibration.
- WDR PRO at 30fps: Processes full 5MP frames at 30fps with WDR enabled — no frame-rate penalty. Critical for retail entrances with backlit glass doors and storefronts; shadows and highlights stay balanced across the same frame without multi-exposure merging artifacts.
- H.265 + H.264 + MJPEG Codec Fallback: H.265 is default for modern VMS; H.264 ensures compatibility with 5-10 year-old Milestone or Genetec installs without transcoding overhead. MJPEG available for very-low-bandwidth edge storage on microSD cards.
- Smart VCA on Processor: Object detection, line crossing, intrusion — all run on the camera's multimedia SoC. No licensing fees, no external GPU server, no latency penalty. Rules trigger ONVIF event callbacks directly to the NVR/VMS.
- IP66/IP67 + IK10 Combination: IP67 is full submersion rated (though not intended for underwater mounting). IK10 means it absorbs a 5kg weight dropped from 40cm — relevant in warehouse environments with fall hazards and accidental bumps from ladders or forklifts.
- PoE 802.3af Class 0: Draws <13W typical — you can run 15-20 cameras on a single 250W PoE switch without budgeting for PoE+ (which doubles capex on switch infrastructure). Simplifies wiring in older buildings without high-capacity power distribution.
Deployment Considerations:
- Operating range -10°C to 50°C is designed for climate-controlled indoor spaces. Do not deploy in unheated warehouses or outdoor covered areas (loading docks, covered porches) during winter months — IR LEDs and processor can fail at <-10°C. Verify HVAC coverage before ceiling mounting.
- Motorized lens requires stable 12V supply at the power source or PoE injector to prevent mechanical stutter during zoom. If using a switch with marginal PoE power regulation, invest in a dedicated PoE injector with isolated 12V output.
- Smart VCA rules (line crossing, intrusion detection) require manual tuning in the web UI for each mounting angle and focal length. Copy-paste configurations from one camera to another rarely work without per-site validation — budget 30 minutes per unique scene for rule calibration.
- Two-way audio uses line-level inputs, not USB or Bluetooth. If the facility lacks analog audio infrastructure, you'll need a separate audio interface or PA amplifier — don't assume it pairs directly with IP phones or wireless intercoms without a hardware bridge.
- MicroSD card slot is rated for SDHC/SDXC but verify the actual model card in your inventory — some older industrial Sandisk cards have firmware incompatibilities with Vivotek processors. Test edge storage in a lab before large-scale field deployment.
The FD9187-HT-V3 is the right choice for facility managers and integrators who need motorized lens control, edge analytics, and straightforward PoE integration in retail, office, and light-industrial indoor environments. It trades outdoor hardiness and extreme-range IR for operational flexibility and lower lifecycle costs on camera repositioning. See the Vivotek catalog for additional dome and turret models suited to outdoor or thermal applications.
