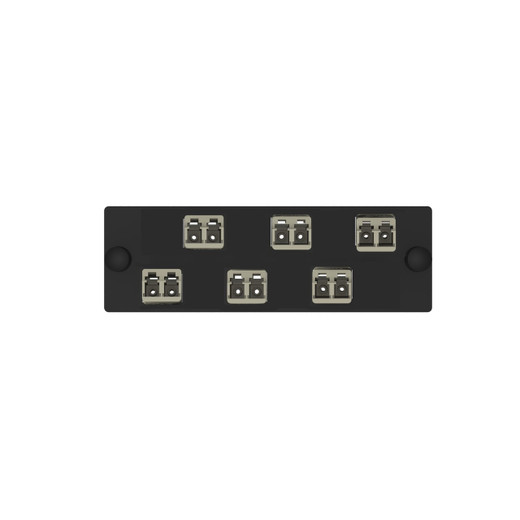

Panduit FAP6WEIDLCZ Opticom Front-Load LC Duplex Fiber Adapter Panel
Overview
The Panduit FAP6WEIDLCZ is a six-port, front-loading fiber optic adapter panel from the Opticom™ product line, designed for structured cabling installations that demand clean, organized fiber terminations in standard rack or cabinet enclosures. At 1.38 inches tall (35.2 mm) and 4.3 inches wide (109.1 mm), this panel conforms to EIA-310 and IEC 60297 rack standards — meaning it drops into any compliant 19-inch patch enclosure without modification or adapter hardware.
Each panel ships pre-loaded with six LC Duplex fiber optic adapters in electric ivory, fitted with zirconia split sleeves. Zirconia ferrule sleeves are the correct choice for low-insertion-loss terminations on both single-mode and multimode fiber: the ceramic bore holds precise alignment across OM1, OM2, OM3, OM4, and OS2 fiber types, so the FAP6WEIDLCZ serves mixed-fiber environments without requiring panel swaps as the cabling plant evolves.
For fiber optic patch panels used in security, AV, or enterprise LAN backbones, the Opticom front-load design means adapters can be accessed and replaced from the front of the cabinet — no rear access required. That matters in dense rack environments where rear clearance is limited or where cable management trays restrict movement.
Key Features
- Six LC Duplex Adapters Pre-Installed: LC Duplex is the dominant small-form-factor fiber connector in enterprise and security system cabling. Six ports in a compact 1.38-inch-tall panel gives you 12 fiber paths — useful in network switch uplink bays or mid-span patch points where port density per rack unit matters.
- Zirconia Split Sleeves: Precision-bore ceramic sleeves maintain sub-micron ferrule alignment, which keeps insertion loss predictable across the panel's full range of supported fiber types. This is particularly relevant on long-run singlemode (OS2) links where even 0.3 dB of unexpected loss can affect link budget calculations.
- OM1/OM2/OM3/OM4/OS2 Fiber Compatibility: The panel accommodates the full range of multimode grades plus OS2 singlemode — so it works equally in legacy OM1/OM2 closet runs and in new OM4 or OS2 backbone installations. No need to stock separate panels by fiber type for a mixed facility.
- EIA-310 / IEC 60297 Compliance: These are the governing dimensional standards for 19-inch rack equipment. Compliance means the FAP6WEIDLCZ physically fits and securely mounts in any standard open-frame rack, wall-mount enclosure, or floor cabinet conforming to those specs — no improvised mounting required.
- RoHS Compliant: Meets the EU Restriction of Hazardous Substances directive. Required for projects with environmental compliance mandates, LEED-qualified installations, or public-sector procurement that specifies RoHS conformance.
- Electric Ivory Adapter Color: The ivory adapter color follows Panduit's color-coding convention for fiber type identification, which reduces mis-patching errors in high-density cross-connects where adjacent panels may carry different fiber grades or applications.
- Front-Load Design: Adapters are accessible and serviceable from the front of the panel. In real-world rack environments — particularly in security equipment rooms with tight rear clearance — front serviceability reduces maintenance time and avoids cable disruption when replacing a worn or damaged adapter.
- Compact Form Factor (1.38
