Panduit FAP6WAGDLCZ Front-Load Fiber Adapter Panel, 6 LC APC Duplex, OS2

Overview

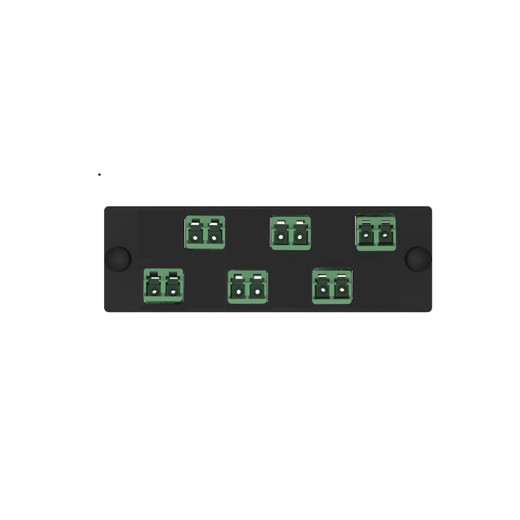

The Panduit FAP6WAGDLCZ is a front-loading fiber optic adapter panel from the Opticom™ series, housing six LC APC duplex adapters in a compact 1U-compatible form factor. Measuring 4.3 in. wide × 1.38 in. tall (109.1 mm × 35.2 mm), this panel slots cleanly into EIA-310 and IEC 60297 compliant enclosures — the same rack standards that govern the vast majority of structured-cabling cabinets deployed in enterprise and data center environments. If you're terminating OS2 single-mode fiber runs in a rack or wall-mount enclosure, the FAP6WAGDLCZ gives you a dense, organized, and factory-clean termination point without field-polishing a single connector.

The APC (angled physical contact) adapter format is the correct choice when you need to minimize return loss on single-mode links — APC connectors deliver better than -65 dB typical return loss versus -50 dB for UPC, which matters on long-haul or high-sensitivity optical transport links. The green APC adapter colorway is the industry-standard visual identifier, so installers and technicians won't accidentally cross-connect APC and UPC tails at the panel.

Key Features

• Six LC APC Duplex Ports — 12 Fibers Per Panel: Each panel handles 12 individual OS2 fibers via six duplex LC connections. In a typical 2U enclosure holding four panels, that's 48 fibers terminated and organized — enough for a full 40GbE or 8×10GbE uplink spine without pulling additional hardware.
• Zirconia Split Sleeves: The split-sleeve ferrule alignment inserts are zirconia ceramic — harder and more dimensionally stable than phosphor bronze sleeves. This directly translates to lower and more consistent insertion loss values over repeated mate/demate cycles, which matters in patching environments where ports get moved during moves, adds, and changes.
• APC Green Adapter Color — Visual Error Prevention: All six adapters carry the APC green identification color. In a mixed-fiber environment — single-mode APC and UPC living in adjacent panels — this prevents the common and expensive mistake of patching an APC-polished jumper into a UPC-polished adapter and generating a reflectance spike that degrades link performance.
• OS2 Single-Mode Rated, Multi-Mode Compatible: The panel is specified for OS2 single-mode fiber but also accommodates OM1, OM2, OM3, and OM4 multi-mode fiber types via the same LC interface. If your environment is transitioning from legacy OM3 multi-mode to OS2 single-mode — a common pattern as runs extend beyond 300 m — you won't need to swap panels. Note: APC-polished jumpers should only be used with APC adapters regardless of fiber type.
• EIA-310 / IEC 60297 Compliant: Physical dimensions conform to both the North American EIA-310 and international IEC 60297 rack standards. This means the FAP6WAGDLCZ seats into any standard 19-inch rack or enclosure without adapter plates, spacers, or per-vendor mounting kits — a meaningful time saver when populating a full rack with multiple panels.
• RoHS Compliant Construction: Plastic body meets RoHS (Restriction of Hazardous Substances) requirements. For projects with environmental compliance mandates — government facilities, EU-destined deployments, LEED-certified builds — the panel clears the standard without any documentation chase.
• Front-Load Design: The front-loading adapter plate style lets technicians swap or reconfigure adapter modules without removing cables from the rear of the enclosure. In live production environments, this is the difference between a scheduled 5-minute patching change and a 30-minute outage window.
• Compact Form Factor (1.38 in. tall): At 35.2 mm height, this panel fits into fiber enclosures and patch shelves without consuming a full rack unit, leaving space for cable management accessories and other structured cabling components in density-constrained deployments.

Integration & Compatibility

The FAP6WAGDLCZ is part of the Panduit Opticom™ fiber panel system, designed to populate Panduit fiber enclosures and compatible third-party enclosures conforming to EIA-310 or IEC 60297. It accepts standard LC APC duplex fiber patch cables and pigtails — Panduit's own LC APC jumpers or any third-party LC APC–terminated cord will mate correctly. The panel is sold as a single unit (Package Qty: 1) and is available in carton quantities of 10 for large-scale structured cabling projects.

For high-density single-mode deployments in fiber enclosures and patch panels, the Opticom™ series supports a modular build-out: install additional adapter panels alongside cassette modules in the same enclosure to mix connection types as your fiber plant evolves. For runs requiring longer reach on OS2 single-mode — backbone interconnects between IDF and MDF, campus fiber rings — pair this panel with OS2 LC APC simplex or duplex patch cables rated for the specific span distance and loss budget of your link.

When planning port counts, account for the front-load form factor: ensure the target enclosure supports the FAP6WAGDLCZ's 4.3 in. × 1.38 in. footprint and that the enclosure's rear cable management accommodates the OS2 fiber routing radius requirements (typically 30 mm minimum bend radius for OS2).

What's in the Box

• 1× Panduit FAP6WAGDLCZ Front-Load Fiber Adapter Panel (6 LC APC Duplex ports, OS2, Opticom™)

Frequently Asked Questions

Q: Is the FAP6WAGDLCZ compatible with UPC-polished LC connectors and jumpers?

A: The FAP6WAGDLCZ uses APC (angled physical contact) adapters with the standard APC green color identification. APC adapters are physically compatible with UPC connectors in that they will accept them, but this combination degrades return loss performance significantly and is not recommended. For UPC terminations, use a UPC-style adapter panel. Keep APC and UPC panels clearly segregated in your enclosure layout.

Q: What fiber types does the FAP6WAGDLCZ support?

A: The panel is rated for OS2 single-mode fiber and is also compatible with OM1, OM2, OM3, and OM4 multi-mode fiber types via the LC interface. However, because the adapters are APC-polished, only APC-terminated jumpers should be connected regardless of fiber type to maintain return loss specifications.

Q: How many fibers does one FAP6WAGDLCZ panel terminate?

A: Each panel terminates 12 individual fibers through six LC duplex (2-fiber per connector) adapter ports. To calculate density for your enclosure, multiply the number of panel slots by 12 fibers per panel.

Q: Does the FAP6WAGDLCZ fit standard 19-inch rack enclosures?

A: Yes. The panel conforms to EIA-310 and IEC 60297 standards, covering standard 19-inch rack enclosures used across North American and international deployments. The panel measures 4.3 in. (109.1 mm) wide × 1.38 in. (35.2 mm) tall, fitting into Panduit Opticom™ enclosures and compatible third-party enclosures meeting those rack standards.

Q: Is the FAP6WAGDLCZ RoHS compliant?

A: Yes. The FAP6WAGDLCZ meets RoHS (Restriction of Hazardous Substances) requirements, making it suitable for projects with environmental compliance mandates including EU deployments and government facilities with green procurement requirements.

Q: What is the carton quantity for the FAP6WAGDLCZ?

A: The FAP6WAGDLCZ ships as a single unit (Package Qty: 1). Carton quantity is 10 panels, which is the typical procurement unit for large structured cabling projects requiring multiple panels in the same enclosure or across multiple racks.

Ted Perry

The FAP6WAGDLCZ is the panel I spec when a project calls for OS2 single-mode termination in a standards-rack enclosure and the fiber plant will see regular patching activity. The zirconia split sleeves are the detail worth paying attention to here — ceramic alignment inserts hold tighter dimensional tolerances than phosphor bronze over thousands of mate cycles, which keeps insertion loss consistent in active distribution frames rather than drifting upward after the first year of MACs.

Technical Highlights:

• 12-Fiber Density in 1.38 in. Height: Six LC duplex ports at 35.2 mm tall means you can stack four of these in under 6U of enclosure space and terminate 48 OS2 fibers — enough for a 4×40GbE uplink bundle — without a cassette-style housing or special enclosure depth.
• APC Green Visual Identification: The green adapter colorway is baked into TIA-568 and IEC 61753 visual coding standards. In a mixed-fiber-type MDF where UPC and APC panels live in the same rack, this is a genuine mistake-prevention feature, not cosmetic — a cross-connected APC/UPC pair can produce a reflectance event that triggers alarms on sensitive DWDM or coherent optics links.
• EIA-310 / IEC 60297 Dual Compliance: The 109.1 mm × 35.2 mm footprint clears both the North American and international rack standards, so this panel ships internationally and seats without adapter hardware in virtually any 19-inch structured-cabling cabinet your team is likely to encounter.

Deployment Considerations:

• The front-load design works best when the target enclosure provides rear-entry cable routing with adequate slack management. Verify your enclosure depth accommodates the OS2 minimum bend radius (typically 30 mm) before committing to high-density panel population — compressed OS2 tails behind a front-load panel are a common post-install loss troubleshooting source.
• This is an APC-only panel — do not stock UPC jumpers in the same patch field without a clear labeling protocol. The physical adapter will accept a UPC ferrule, but the angled endface mismatch generates a return loss penalty that can be difficult to trace without an OTDR after the fact.

The FAP6WAGDLCZ is well-suited for enterprise IDF-to-MDF single-mode backbone terminations and data center top-of-rack fiber aggregation points where patching frequency is moderate-to-high and connector endface consistency across moves, adds, and changes is a real operational concern — specifically in environments running coherent optics or high-sensitivity transceivers where return loss margins are tight.
