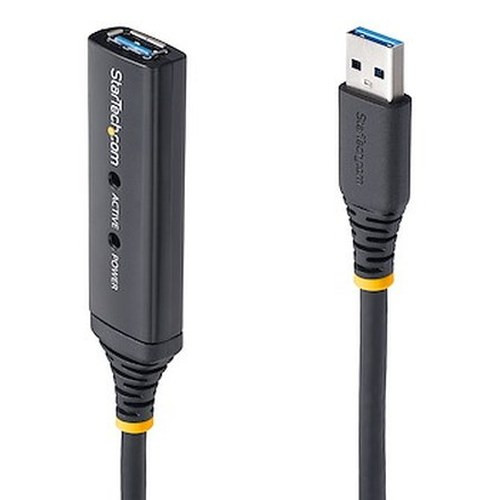

StarTech USB3AAEXT3M USB 3.0 Active Repeater Extension Cable

Overview

The StarTech USB3AAEXT3M is a 3-meter active USB 3.0 extension cable built around a VIA VL210 repeater chipset — the right tool when a fixed-install USB device (barcode scanner, document camera, industrial sensor, or USB capture device) sits just far enough from the host that passive cables start dropping packets or failing enumeration entirely. Unlike a passive extension that simply adds wire length and hopes for the best, the VL210 actively regenerates the USB 3.0 signal, letting you maintain the full SuperSpeed 5 Gbps link over the entire run. If you work with USB connectivity solutions in commercial AV or security installations, this is a component worth understanding in detail before wiring a rack or permanent mount.

The USB3AAEXT3M ships with a built-in power supply section rated at 100–240V AC input, drawing 0.35A and delivering a regulated 5V DC at up to 2A output — meaning the repeater electronics have a stable power foundation regardless of whether your host port is marginal or the cable run is stressed. This matters in installations where the USB host is a server or NVR with a loaded USB bus.

Key Features

• 5 Gbps SuperSpeed USB 3.0 throughput: The VIA VL210 chipset actively regenerates the signal to sustain the full USB 3.0 SuperSpeed 5 Gbps data rate across the 3-meter run. In practice, this means high-bandwidth devices — HD webcams, USB 3.0 capture cards, external drives — transfer at full rated speed rather than falling back to USB 2.0 rates when cable length degrades signal integrity.
• Active signal repeater — not passive: Passive USB extension cables introduce resistive loss and reflection that causes devices to drop off-bus or enumerate at USB 2.0 speeds beyond 1–2 meters. The VL210 retimes and reshapes the signal at the cable's midpoint, eliminating that degradation and making the 3-meter run transparent to the host controller.
• Type-A to Type-A connector geometry: Both ends terminate in USB Type-A connectors, so the cable inserts directly into an existing USB 3.0 Type-A host port and accepts any standard USB 3.0 Type-A peripheral — no adapter, no dongle, no converter needed. Keeps the install clean in rack cabinets or equipment bays.
• Built-in regulated power supply (100–240V AC, 5V DC / 2A): The on-board supply handles the repeater's power demand independently from the host USB port. Since USB 3.0 ports are nominally rated at 900mA, a repeater drawing from the bus competes with the peripheral. The integrated AC adapter eliminates that contention, protecting both the host controller and the downstream device.
• 10W maximum power consumption: The complete unit draws no more than 10W from the AC outlet — comparable to an LED desk lamp. This is a non-issue for rack power budgeting, but worth noting if you're counting outlets in a tight enclosure.
• Universal AC input (100–240V, 50/60Hz): Accepts any standard wall voltage worldwide, so the same unit deploys in North American 120V installations and international 230V environments without a step-down transformer.
• Compact form factor (86.5 × 22 × 12 mm, 147g): The repeater inline module is small enough to sit behind equipment or inside a cable management channel without creating bulk. The 147g total weight means it won't pull connectors loose under its own weight in vertical installations.

Integration and Compatibility

The USB3AAEXT3M is compatible with any USB 3.0 SuperSpeed host controller. USB 3.0 is backward-compatible with USB 2.0 and USB 1.1 peripherals, so if you need to extend a legacy USB 2.0 device, this cable will work — though the device will operate at USB 2.0 speeds since that is the peripheral's limit, not the cable's. For deployments integrating USB cameras or capture devices with a network video recorder, confirm the NVR's host controller is USB 3.0 before purchasing — this cable cannot upgrade a USB 2.0 port to 3.0 speeds.

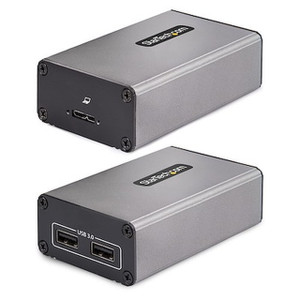

If your installation requires extending a USB device beyond 3 meters, note that USB 3.0 specifications do not directly allow daisy-chaining active extension cables without a powered USB hub between segments. For runs longer than 3 meters, evaluate a USB 3.0 over-fiber or USB extender solution rather than chaining multiple active cables. For guidance on matching USB connectivity to your architecture, review a structured cabling planning guide.

The 2-year manufacturer warranty provides a reasonable service horizon for an infrastructure component. For USB accessories and cabling used in commercial fixed installations, document the install date and retain the purchase record to support any warranty claim.

Frequently Asked Questions

Q: What chipset does the USB3AAEXT3M use, and why does it matter?

A: The USB3AAEXT3M uses a VIA VL210 active repeater chipset. This chip actively retimes and regenerates the USB 3.0 SuperSpeed signal rather than passively extending the wire, which is what allows the cable to maintain a full 5 Gbps data rate over the 3-meter run without signal degradation or USB 2.0 fallback.

Q: Does the USB3AAEXT3M need to be plugged into AC power to work?

A: Yes. The USB3AAEXT3M includes an integrated power supply rated at 100–240V AC input, 5V DC / 2A output. The repeater electronics require this power to regenerate the signal. The AC connection also ensures the repeater does not draw power from the host USB port, which protects devices on a loaded USB bus.

Q: Can I daisy-chain two USB3AAEXT3M cables for a 6-meter run?

A: USB 3.0 specifications do not directly support daisy-chaining active extension cables. For runs beyond 3 meters, a powered USB 3.0 hub between segments or a dedicated USB 3.0 extender (over Cat6 or fiber) is the correct architecture. Chaining active cables may cause enumeration failures or unreliable operation.

Q: Does the USB3AAEXT3M work with USB 2.0 devices?

A: USB 3.0 is backward-compatible with USB 2.0 and USB 1.1 peripherals, so a USB 2.0 device connected through the USB3AAEXT3M will function — but it will operate at USB 2.0 speeds (up to 480 Mbps), not 5 Gbps, since the device itself is the throughput bottleneck.

Q: What is the warranty on the USB3AAEXT3M?

A: The USB3AAEXT3M carries a 2-year manufacturer warranty.

Q: What connector types are on each end of the USB3AAEXT3M?

A: Both ends use USB Type-A connectors — one plugs into a USB 3.0 Type-A host port, and the other accepts any standard USB 3.0 Type-A peripheral. No adapters are required.

James Everett

The detail most installers overlook on the USB3AAEXT3M is the independent AC power supply — rated at 100–240V input, 5V DC at 2A output. In a loaded NVR or server environment where the USB host controller is already powering multiple peripherals, a bus-powered repeater becomes a liability. The USB3AAEXT3M sidesteps that entirely by powering the VIA VL210 repeater from the wall, not from the host port. That design decision is what makes this a reliable infrastructure component rather than a convenience cable.

Technical Highlights:

• VIA VL210 Active Repeater: Signal retiming at the chipset level sustains the full 5 Gbps SuperSpeed USB 3.0 throughput across the 3-meter run — passive cables at this length will often drop to USB 2.0 speeds or fail enumeration entirely under signal load.
• Independent Power Architecture (5V DC / 2A): The on-board supply delivers 2A to the repeater, completely removing the power draw from the USB host bus. This protects the host controller in multi-device deployments and prevents the repeater from starving downstream peripherals of bus power.
• Compact Repeater Module (86.5 × 22 × 12 mm, 147g): Small enough to route inside cable management trays or sit behind rack-mounted equipment without adding strain to connectors — relevant in fixed installations where vibration or cable tension over time can cause intermittent contact faults.

Deployment Considerations:

• Confirm the host port is USB 3.0 before installation — the USB3AAEXT3M cannot upgrade a USB 2.0 host port to SuperSpeed rates. Check the host controller spec sheet, not just the physical connector shape, since some systems use USB 3.0-shaped ports wired internally as USB 2.0.
• The 10W AC power draw requires an accessible outlet near the host end of the cable. In rack deployments, account for this in your PDU outlet count — it is a small draw but still requires a dedicated outlet position.

This cable is the right fit for a fixed commercial installation — a USB 3.0 camera mounted 3 meters from a capture workstation, a barcode scanner positioned at the edge of a reading station, or a USB storage device in an AV rack where the host is across the equipment bay. It is not a field-portable solution given the AC power requirement, and it is not a substitute for a proper USB extender when runs exceed 3 meters.
