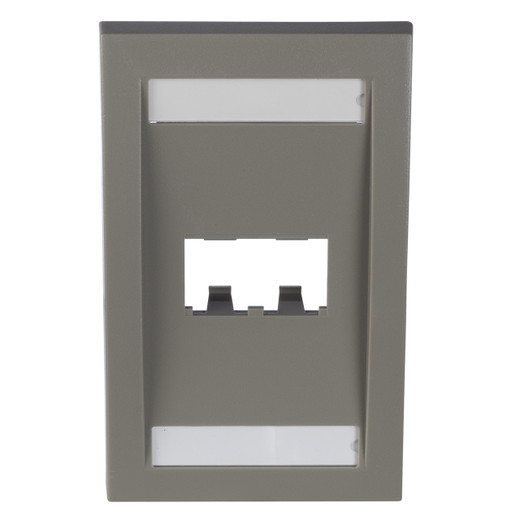

Panduit CFPE2IGY Mini-Com Executive 2-Port Faceplate
The Panduit CFPE2IGY is a single-gang faceplate engineered for structured cabling installations requiring clean termination of two Mini-Com modules in commercial access-control, surveillance PoE drop points, and enterprise data networks. The Executive Series design features a raised outer rail that protects installed modules from impact during furniture placement or maintenance activity, while the integrated label pocket eliminates the need for aftermarket labeling that peels or fades in mechanical rooms or plenum-adjacent installations.
Key Features
- Accepts two Mini-Com modules (sold separately) in NEMA standard single-gang opening
- Raised rail perimeter guards installed jacks against lateral stress during plug insertion
- Integrated label pocket for port identification without adhesive labels
- ABS construction resists UV yellowing and maintains color consistency in high-traffic areas
- International Gray finish matches Panduit’s Pan-Net infrastructure hardware and most commercial junction boxes
- 4.5" H × 2.75" W dimensions provide ANSI/TIA-568 compliant wire-bend radius clearance behind faceplate
- RoHS compliant for installations subject to EU or California environmental mandates
Installation follows the standard single-gang workflow: mount a metal or plastic new-work/old-work box, snap two Mini-Com modules into the faceplate’s keystone ports, dress cables to meet the TIA-568-C.0 6-inch service loop requirement, terminate to the modules’ rear IDC blocks or RJ45 sockets, then secure the faceplate to the box with #6-32 screws (faceplate ships with screw slots compatible with both metal and plastic box ears). The raised rail design adds 0.060" standoff around the module’s perimeter, absorbing torque from side-angled plug insertions that would otherwise stress the module’s retention clips—critical in access-control reader drops where installers force oversized RJ45 boots into tight alcoves or behind proximity card housings.
The label pocket accepts paper or laminated inserts up to 0.030" thick, letting you document port assignment (Data / PoE, Reader / REX, Camera / Alarm) without write-on tape that obscures the faceplate’s professional finish. ABS material withstands the 140°F plenum temperatures common in drop-ceiling spaces above IT closets or electrical rooms, and resists the chalking and brittleness that affects cheaper polycarbonate faceplates after three to five years of fluorescent or LED exposure. International Gray (RAL 7035 equivalent) coordinates with Panduit’s LD series cable duct, surface-mount boxes, and patch-panel frames, maintaining color consistency across the structured cabling plant.
Pair with Panduit CJ688TGIG (Cat6A shielded), CJ5E88TGIG (Cat5e), or fiber Mini-Com modules to build hybrid copper/fiber drops for IP cameras requiring both PoE data and dedicated fiber uplink to a core switch. The 10-pack carton quantity aligns with typical cable-pull batches—order one carton per ten-drop floor build-out, then stock the balance for future adds/moves/changes without mixing faceplate styles or colors mid-project. RoHS compliance satisfies GSA and state procurement rules requiring lead-free and low-halogen components in government and healthcare installations.
