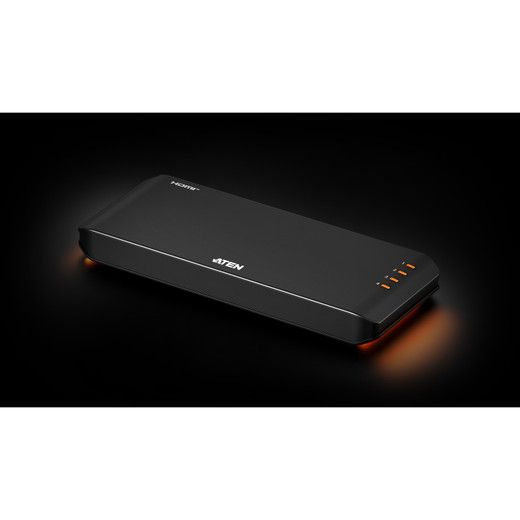

ATEN VS4814 4K HDMI Splitter
Overview
The ATEN VS4814 is a 4-port 4K HDMI splitter designed for installations requiring identical, high-resolution video distribution from a single source to multiple displays. It maintains uncompressed 4:4:4 color sampling, ensuring pristine image quality for critical applications like digital signage, control rooms, or video wall setups where visual fidelity is paramount. Its rack-mountable form factor integrates cleanly into standard IT infrastructure. The VS4814 supports distributing a 3840x2160 @ 60Hz signal up to 3 meters from the source, powered via USB-C.
Compatibility
This splitter is compatible with any HDMI 2.0 source device outputting up to 3840x2160 @ 60Hz (4:4:4). It supports standard HDMI Type A female connections on the output side, making it suitable for use with a wide range of commercial displays, projectors, and AV receivers that adhere to HDMI 2.0 specifications. It requires a source device capable of outputting the specified resolution and refresh rate.
Installation Notes
The VS4814 requires a USB-C power input (5V/1A), supplied via the included 1-meter USB Type-C to Type-A cable. Ensure the connected USB port can provide sufficient power, or use an external USB power adapter. The maximum signal transmission distance is limited to 3 meters for 4K @ 60Hz (4:4:4) resolution; longer distances will require active HDMI extenders. Operating humidity should remain between 0-80% RH, non-condensing.
