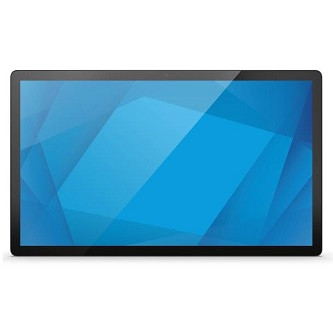

ELO Touch E392786 Interactive Display Monitor
Overview
The ELO Touch E392786 is a 15.6-inch full HD interactive display built on Android 10 with Google Mobile Services (GMS). This model targets integrators deploying enterprise kiosks, point-of-service terminals, patient check-in systems, and interactive information walls where reliability and responsiveness matter. The Rockchip 3399 processor paired with 4GB RAM and 32GB internal storage delivers predictable performance for business applications without the overhead of a full PC—and without the licensing complexity either.
Key Features
- 15.6-inch Full HD (1920 × 1080) IPS Display: Standard desktop resolution in a compact form factor means you deploy familiar UI layouts without pixel-density surprises. IPS viewing angles keep the display legible from multiple simultaneous users—critical for kiosk and information-wall deployments where foot traffic approaches from unpredictable angles.
- Projected Capacitive 10-Point Touch: Multi-touch responsiveness eliminates the jitter and edge-detection issues you see with older resistive or single-touch panels. Ten simultaneous touch points support pinch-zoom and gesture-driven interfaces without lag or false triggers, even under gloved operation in warehouse and manufacturing settings.
- Android 10 with Google Mobile Services: Builds on a stable, proven OS kernel. GMS certification means Google Play access—useful if your deployment relies on third-party Android apps, though you'll want to plan app distribution and updates centrally in a B2B environment rather than relying on individual Google account sign-in across a fleet.
- Rockchip 3399 Processor, 4GB RAM, 32GB Flash Storage: This mid-range ARM SoC sits between entry-level Cortex-A53 and premium Cortex-A73 territory. Handles simultaneous app execution, video playback, and local data caching without freezing. 32GB internal storage is sufficient for preloaded content and app binaries; expect roughly 20–22GB available after OS footprint. No microSD expansion in the spec sheet, so validate your content size upfront if you plan a large offline library.
- Wi-Fi and Ethernet Connectivity: Dual network paths mean the E392786 can stay online even if your Wi-Fi drops. Ethernet provides deterministic bandwidth and is mandatory if you're deploying in a warehouse automation or manufacturing floor environment where Wi-Fi is unreliable or prohibited for compliance reasons.
- Bluetooth 5.0: Enables pairing with wireless peripherals—barcode scanners, payment terminals, printers—without USB cable clutter. Bluetooth 5.0 offers range and throughput improvements over 4.2, reducing dropout in multi-device environments.
- 5MP Integrated Camera: Included for video conferencing, photo capture, or identity verification workflows. 5MP is adequate for head-shot quality at 24-inch distance but not suitable for wide-angle room documentation or high-detail barcode/document scanning. Treat it as a secondary feature; don't architect a system around it.
- EloView Compatibility: Enables remote monitoring and management of E392786 units across a fleet. If you're deploying dozens of these displays, EloView centralizes OS updates, app provisioning, and diagnostics—reducing field-service labor. Verify EloView licensing and cloud infrastructure costs in your budget.
Integration & Compatibility
As an Android device, the E392786 integrates with any Android application developer kit. ONVIF compatibility is not applicable since this is not a camera or NVR; however, the integrated camera can feed into video conferencing apps (Zoom, Teams, etc.) if configured. The device supports standard Android enterprise management frameworks—Intelligent Device Management (IDM), Samsung Knox (if third-party MDM adopted), or open Mobile Device Management protocols. Network integration is straightforward: Wi-Fi 802.11a/b/g/n/ac and standard RJ-45 Ethernet. No mention of 5GHz or Wi-Fi 6 in the spec, so assume 2.4GHz primary for Wi-Fi and plan your site survey accordingly.
When to Choose a Different Model
If your deployment requires higher resolution (1440p or above) for detailed charts or small-text readability at distance, step up to a larger ELO I-Series variant. If you need passive outdoor operation (zero active cooling, full IP67 ingress protection), this model is indoor-only and unsuitable. For applications requiring onboard storage larger than 32GB (e.g., offline video libraries or local database replication), confirm expansion options or consider a full-featured Android tablet with microSD or a traditional PC-based terminal.
Frequently Asked Questions
Q: What warranty period does the E392786 carry?
A: Consult the product documentation or contact the manufacturer directly for warranty terms specific to your region and sales channel.
Q: Can I expand storage beyond 32GB on the E392786?
A: The specification sheet does not indicate microSD or external storage expansion. Storage is limited to the 32GB internal flash (approximately 20–22GB usable after OS footprint). Plan your app and content size accordingly or validate expansion capabilities with the manufacturer before deployment.
Q: Does the E392786 support mobile device management (MDM)?
A: Yes, as an Android 10 device, the E392786 is compatible with standard Android MDM frameworks. However, no specific MDM platform is called out in the specification. Work with your IT team or MDM vendor to confirm agent compatibility and enrollment procedures before large-scale deployment.
Q: What is the maximum brightness or ambient light rating for the E392786?
A: Brightness and ambient-light specifications are not provided in the available product data. If the display will operate in high-brightness environments (direct sunlight, bright retail floors), request brightness and anti-glare specifications from the manufacturer before finalizing your site plan.
Q: Is the E392786 suitable for outdoor or wet-environment use?
A: No. This model is designed for indoor deployment. There is no IP rating or water-resistance specification. Do not expose to rain, direct moisture, or extreme temperature swings—deploy only in climate-controlled indoor spaces.
Q: Does the E392786 include a stand or mounting hardware?
A: The specification sheet does not detail mounting options, stands, or included hardware. Contact the manufacturer or direct manufacturer source to confirm stand availability and VESA mounting compatibility before purchase.
The ELO Touch E392786 is a purpose-built Android appliance, not a repurposed tablet. That distinction matters in B2B. The Rockchip 3399 processor is stable and power-efficient—proven in kiosk and signage deployments across food service, healthcare, and logistics for years. The 10-point projected capacitive touch is where you'll see real reliability gains: resistive or older single-touch alternatives drift or stick in high-traffic environments; the E392786's capacitive response is consistent and fast, even under sustained multi-user interaction.
Technical Highlights:
- Rockchip 3399 + 4GB RAM: Dual-core Cortex-A72 at up to 1.8 GHz handles real-time app switching and moderate media decode. 4GB RAM is sufficient for 3–5 simultaneous apps; beyond that, you'll see memory pressure and frame drops. Not a gaming SoC, but proven stable for kiosk, POS, and patient-facing workflows.
- 32GB Internal Storage: Roughly 20–22GB usable post-OS. If your deployment includes large offline video libraries (e.g., in-store training loops) or real-time local database caching (warehouse picking terminals), validate that content fits before going into production. The lack of expandable storage is a hard constraint—plan accordingly.
- Dual Network (Wi-Fi + Ethernet): Separating Wi-Fi and wired paths prevents a single congestion point. In warehouse and manufacturing floors where Wi-Fi is noisy or prohibited, Ethernet is your fallback. Bandwidth is not specified, but assume 1 GbE on the RJ-45 jack; Wi-Fi is 802.11ac, which gives you 80+ Mbps in good conditions—fine for app updates and cloud sync, tight for high-bitrate video streaming to the display.
- Bluetooth 5.0: Enables wireless peripheral pairing—payment readers, barcode scanners, receipt printers. Bluetooth 5.0 extends range to 240m line-of-sight and increases throughput. In crowded RF environments (retail floors, warehouses), 5.0 is more resilient than 4.2, but multipath interference can still occur; test site conditions before committing to wireless-only peripherals.
Deployment Considerations:
- No Storage Expansion: The 32GB hard limit is non-negotiable. If your app payload or offline content library exceeds 20GB, the E392786 will not fit your architecture. Use cloud sync and streaming as your primary data strategy, not local caching.
- Android 10 OS Lock-In: Android 10 support will eventually end (2023–2024 for security patches). Plan for OS replacement cycles every 2–3 years if you're deploying a large fleet. This is not a forever device; treat it like a consumable with a defined service life.
- EloView Licensing Overhead: Remote fleet management requires EloView subscription; that's an annual cost per unit. If you're deploying only 1–5 units, manual updates are cheaper. At 10+ units, EloView pays for itself quickly through reduced field trips and faster troubleshooting. Factor it into your TCO.
Position the E392786 for indoor, climate-controlled kiosk and information-wall deployments where touch responsiveness and reliable uptime matter more than maximum performance or storage. It's a workhorse in healthcare patient check-in, fast-casual restaurant ordering, and warehouse WMS terminal scenarios where the app is purpose-built and lightweight. Don't overload it with feature bloat or plan for a 5+ year lifespan without refresh; set expectations for a 2–3 year rotation and you'll avoid surprises.
