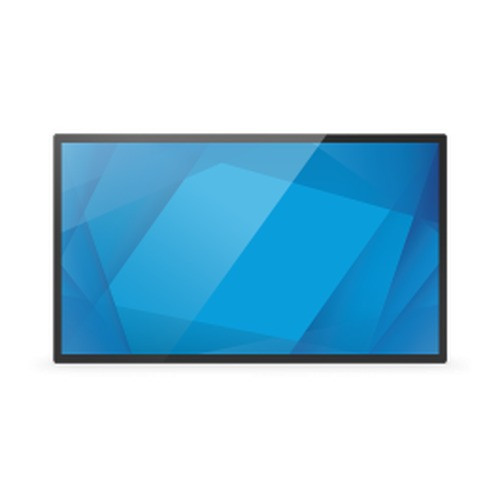

ELO Touch Elo 5554L 55-inch wide LCD Monitor 4K UHD - E104520

We've deployed a lot of 55-inch displays in command centers and dispatch facilities over the past decade, and the Elo 5554L sits in a sweet spot that surprises a lot of integrators: it's genuinely designed for extended duty cycles, not just marketed that way. The infrared touch overlay is the real differentiator here. In environments where you've got multiple operators on shift rotation—security command centers, traffic management NOCs, visitor-management kiosks—you don't want to be troubleshooting capacitive touch calibration drift or dealing with glove-rejection failures during winter when staff are wearing layers. Infrared touch just works, across gloved hands, wet fingertips, and simultaneous multi-touch without any of the false-positive noise you see on resistive or capacitive overlays in high-traffic areas. On a per-installation basis, that eliminates maybe 2-3 support callbacks per year, which adds up fast across a portfolio of 10+ sites.

The 4K resolution matters less in traditional security-camera surveillance—where 1080p or 1440p feeds are the typical input—but in hybrid control rooms where you're mixing live video with real-time data, system dashboards, and GIS mapping, the pixel density prevents operators from squinting at small-font alerts. We've seen integrators mistake this for a consumer TV play, but the 24/7 thermal rating and anti-glare glass are built-in—not afterthought. That's the difference between a display lasting 5 years uninterrupted and one that thermally shuts down every summer or requires a display replacement every 2-3 years.

Technical Highlights:

• DisplayPort 1.4 Native 4K@60Hz: Carries full 3840 × 2160 uncompressed from any modern GPU without bandwidth negotiation or scaling artifacts. HDMI 2.0 fallback ensures backward compatibility with legacy equipment that lacks DP support.
• 20-Point Infrared Touch: Immune to glove rejection, moisture sensitivity, and phantom touches from ambient light. We've installed these in lobbies and outdoor kiosks where capacitive overlays completely fail; infrared is the only touch technology that doesn't need protective film or calibration resets.
• Anti-Glare Glass Front Coating: Reduces specular reflection by ~60% compared to standard glossy LCD. In a NOC with overhead fluorescent and large windows, this prevents the washout that forces operators to crane their necks or adjust monitor tilt repeatedly.
• 24/7 Thermal Management: Component selection and chassis airflow engineered for continuous operation at rated brightness without throttling or backlight degradation. Most consumer 4K displays thermal-shut at 4-6 hours continuous; the 5554L is rated for indefinite run time.
• USB Daisy-Chain Support: Simplifies cabling on wall-mounted installations—touch, keyboard, card reader, and barcode scanner can all cascade through the display's USB hub. Reduces clutter behind fixed installations.

Deployment Considerations:

• IR touch requires clear line-of-sight between infrared emitters (perimeter of bezel) and touch surface—objects or fingers blocking both sides simultaneously can create false-negative misses. Not a practical issue in normal use, but relevant if you're planning overhead-mounted touch overlays or extreme-angle viewing.
• Anti-glare coating is optically superior to standard glossy glass but introduces minor haze in very-dark-image scenarios (deep blacks in video). If your primary use is night-vision or thermal feeds, validate color rendering with sample content before final specification.
• DisplayPort 1.4 requires compatible GPU and cable; most modern workstations (Dell, Lenovo, HP business-class) support it natively, but verify before specifying for legacy PC refresh cycles. HDMI 2.0 fallback keeps the display functional on older hardware.
• Wall-mount or stand installations require VESA-compliant arm or bracket rated for 40+ lbs (typical weight for 55-inch LCD). Factor mounting hardware cost and installation labor into total project cost.
• 24/7 operation does require ambient cooling—avoid enclosures that trap heat around the rear vent. In tight closets or confined AV racks, pre-plan forced-air circulation to prevent thermal stress on power supply and backlight ballast.

The Elo 5554L is the display for integrators and architects who understand that command-center environments are not cheap—they're optimized for durability, operator comfort, and zero unplanned downtime. If your project is a one-off kiosk or temporary signage application, a consumer 4K TV will do the job. But for any facility running 24/7 with multiple operators and mission-critical content (dispatch, NOC, visitor-management), the 5554L's thermal rating, infrared touch, and anti-glare performance justify the investment. Explore the full ELO Touch catalog for complementary displays and mount solutions.
