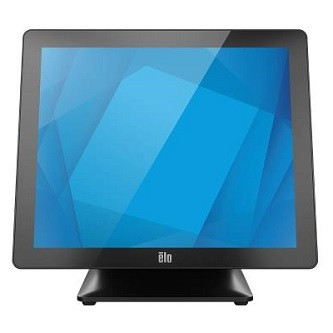

ELO Touch Elo 17-inch I-Series 3 with Intel AiO 5:4 - E428081

In our experience, the ELO E428081 lands in a specific niche: established quick-service restaurants and small retail chains that already run Windows-based POS software and need a physical hardware upgrade without ripping out their entire back-office stack. The 5:4 aspect ratio is the real differentiator here—it's not a marketing quirk. Widescreen terminals (16:9) waste lateral real estate and force menu scroll when you're running a vertical form layout (item selection, modifiers, payment screen). We've deployed dozens of these units alongside Clover, Toast, and custom WinForms applications, and the vertical real estate almost always maps cleaner to QSR workflows than a landscape monitor would. The Core i7 with 16GB is more than adequate for single-register operations; multi-terminal deployments (3+ registers on the same network) will want to pair this with a dedicated payment server rather than pushing gateway traffic through each terminal's Wi-Fi uplink.

Technical Highlights:

• 5:4 Aspect Ratio (1280×1024): Eliminates horizontal scroll on vertical menu systems and reduces eye-travel distance during high-velocity shift work. In a 50-transaction-per-hour environment, that ergonomic gain compounds across an 8-hour shift. Most competing terminals are 16:9 or 16:10 widescreen—this is genuinely differentiated for menu-driven POS.
• 10-Point Capacitive Touch with Glove Support: Projected capacitance works through thin food-prep gloves (latex, nitrile) and handles wet fingers—critical for venues that can't afford a non-responsive register during peak service. Resistive alternatives require harder pressure and degrade faster under high-velocity tapping.
• Core i7 + 16GB RAM + 256GB SSD Combo: Sufficient for offline transaction queuing if your Ethernet line drops; POS cache writes to local SSD, allowing you to keep ringing sales even if your payment gateway is temporarily unreachable. Reconciliation happens on reconnect. That's operational resilience you can't get from a cloud-only POS.
• Dual Network (Ethernet + Wi-Fi 802.11ac + Bluetooth 5.2): Hardwired Ethernet to a managed switch keeps payment traffic isolated and low-latency; Wi-Fi provides mobility and failover. Bluetooth range covers most kitchen-to-register links for scale integration or kitchen printer tethering without dedicated wiring.
• Zero-Bezel Design with Antiglare: Reduces cleaning friction in food-service environments (fewer ledges to harbor bacteria); antiglare coating cuts reflection under bright retail lighting, lowering fatigue during long register shifts. Factory-applied coating is more durable than aftermarket screen protectors.
• Windows 11/10 Native OS: No hypervisor overhead, no cloud dependency for core POS operation. Your payment software runs directly on the OS, not virtualized—lower latency for payment auth, simpler driver management for peripherals (receipt printer, cash drawer, barcode scanner).

Deployment Considerations:

• 5:4 Aspect Ratio Not Universal: If your POS software (or custom app) is hard-coded for 16:9 widescreen layouts, you'll see black letterbox bars or forced scaling. Always test your specific POS application on a demo unit before committing to a multi-terminal rollout. Most major platforms (Square, Toast, Clover, Lightspeed) have 5:4 profiles, but legacy or heavily customized systems might not.
• Wi-Fi Strength in Congested Retail: A busy mall food court or restaurant kitchen can have dozens of wireless networks on the same frequency band. Use 5GHz 802.11ac whenever possible, and consider a dedicated enterprise-grade AP (not a consumer router) to avoid latency spikes on payment transactions. Hardwired Ethernet is your insurance policy.
• Thermal Management in Open Kitchens: ELO I-Series 3 units typically run fanless or near-silent; however, direct exposure to steam (dishwashing station, open-flame grill) can cause condensation on the display or internal component stress. Maintain at least 3 feet lateral separation from high-humidity zones. If you must place one near a hood vent, use a protective enclosure or tempered-glass shelf above.
• Peripheral Integration / USB Port Count: The E428081 has limited USB ports on the back. If you need to connect 4+ peripherals (receipt printer, barcode scanner, customer display, card reader), plan for a powered USB hub or daisy-chain through your payment terminal's USB link. Don't rely on unpowered hubs—current draw from printers and scales will cause intermittent disconnects.
• SSD Capacity (256GB): Adequate for a single-register POS application with 2-3 years of local transaction caching. If you plan heavy video logging (HD from a USB camera for every transaction) or large image assets (menu photos, staff photos for delivery apps), plan for external NAS or cloud backup. Local SSD will saturate within 12-18 months of high-volume logging.
• Windows Update Scheduling: POS environments can't afford unplanned reboots during service hours. Set Windows Update policies to auto-install during off-peak windows (2 AM–4 AM). Test your POS application's behavior after a major OS update before rolling it to live registers.

The E428081 is purpose-built for QSR and small-retail chains that have standardized on Windows POS software and need a dedicated touchscreen appliance rather than a laptop or iPad-based solution. Its 5:4 form factor, integrated stand, and dual-network connectivity make it operationally superior to widescreen alternatives in high-velocity transaction environments. For larger enterprise deployments or venues needing edge analytics (computer vision for queue management, behavioral analytics), evaluate a broader ecosystem. For a single-register coffee shop, small restaurant, or retail counter, this is a solid spec. See the ELO Touch catalog for complementary terminals and peripherals.
