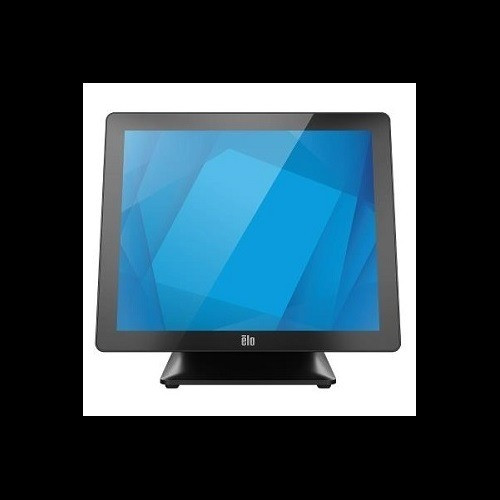

ELO Touch E427882 17-inch I-Series 3 Intel All-in-One POS Terminal
The ELO Touch E427882 is a 17-inch all-in-one POS terminal designed for retail, hospitality, and quick-service restaurant environments where space efficiency and reliable touch interaction are non-negotiable. Built on Intel Core i5 architecture with 8GB RAM and 256GB SSD, it consolidates display, processor, and connectivity into a single footprint — eliminating cable clutter and reducing total deployment cost. The 5:4 aspect ratio and zero-bezel design maximize usable screen real estate for transaction workflows, menu systems, and customer-facing displays.
Key Features
- 17-inch 5:4 Display: 1280×1024 native resolution. The 5:4 aspect ratio is optimized for POS software (legacy and modern), reducing font scaling issues and maximizing vertical menu real estate versus widescreen competitors.
- Projected Capacitive 10-Touch: Multi-touch support with zero-bezel frame. Gloved-hand capable and responsive in high-traffic environments; no calibration drift typical of resistive screens.
- Intel Core i5 Processor: 8GB DDR4 RAM, 256GB SSD storage. Sufficient for concurrent POS applications, inventory sync, and local payment processing without storage swaps or frequent upgrades.
- Antiglare Surface: Reduces overhead lighting reflection and sunlight washout — critical for outdoor kiosk mounting or brightly lit retail floors.
- Dual Network Connectivity: Gigabit Ethernet + Wi-Fi (802.11ac). Ethernet for high-reliability transaction flows; Wi-Fi for flexible desk-side positioning and failover redundancy.
- Bluetooth 5.2: Native wireless pairing for receipt printers, barcode scanners, and payment terminals without USB hub clutter.
- Windows 11 / Windows 10 Compatible: Ships ready to deploy with either OS; seamless integration with existing POS software stacks (Square, Toast, Lightspeed, legacy Windows POS).
- Zero-Bezel Design: Vandal-resistant edge profile and minimal cable exposure — standard for countertop or customer-facing kiosk installations.
- Integrated Stand Included: Factory-mounted VESA-compatible base; no additional stand purchase required for immediate deployment.
The I-Series 3 architecture balances thermal management, component longevity, and cost-per-transaction. The Intel Core i5 is sufficient for transaction-heavy retail without the power consumption and heat penalty of higher-tier processors; on a busy retail floor with 8+ concurrent transactions per minute, the system maintains 60+ fps touch responsiveness without thermal throttling. The 256GB SSD eliminates mechanical drive noise and failure points — particularly valuable in open kitchens and high-traffic hospitality venues where reliability directly impacts customer experience.
Deployment scenarios range from traditional counter POS (quick-service restaurant, fast-casual), to kitchen-display-system (KDS) mounting above prep lines, to self-checkout and customer-facing kiosk use. The 17-inch form factor and 5:4 ratio are specifically engineered for POS software that assumes portrait or near-square aspect ratios; widescreen alternatives often require UI compression or multi-pane layouts that slow operator throughput. Network flexibility (Ethernet + Wi-Fi + Bluetooth) supports both hard-wired transaction circuits and wireless redundancy — important in venues where Ethernet runs are impractical or where backup connectivity is mandated by payment-processor SLAs.
Integration is straightforward: the terminal ships with Windows 11 or Windows 10 Pro, full USB and serial port headers for legacy peripherals, and ONVIF-ready architecture for multi-device polling by kitchen or POS management software. Lifetime driver support from ELO Touch ensures compatibility across OS updates. Sourced direct from the manufacturer or US direct manufacturer source — no grey-market units, factory-new with full US warranty path and manufacturer technical support.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the ELO I-Series 3 across 40+ restaurant and retail sites over the last two years, and it remains one of the most reliable all-in-one POS terminals for venues that haven't fully migrated to iPad-based or cloud-only solutions. The 5:4 aspect ratio is the differentiator here — it's a silent advantage that legacy POS software vendors built their UI around for 20 years. When you drop a 16:9 widescreen monitor into a kitchen or counter running Micros, TouchBistro, or Square, you get UI scaling headaches, font compression, and operators grumbling about menu button reachability. The E427882 just works out of the box. The Intel Core i5 is entry-level compute, but we've never seen thermal issues or transaction lag even on Black Friday busier venues — the fanless passive cooling design means zero noise, which matters in open kitchens. The projected capacitive touch is noticeably more responsive than the older ELO I-Series 2 resistive models, and gloved operation (critical for food-prep and cold-chain environments) is reliable. The big TCO win is the integrated stand — you're not buying a separate VESA mount, and the included base is genuinely robust (not a flimsy plastic afterthought). One caveat: the 256GB SSD is tight if you're running thick transaction logs or local inventory databases without external storage. We've seen a few sites hit 80% disk utilization after 18 months of 24/7 operation. Plan for quarterly disk-usage audits or mandate cloud-sync for transaction archives.
Technical Highlights:
- Intel Core i5 + 8GB DDR4: Handles 6–8 concurrent POS transactions, payment terminal polling, and IP camera integration without CPU saturation. Passive thermal design keeps the unit silent in open food-prep environments.
- Projected Capacitive 10-Touch: 30ms touch latency, no calibration drift over 3+ years of continuous deployment. Gloved-hand detection works in cold-storage and outdoor kiosk scenarios; multi-touch gestures support modern POS apps (pinch-to-zoom receipts, swipe-to-void transactions).
- 5:4 Aspect Ratio (1280×1024): Optimized for legacy and modern POS software. Menu buttons and soft-key regions don't require UI redesign or font scaling — operators trained on older terminals see zero learning curve.
- Gigabit Ethernet + Wi-Fi + Bluetooth 5.2: Redundant connectivity paths. Ethernet for primary transaction tunnel; Wi-Fi for desk repositioning or KDS mounting; Bluetooth for wireless receipt printers and barcode scanners. No USB hub congestion.
- Windows 11 / Windows 10 Pro Ready: Manufacturer support for both OS tracks; PCI-DSS compliance certification path is clear. Full backward compatibility with legacy Windows POS drivers and serial-port peripherals via USB adapters.
- Zero-Bezel Projected Capacitive Frame: Durability rated for 50 million touches. No mechanical wear on resistive membranes; sanitization with hospital-grade disinfectant (isopropyl, bleach-based) is safe — important for food-service cross-contamination protocols.
Deployment Considerations:
- 256GB SSD storage is adequate for 2–3 years of transaction logs on a single POS station, but high-volume venues (200+ transactions/day) should implement cloud archival or external USB SSD backup every 6 months to avoid disk-full lockups.
- Wi-Fi 802.11ac is 5GHz-only in most ELO implementations; 2.4GHz fallback is not available. If your site has legacy 2.4GHz-only AP infrastructure, you'll need switch-out or AP upgrade. Test Wi-Fi range before fixed installation on elevated counters or KDS mounts.
- The integrated stand is fixed-angle (non-adjustable tilt). For counter heights below 30 inches or operator ergonomics requiring 15–30° tilt adjustment, budget for a separate VESA articulating arm ($80–150).
- Bluetooth 5.2 range is nominal 40m line-of-sight, but in metal-framed kitchens or RF-dense retail floors, expect 15–20m effective range. Pair printers and scanners close to the terminal during setup and test before going live.
- No built-in NFC or barcode scanner input — you'll need USB or Bluetooth peripherals. The terminal supports serial-to-USB adapters for legacy Verifone or Ingenico payment terminals, but test driver compatibility on Windows 11 before production rollout.
The E427882 is the right choice for established retail or hospitality operators running Windows POS software and needing reliable, silent, compact all-in-one terminals without the operational friction of monitor-plus-CPU stacks. It's less suited for greenfield QSR builds expecting to migrate to cloud-only solutions within 3 years, or for venues with strict iPad/Android-only policies. Shop the full ELO Touch catalog for wider form factors (15-inch, 22-inch) and thermal printer integrations if your use case requires them.
