Overview

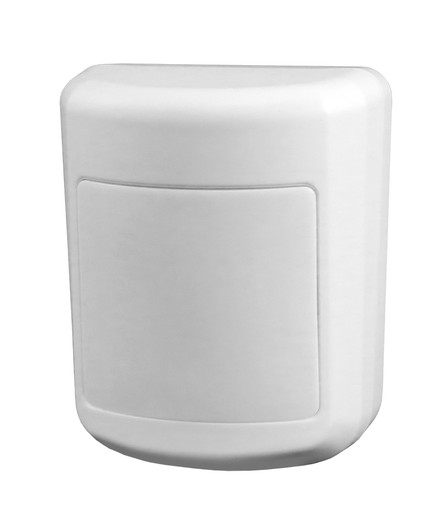

The ELK-319PIRW is a wall-mounted passive infrared (PIR) motion detector designed as an accessory for ELK security systems. This sensor detects occupancy and movement within monitored spaces, delivering activation signals to control panels and automation logic. Integrators deploy it in residential and light commercial installations where zone-level motion detection drives arming/disarming routines, alarm events, or system-triggered responses. The wall-mount form factor suits entry halls, interior rooms, and perimeter zones where ceiling or corner placement isn't practical.

Key Features

• Passive Infrared Detection: Senses heat signatures from moving objects without active emitters — meaning no IR source to maintain or adjust, and lower power draw than active systems. Typical for standard interior security zones.
• Wall-Mounted Design: Mounts on vertical surfaces (walls, posts) for direct line-of-sight to occupied areas. Avoids the obstructed views sometimes seen with high-mounted ceiling sensors, giving you tighter control over monitored zones.
• ELK Control Panel Integration: Connects as a standard zone input to ELK security systems. Sends open/close signals to trigger arming modes, automation rules, or alarm reporting — no external relays or interface modules needed if your system is ELK-native.
• Interior and Entry Zone Suitability: Designed for indoor environments where temperature swings and humidity remain moderate. Avoid direct sunlight, heat sources, or drafts in the coverage area — these cause false triggers.
• Reliable Occupancy Triggering: Delivers consistent motion activation for system logic — whether you're using it to auto-arm when a space clears or to trigger lights and HVAC routines tied to your security panel.
• Low Maintenance Profile: Passive infrared means no lens cleaning routines, no IR emitter alignment, and no consumables — just mount and commission.

Integration and Compatibility

The ELK-319PIRW functions as a standard PIR accessory for ELK Products control panels and compatible security system architectures. It accepts a wired connection to a monitored zone input on the panel. Confirm zone loop voltage and sensor loop current draw with your panel documentation before installation — most modern ELK systems support both supervised and unsupervised zone wiring. If you need motion detection for a non-ELK panel, check whether a third-party interface or gateway can bridge the signal; pure ELK integration requires an ELK-compatible control system.

Typical Deployment Scenarios

Integrators commonly install the ELK-319PIRW in:

• Entry hallways to detect egress before full arming
• Interior rooms where ceiling-mounted sensors create blind spots or false triggers from ceiling-mounted HVAC vents
• Perimeter monitoring in light commercial spaces (offices, small warehouses) where motion-triggered responses support occupancy-aware automation
• Residential security zones where wall-level mounting aligns with furniture or sightlines, reducing nuisance alarms

Frequently Asked Questions

Q: Is the ELK-319PIRW suitable for outdoor mounting?

A: No — this sensor is designed for interior and entry areas with controlled temperature and humidity. Rain, direct sunlight, and extreme cold or heat degrade PIR performance and trigger false alarms. For outdoor perimeter zones, consult outdoor-rated motion detectors in the ELK product family or from compatible third-party vendors.

Q: What happens if the ELK-319PIRW detects motion?

A: The sensor sends an open-circuit or closed-circuit signal (depending on wiring mode) to its assigned zone input on the ELK control panel. The panel then executes logic tied to that zone — e.g., trigger an alarm if armed, log the event, or activate an automation rule. Behavior depends entirely on how you configure the zone in the panel.

Q: Can I use the ELK-319PIRW with non-ELK security systems?

A: Not directly. This sensor is designed as a native accessory for ELK control panels. If your system is different (Honeywell, DSC, Interlogix, etc.), you would need a compatible interface or relay module — check with your system integrator or the third-party vendor before purchase.

Q: Does the ELK-319PIRW require separate power?

A: No — it draws power from the control panel's zone loop. No separate 12V or AC power supply is needed, which simplifies wiring and reduces panel load compared to powered accessory sensors.

Q: What causes false triggers on the ELK-319PIRW?

A: Direct sunlight, heating vents, air conditioning drafts, ceiling fans, and high-traffic pet movement are common culprits. If nuisance alarms occur, check mounting height and aim — most PIR sensors perform best when positioned 4–6 feet high and pointed toward the center of the room, not toward heat sources or air currents.

Q: Is there a warranty on the ELK-319PIRW?

A: Refer to your proof of purchase and the manufacturer documentation for warranty terms. Standard commercial warranty typically covers defects in materials and workmanship for a defined period from purchase date.

Karl Wilson

The ELK-319PIRW is a straightforward PIR motion accessory — no fancy analytics, no IP connectivity, just passive infrared heat detection wired to a zone loop on an ELK control panel. That simplicity is both its strength and its limitation. If you're building an ELK-native residential or light commercial security system, this sensor delivers reliable zone-level occupancy triggering at a predictable cost. The passive approach keeps power draw minimal and eliminates the calibration headaches you get with active IR systems.

Deployment Considerations:

• Wall mounting only: Unlike dome sensors that cover a ceiling area, the ELK-319PIRW mounts on walls and looks horizontally into a room. This is an advantage if you need tight control over a narrow hallway or entry zone, but a liability if you're trying to blanket a large open space — you'll need multiple sensors.
• Passive infrared sensitivity to heat sources: Aim away from heating vents, direct sun through windows, and HVAC returns. In a poorly laid-out room, you'll chase false alarms. Pre-commission testing in summer and winter is non-negotiable, especially if the sensor sits near a heat pump or radiant heater.
• ELK-only integration: This is not a multi-platform accessory. If your control panel isn't ELK-based, don't buy this sensor. There's no ONVIF bridge, no generic relay interface — it's designed for ELK zone loops only.

Best positioning: Mount the ELK-319PIRW 4–6 feet high on a wall with a clear sightline to the area you want to monitor. Avoid mounting it directly above heat sources, and test coverage in both heating and cooling seasons before finalizing the installation. For entry halls in multi-family residential or small office buildings, this sensor is a solid fit; for large warehouse or retail applications, you'll likely need a more sophisticated analytics-driven approach.
