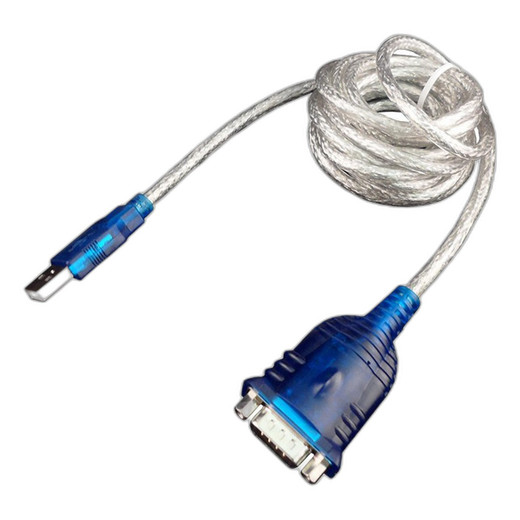

ELK Products ELK-USB232 USB to RS-232 Serial Converter Cable
Overview
The ELK-USB232 is a serial converter cable that solves a specific integration problem: connecting modern computers and control systems equipped only with USB ports to older security hardware that communicates exclusively over RS-232 serial connections. This cable is purpose-built for retrofits, system upgrades, and mixed-generation deployments where legacy alarm panels, keypads, and peripherals must coexist with contemporary platforms.
In security installations—particularly access control and alarm system deployments—you often inherit hardware across multiple generations. The ELK-USB232 eliminates the friction of forcing a complete hardware replacement when a simple bridge adapter will restore functionality. Deploy this cable as part of system expansion, field troubleshooting, or installer toolkit inventory.
Key Features
- USB-to-RS-232 Protocol Bridge: Converts USB signaling to standard RS-232 serial protocol, allowing direct communication between USB-equipped host systems (computers, control platforms, integration servers) and RS-232 devices without requiring a separate power supply or multi-part adapter assembly.
- Legacy Device Compatibility: Designed to integrate ELK control systems and third-party serial devices requiring standard RS-232 handshake and data line support. Restores compatibility when direct serial ports are unavailable on modern hardware.
- Retrofit-Ready Design: Ideal for warehouse automation, access control panel upgrades, and alarm system expansions where swapping legacy components is cost-prohibitive or operationally disruptive. Reduces downtime by enabling phased hardware modernization.
- Field Installation & Troubleshooting: Supports integration during system commissioning, configuration of remote serial devices, and diagnostic troubleshooting without requiring on-site serial port availability.
- Multi-Protocol Deployment Support: Enables mixed-vendor installations where some devices communicate via serial and others via Ethernet or USB, allowing a single control platform to manage heterogeneous hardware stacks.
- Compact, Portable Form Factor: Cable assembly design makes it suitable for installer toolkits, emergency service calls, and temporary field configurations where bulky converter boxes would be impractical.
Integration & Compatibility
The ELK-USB232 connects any USB-equipped host (Windows PC, macOS system, embedded Linux platform, or networked control appliance) to RS-232 serial peripherals. Supports standard serial communication protocols used by ELK control systems and compatible third-party devices. Install as a bridge between a modern network video recorder or access control panel and legacy serial sensors, keypads, or expansion modules. Useful in hybrid deployments combining IP cameras with older analog alarm infrastructure.
No additional power supply is required—the USB connection supplies operating current to the converter electronics. Driver installation may be required depending on your host operating system; consult your system documentation for specific serial driver configuration steps.
Deployment Scenarios
Warehouse & Facility Automation: Integrate legacy proximity readers or motion sensors that communicate only via RS-232 into modern IP-based security and automation systems without replacing functional hardware.
Access Control Retrofit: Upgrade a facility's main controller to a contemporary system while maintaining integration with existing serial door locks, badge readers, or inter-system communication modules.
Multi-Site Alarm Consolidation: Centralize monitoring of remote facilities that rely on older serial-based alarm panels by bridging them through a single USB-connected management console.
When to Choose a Different Solution
If you require native RS-232 connectivity on your primary control system, evaluate platforms or computers that include built-in serial ports rather than relying on a converter. If your deployment calls for Ethernet integration across multiple remote sites, consider upgrading to IP-native control systems that eliminate serial infrastructure dependencies. For high-volume serial device integration across a large facility, dedicated serial servers or multi-port USB hubs may offer better scalability and management options.
Frequently Asked Questions
Q: Does the ELK-USB232 require external power?
A: No. Operating power is supplied through the USB connection, eliminating the need for a separate power adapter.
Q: What operating systems support the ELK-USB232?
A: The ELK-USB232 works with any operating system that supports standard USB serial drivers—including Windows, macOS, and Linux distributions. Confirm your host system's serial driver support before deployment.
Q: Can I use the ELK-USB232 for remote serial connections over a network?
A: No. The ELK-USB232 is a direct point-to-point converter cable for devices located near the USB host. For remote serial device integration, consider a serial server or networked gateway solution.
Q: Will the ELK-USB232 work with any RS-232 device?
A: The ELK-USB232 supports standard RS-232 protocol devices. Verify that your legacy device uses standard RS-232 signaling and handshake lines. Non-standard serial implementations may require additional adapters.
Q: Is the ELK-USB232 suitable for permanent installation in a control cabinet?
A: Yes. Install it in a secure location between your USB host and serial device. Ensure the cable path is protected from physical damage and excessive bending at connection points.
Q: What cable lengths are available?
A: Consult the product specification sheet or contact the manufacturer for available cable length options.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ELK-USB232 solves a real problem in mixed-generation security deployments: you've got modern control infrastructure but legacy RS-232 peripherals that work perfectly fine. Rather than rip-and-replace, this cable lets you integrate the old hardware into the new stack without powering another device or running separate infrastructure.
Technical Highlights:
- USB Bus-Powered Operation: No external power supply required—current flows directly from the USB host. Reduces cable clutter in control cabinets and eliminates a potential point of failure.
- Standard RS-232 Protocol Support: Works with any device using standard RS-232 handshake and data lines. Confirms compatibility with ELK panels and compatible third-party serial hardware without custom firmware or proprietary drivers.
- Direct Cable-Based Integration: No network latency, no configuration overhead, no software licensing. Plug in, install OS drivers, and communicate. Ideal when you need transparent, bidirectional serial data flow.
Deployment Considerations:
- Driver availability varies by OS version—verify your control platform or integrator workstation has USB serial driver support before installation.
- This is a point-to-point connection only; you cannot tunnel serial traffic across Ethernet or run multiple devices daisy-chained on a single converter without additional serial server infrastructure.
- Cable routing matters: RS-232 is susceptible to EMI over long runs; keep the cable away from high-current power lines and RF sources inside the cabinet.
The ELK-USB232 is the right choice when you're modernizing a facility's control system but want to preserve working serial-based hardware—particularly in warehouse automation, access control consolidation, or multi-site alarm monitoring scenarios. It's not a solution for scaling serial integration; if you need to bridge dozens of serial devices, invest in a dedicated serial server. But for a single panel, keypad, or sensor retrofit, this cable delivers straightforward, reliable integration without forcing a wholesale equipment replacement.
