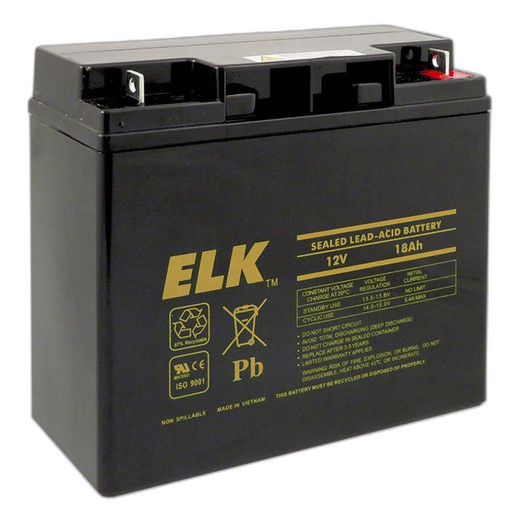

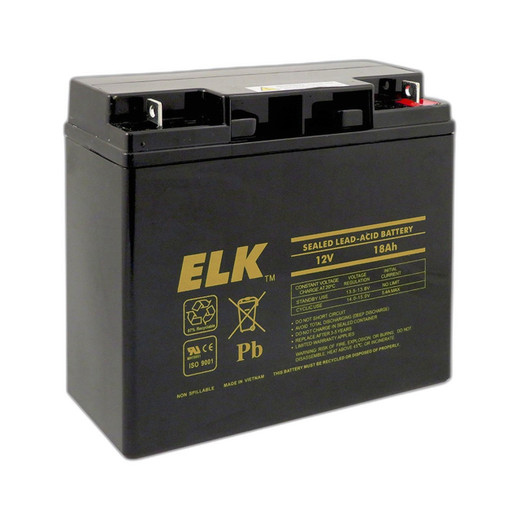

ELK Products ELK-12180 12V 18Ah Lead Acid UPS Battery
Overview
The ELK-12180 is a 12-volt, 18 amp-hour lead acid battery engineered to deliver auxiliary backup power for security and access control systems during mains power loss. With a 20-hour rated capacity, this battery maintains critical system uptime when AC power fails — a non-negotiable requirement in modern security deployments where door locks, card readers, and alarm panels must remain operational. Weighing 5.2 kg (11.44 lbs), the ELK-12180 is sized for standard mounting in control cabinets, UPS enclosures, and system racks without requiring oversized physical infrastructure.
Key Features
- 18 Amp-Hour Capacity at 20-Hour Rate: Provides 900 watt-hours of stored energy — sufficient to sustain moderate-draw security loads (door strikes, mag locks, panel displays) for extended periods when paired with correctly sized charging modules. Real-world runtime depends on your actual load; a 5-amp draw yields roughly 3.6 hours of backup, while a 1-amp load extends that to 18 hours.
- 12V Nominal Output: Standard voltage for most security control panels, access readers, credential management systems, and intrusion detection equipment — no buck-boost conversion required, which eliminates efficiency losses and compatibility headaches on the integrator's end.
- Lead Acid Chemistry: Proven, cost-effective energy storage with mature charging infrastructure. Integrates readily with existing UPS systems and trickle-charge modules already deployed in security cabinets. Not lithium — so no special handling, no thermal management complexity, and no firmware updates.
- Compact Form Factor at 5.2 kg: Light enough for one-person installation in wall-mounted or DIN-rail enclosures, yet dense enough that you're not wasting cabinet real estate. Fits standard battery trays in commercial UPS units.
- 20-Hour Discharge Rating: Capacity is specified at a slow, controlled discharge — a standard benchmark that makes real-world estimation easier. At faster discharge rates (e.g., high-current door strike activation during a power fault), usable capacity decreases; account for this when sizing runtime requirements.
- Compatible with Standard Security UPS Modules: Works with ELK and third-party charging modules, allowing you to standardize on one battery type across multiple installations. Verify charge controller voltage and current ratings before deployment to avoid undercharging or sulfation.
Integration & Compatibility
The ELK-12180 pairs with security control panels and access control systems requiring 12V auxiliary power. Common integration points include door-strike power, mag-lock buffering, reader supply backup, and panel display hold-up during AC loss. Consult your panel datasheet to confirm the maximum backup current draw and select an appropriately sized charging module — undersizing the charger can leave the battery in a chronic low-charge state, cutting service life.
Frequently Asked Questions
Q: How long will the ELK-12180 power a single electric strike during a blackout?
A: A standard electric strike draws 0.5–1.5 A at 12V. At 1 A continuous, you'd see roughly 18 hours of runtime; in practice, a single strike operates intermittently, so a fully charged ELK-12180 will typically sustain strike operation for many hours. However, if you're also powering readers and panel logic simultaneously, runtime shrinks — calculate your total sustained load first.
Q: Can I use the ELK-12180 as a primary power source, or only for backup?
A: It's a backup battery, not a primary source. It is designed to bridge power gaps during AC outages. For continuous operation, you need a mains charger or UPS module to keep it topped up. Running it as a primary source will rapidly deplete the battery and shorten its lifespan.
Q: What is the typical service life of the ELK-12180?
A: Lead acid batteries in standby duty typically deliver 3–5 years if kept on float charge and maintained at correct temperature. Cycle life (repeated full discharge/recharge) is much shorter — often 200–500 cycles. Confirm maintenance intervals and replacement schedules with your UPS module vendor.
Q: Is the ELK-12180 included with ELK control panels, or sold separately?
A: Verify with your system documentation. Many commercial panels ship without battery; the ELK-12180 is a common add-on. Check the panel's battery tray specifications before ordering to ensure mechanical fit.
Q: Can I use the ELK-12180 in high-temperature or outdoor enclosures?
A: Lead acid batteries are sensitive to temperature extremes. Operating and storage ranges are typically 0–40°C for discharge. In hot climates, place the battery inside a climate-controlled cabinet or UPS enclosure; in cold environments, discharge capacity drops significantly — factor this into your runtime calculations.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ELK-12180 is a straightforward, proven choice for access control and intrusion system backup power. Its 18 Ah capacity at the 20-hour rate gives integrators a clear baseline for runtime estimation, and the 12V output meshes directly with most commercial security panels and readers without voltage conversion.
Technical Highlights:
- 18 Ah @ 20-Hour Rate: This translates to roughly 900 watt-hours of usable energy. A typical 5-amp sustained load yields 3.6 hours of runtime; a lighter 2-amp draw extends that to 9 hours. Real-world performance depends entirely on your load profile — model this before deployment.
- Lead Acid Simplicity: No lithium management headaches, no firmware, no thermal sensors. Standard float-charging infrastructure means your existing UPS charger module likely already supports it. Replacement batteries are commodity items — cost predictable, availability reliable.
- 5.2 kg Weight: Lightweight enough for cabinet mounting without reinforcement, but substantial enough that you're not buying throwaway energy storage. Fits standard battery trays in DIN-rail cabinets and commercial UPS units.
Deployment Considerations:
- Charger Sizing is Critical: An undersized or mismatched charging module leaves the battery in a chronic low-charge state, accelerating sulfation and cutting service life from years to months. Verify your UPS module's charge voltage (typically 13.6–13.8V float) and current capacity before purchasing the ELK-12180.
- Temperature Sensitivity: Lead acid performance drops sharply outside 0–40°C. In hot data centers or outdoor cabinets, plan for reduced usable capacity and shorter runtime. Conversely, cold climates (below 10°C) see significant capacity loss — factor this into your backup-duration calculations if your installation is in an unheated space.
- Cycle vs. Standby Life: The ELK-12180 is optimized for standby duty (float-charged, rare discharge). If you're cycling it frequently (daily charge/discharge), expect 200–500 full cycles before capacity degrades. Clarify with your customer whether their building experiences frequent power events or if outages are rare — this changes ROI and replacement intervals.
The ELK-12180 (often searched as ELK 12180) is your default pick for small-to-medium commercial access control installs, alarm panels, and door-lock backup. Size your charger correctly, mount it in a climate-controlled cabinet, and plan for replacement every 3–4 years in standby service. Not exotic, but reliable and easy to service.
