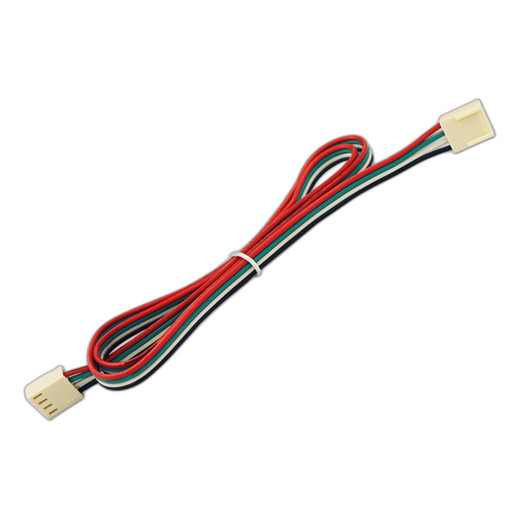

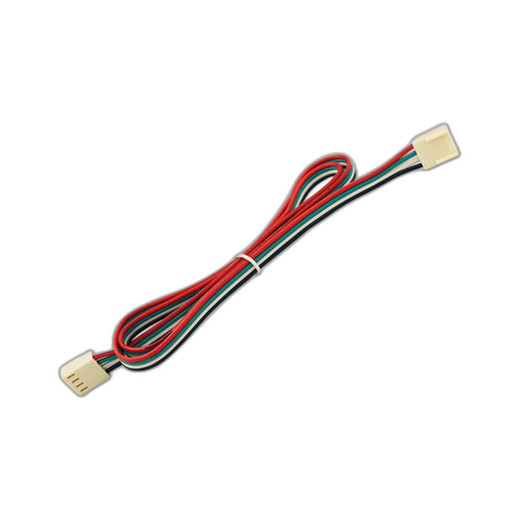

ELK Products ELK-W018B 4 Pin Ribbon Cable
Overview
The ELK-W018B is a 4 pin ribbon cable engineered for modular connectivity within ELK Products access control and security system installations. This cable serves as an interconnect component between control panels, expansion modules, and auxiliary devices in access control architectures. If you're assembling or troubleshooting an ELK-based security system, the ELK-W018B (often searched as ELK W018B) provides the standardized ribbon interface your control modules expect.
Key Features & Compatibility
- 4 Pin Ribbon Interface: Matches the pin configuration on ELK control panels and expansion modules, eliminating the need to source non-standard connectors or adapters during system installation.
- ELK System Integration: Designed explicitly for ELK Products control panel and expansion module architecture, meaning no guesswork about pinout or signal integrity. Plug directly into existing ELK ecosystems without crossover concerns.
- Residential and Commercial Deployment: Suitable for both small residential access control systems and larger commercial multi-door installations where modular expansion is standard practice.
- Modular System Connectivity: Ribbon cables enable quick panel-to-module and module-to-module connections, reducing installation time on jobs requiring multiple expansion cards or remote readers.
Integration & Compatibility
The ELK-W018B is compatible with ELK Products control panels and expansion modules that feature 4 pin ribbon connectors. Integrators deploying access control panels from the ELK Products line will recognize this cable as a standard internal interconnect. If you're expanding an existing ELK installation with additional reader zones, door modules, or auxiliary sensors, verify that your target expansion module includes a matching 4 pin ribbon receptacle before ordering.
The cable supports standard ELK system configurations in both residential and commercial access control deployments. Security integrators and installers working with modular ELK architectures will find this a straightforward replacement or spare component, reducing project delays caused by missing interconnects.
Installation Considerations
Ribbon cables are sensitive to physical stress — avoid sharp bends, pinching, or crimping during panel installation. Route the ELK-W018B away from high-voltage wiring and power supplies to prevent electromagnetic interference (EMI) that could corrupt control signals. When installing in electrical enclosures, use cable clips or conduit to protect the ribbon from mechanical damage over time.
Frequently Asked Questions
Q: Is the ELK-W018B a replacement for a damaged ribbon cable in my ELK control panel?
A: Yes, if your ELK panel or expansion module uses a 4 pin ribbon connector and the cable is damaged or failing, the ELK-W018B is the correct replacement part. Verify the pin count and connector type on your existing module before ordering.
Q: Can I use the ELK-W018B to connect third-party expansion modules to my ELK panel?
A: The ELK-W018B is designed for ELK Products modules and panels with matching 4 pin ribbon interfaces. If a third-party module uses the same pinout and connector standard, it may work, but ELK does not certify cross-brand compatibility. Contact the third-party manufacturer to confirm.
Q: What is the maximum cable length for the ELK-W018B?
A: The source evidence does not specify a maximum cable length. Contact ELK Products directly or consult the documentation for your control panel to determine safe run distances for ribbon interconnects.
Q: Does the ELK-W018B require special connectors or adapters?
A: No. The ELK-W018B is designed to plug directly into ELK control panels and expansion modules with 4 pin ribbon receptacles. No adapters or special connectors are needed for standard ELK installations.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The ELK-W018B is a straightforward replacement cable for modular ELK access control systems. It's not glamorous, but ribbon connectivity is mission-critical in panel-to-module architectures — a pinched or severed ribbon will kill an entire expansion card's functionality. The ELK-W018B solves that by providing the correct 4 pin interface integrators expect on ELK hardware.
Deployment Highlights:
- Direct Panel-to-Module Connectivity: Eliminates adapter hunting or cross-pinout guesswork during system build-out or repair. If your ELK panel has a 4 pin ribbon receptacle, this cable goes straight in.
- Modular Expansion Support: Ribbon cables are the backbone of multi-zone ELK installations. Having spares on hand prevents job delays when existing interconnects fail or when adding new expansion modules to a running system.
- Mechanical Fragility Consideration: Ribbon cables are vulnerable to physical stress. Route carefully away from sharp edges, pinch points, and high-voltage runs. Don't coil tightly or allow sustained pressure on the flat conductor surface — creasing reduces signal integrity over time.
Installation Reality Check:
- Keep at least one ELK-W018B in your van or spares kit. Cable failures are rare but catastrophic when they occur mid-shift.
- Don't force the connector onto a receptacle. Ribbon connectors have a specific orientation — if resistance is high, pull back and recheck pin alignment to avoid bending pins or splitting the cable.
Grab this cable as a spare or replacement when you're already stocking ELK system components. It's not a high-margin item, but it solves a real problem when a ribbon fails on a live access control installation.
