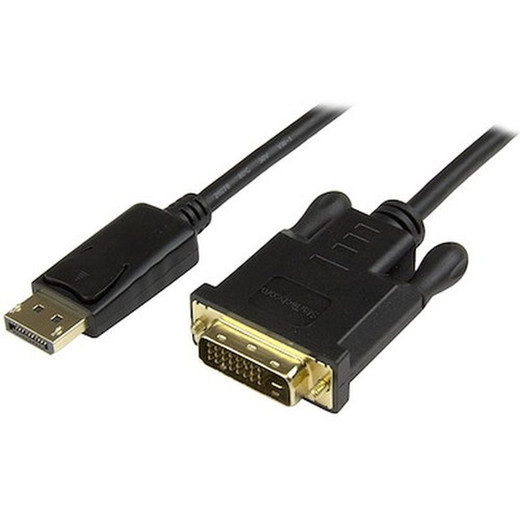

StarTech DP2DVI2MM3 DisplayPort to DVI-D Passive Cable Adapter

Overview

The StarTech DP2DVI2MM3 is a 3-foot passive DisplayPort-to-DVI-D cable adapter built for straightforward, no-driver display connections between a DisplayPort source and a DVI-D monitor or display. There is no active signal conversion circuitry here — the adapter relies on the DisplayPort source's native dual-mode (DP++) output to drive the DVI-D signal directly. That keeps the cost low and eliminates any powered conversion box from your cable run, which matters when you are tidying up a workstation, control room console, or operator desk with limited clearance behind the display.

At 3 feet, this cable is sized for desktop and rack-adjacent runs — think a PC tower next to a monitor, a KVM output to a local display, or a workstation-to-display connection at a security operations desk. If you need to span a longer distance between a source and display, plan for a longer cable or a signal extender rather than stretching this one.

Key Features

• Passive adapter, no drivers or power required: Because the DP2DVI2MM3 is passive, it draws no bus power and installs in seconds — plug in and the display is recognized. This only works when the DisplayPort source supports dual-mode (DP++) output, which covers the vast majority of discrete GPUs and docking stations shipped in the last decade. Verify your source supports DP++ before ordering if you are unsure.
• 1920x1200 maximum resolution: Full WUXGA output covers standard 1080p monitors with headroom to spare, and supports 1920x1200 panels common in medical imaging, financial trading desks, and control room displays. If you need 4K output, this passive adapter cannot deliver it — that requires an active conversion adapter with its own chipset.
• 3-foot cable length: The 3-foot run keeps cable management clean at a workstation without excess slack pooling behind a desk. Short enough to avoid signal degradation concerns at this resolution and interface standard.
• DisplayPort male to DVI-D male connectors: Both ends are male, matching the standard configuration for connecting a PC or docking station (DP output) to a monitor (DVI-D input). No gender changers needed for typical deployments.
• Operating temperature 5°C to 35°C (41°F to 95°F): Rated for standard indoor climate-controlled environments — office, control room, data center front-end. Not rated for outdoor or industrial temperature extremes.
• Storage temperature 0°C to 70°C (32°F to 158°F): Safe to store in a range of warehouse or stockroom environments without risking connector or cable degradation before deployment.
• Operating humidity 20–80% RH non-condensing: Covers typical commercial indoor environments. Avoid deployment in high-humidity spaces without environmental controls.
• Compact form factor — 1.6 in wide, 0.6 in tall, 2.8 oz: Light enough that connector weight alone will not stress the port on either device. The compact connector head fits in tight spaces where a bulky adapter block would be problematic.
• 3-year manufacturer warranty: StarTech backs this cable with a 3-year warranty, which is meaningful for a component that tends to get forgotten once installed — you are covered if a connector fails under normal use conditions.

Integration and Compatibility

The DP2DVI2MM3 is compatible with any DisplayPort dual-mode (DP++) source — including desktop GPUs, laptop docking stations, and workstation graphics cards — outputting to any DVI-D single-link or dual-link monitor up to 1920x1200. Because this is a passive adapter, it will not function with standard (non-DP++) DisplayPort sources. Check your GPU or docking station specs for DP++ support if there is any doubt.

DVI-D carries digital video only — no analog component. If your monitor has only a DVI-A or VGA input, this cable will not work. Confirm the monitor accepts DVI-D digital input before purchasing. This adapter does not carry audio; DisplayPort audio does not pass through to DVI-D, so plan a separate audio path if needed at the destination display.

For longer display cable runs in a display cable infrastructure, consider pairing with a signal booster or switching to an active adapter if the source-to-display distance exceeds what passive cabling can reliably support at this resolution. For workstation builds requiring multiple display outputs, review the full StarTech connectivity lineup for active adapters, multi-display splitters, and docking accessories.

Frequently Asked Questions

Q: Does the DP2DVI2MM3 require any drivers or software to work?

A: No. The DP2DVI2MM3 is a passive adapter — it requires no drivers, software, or external power. Plug it in and the connected display is recognized automatically, provided your DisplayPort source supports dual-mode (DP++) output.

Q: What is the maximum resolution supported by the DP2DVI2MM3?

A: The maximum supported resolution is 1920x1200 (WUXGA). It will support 1080p (1920x1080) and lower resolutions as well. It cannot output 4K or higher resolutions — an active adapter is required for that.

Q: Will this cable work with any DisplayPort source?

A: Only with DisplayPort sources that support dual-mode (DP++) output. Most discrete GPUs and docking stations support DP++, but some embedded or integrated DisplayPort outputs do not. Verify your source's specs before ordering.

Q: Does the DP2DVI2MM3 pass audio?

A: No. DVI-D does not carry audio, so no audio signal passes through this adapter. Plan a separate audio connection if sound is needed at the destination display.

Q: What warranty does the DP2DVI2MM3 carry?

A: StarTech provides a 3-year manufacturer warranty on the DP2DVI2MM3.

Q: Can I use this adapter in an outdoor or industrial environment?

A: No. The DP2DVI2MM3 is rated for indoor use with an operating temperature range of 5°C to 35°C and operating humidity of 20–80% RH non-condensing. It is not rated for outdoor, high-humidity, or industrial temperature extremes.

Karl Wilson

The DP2DVI2MM3 comes up regularly in control room and operator workstation builds where there is a mix of newer DP-output graphics cards and legacy DVI-D monitors that still have years of service life left. The passive design is the key point here — no conversion box, no power brick, and no compatibility quirks introduced by an active chipset. At 2.8 oz and a 3-foot run, it disappears behind a desk without adding any strain to the GPU's DisplayPort port.

Technical Highlights:

• 1920x1200 passive output: WUXGA resolution covers the full range of 1080p and 1920x1200 DVI monitors in one cable. No active circuitry means no latency artifact or handshake delay that occasionally plagues cheap active adapters.
• Operating temp 5°C–35°C: Designed for conditioned indoor environments — exactly where these monitors live. Don't deploy this in a comms closet that swings above 35°C without active cooling in place.
• 3-year manufacturer warranty: For a cable this size, three years of coverage from StarTech is a practical backstop — long enough to cover most workstation refresh cycles without needing to track down a replacement mid-deployment.

Deployment Considerations:

• Verify DP++ dual-mode support on your source GPU or docking station before purchasing — a small number of embedded DisplayPort outputs lack DP++ and will not drive this passive adapter. This is the single most common compatibility miss in the field.
• No audio passes through DVI-D — if the operator desk needs sound at the monitor, route a separate 3.5mm or USB audio path. Don't assume the display's speakers will be driven by this connection.

The DP2DVI2MM3 is the right call for security operations centers and dispatch consoles where existing 1920x1200 DVI monitors are being paired with new workstation builds — it extends the useful life of those displays without any infrastructure overhead.
