Vertiv EDGE-2200IRT2UXL 2200VA/1980W 230V 2U Rack-Mount UPS

Overview

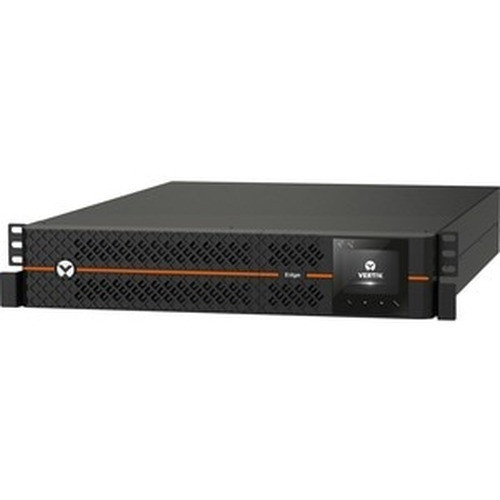

The Vertiv EDGE-2200IRT2UXL is a 2200VA/1980W line-interactive UPS in a 2U rack-mount form factor, rated for 230V environments. The 'XL' designation indicates an extended battery configuration, providing longer runtime compared to the standard EDGE-2200IRT2U — a meaningful difference in server room and network closet deployments where bridging a longer outage without generator handoff matters. This model is part of the Vertiv EDGE UPS line, designed for IT infrastructure, security system head-end rooms, and communications equipment racks where power continuity is non-negotiable.

At 2200VA/1980W, the EDGE-2200IRT2UXL covers mid-density rack loads — enough headroom for a network video recorder stack, PoE switch, and server in a single-rack security operations deployment. If you're sizing for a network video recorder environment or a multi-switch core, verify your actual watt draw against the 1980W output rating before committing to this capacity tier.

Key Features

• 2200VA / 1980W Output: Handles mid-range rack loads — enough for a fully populated NVR, core switch, and ancillary gear without running near the capacity ceiling, which degrades battery runtime and UPS lifespan.
• 2U Rack-Mount Form Factor: Fits standard 19-inch racks without consuming the extra 1U that 3U models require — relevant in dense deployments where rack space has a real cost.
• 230V Rating: Configured for international and European electrical standards; verify your facility's input voltage before ordering, as this unit is not intended for 120V North American circuits.
• XL Extended Battery: The XL variant provides more internal battery capacity than the base EDGE-2200IRT2U, extending runtime under load — the critical factor when generator start times run 30–90 seconds or when you need ride-through for a clean, ordered shutdown of multiple systems.
• Broad Accessory Ecosystem: Supports SNMP network management (IS-UNITY-SNMP), environmental sensors including temperature, humidity, leak detection, and door-contact monitoring (SN-Z01 through SN-L20), and contact-closure relay cards (RELAYCARD-PG) — giving infrastructure teams visibility into both power and physical environment from a single management interface.
• Replacement Battery Kit Available: The EDGE-2200IRT2UBATKIT is a documented replacement battery kit for this model, supporting a full battery lifecycle without replacing the UPS chassis — a practical consideration for installations with a 5–7 year deployment horizon.

Integration and Compatibility

The EDGE-2200IRT2UXL supports optional SNMP management cards (IS-UNITY-SNMP, IS-UNITY-DP) that integrate with standard NMS platforms via MIB, making it manageable alongside network gear in a unified network infrastructure monitoring workflow. The IS-UNITY-DP card extends this to SN-series environmental sensors, letting you monitor rack temperature, humidity, and physical access alongside UPS status. For teams managing power continuity across a UPS and power infrastructure portfolio, the relay card option (RELAYCARD-PG) provides dry-contact output for integration with building management or alarm systems. Warranty extension and Power Emergency services (RUPS-WE1-005 through RUPS-PE5-005) are available, allowing coverage to be aligned with your standard IT maintenance contracts. Consult your power and UPS planning resources to match runtime and capacity to your specific load profile before deployment.

Frequently Asked Questions

Q: What is the difference between the EDGE-2200IRT2UXL and the standard EDGE-2200IRT2U?

A: The XL suffix indicates an extended internal battery configuration, providing longer runtime under load compared to the standard model. If runtime during an outage is a primary concern for your deployment, the XL variant is the appropriate choice.

Q: Is the EDGE-2200IRT2UXL compatible with SNMP monitoring?

A: Yes. The optional IS-UNITY-SNMP card adds 10/100 Mbit Ethernet SNMP management, a device web page, MIB, and a configuration cable. The IS-UNITY-DP card extends this with support for SN-series environmental sensors including temperature, humidity, leak detection, and door-contact probes.

Q: What voltage does this UPS support — is it suitable for North American 120V installations?

A: No. The EDGE-2200IRT2UXL is rated for 230V environments, standard in Europe and international markets. It is not intended for 120V North American circuits. Verify your facility input voltage before ordering.

Q: Is a replacement battery kit available for this model?

A: Yes. The EDGE-2200IRT2UBATKIT is the documented replacement battery kit for this model, allowing battery replacement without replacing the UPS chassis.

Q: Can I add environmental monitoring to the EDGE-2200IRT2UXL?

A: Yes, via the IS-UNITY-DP management card combined with SN-series sensors: SN-Z01/Z02/Z03 for temperature and humidity, SN-L20 for leak detection, SN-2D for door contact monitoring, and SN-3C for dry-contact inputs. This turns the UPS management interface into a lightweight environmental monitoring node for the rack.

Jerry Tildsen

The EDGE-2200IRT2UXL sits in a capacity tier I see frequently in mid-size security infrastructure rooms — 2200VA/1980W is enough to carry a meaningful load without over-provisioning, and the XL battery variant specifically addresses the most common complaint I hear about base-model UPS units in these environments: insufficient runtime between outage onset and either generator pickup or an ordered shutdown sequence. That runtime buffer is why the XL matters in practice, not just on paper.

Technical Highlights:

• XL Extended Battery: More internal battery capacity than the standard EDGE-2200IRT2U — the runtime difference is what matters when your generator needs 45–60 seconds to reach stable output voltage and transfer, or when you need clean shutdown time for a multi-NVR stack.
• SNMP + Environmental Sensor Ecosystem: The IS-UNITY-SNMP and IS-UNITY-DP card options, combined with the SN-series probes (temperature, humidity, leak, door contact), let you instrument the rack environment alongside UPS status — reducing the number of separate monitoring systems needed in a small machine room.
• Documented Battery Replacement Path: The EDGE-2200IRT2UBATKIT is the named replacement kit for this chassis — important for installations where the UPS is expected to remain in service beyond a single battery cycle (typically 3–5 years depending on load and environment).

Deployment Considerations:

• The 230V rating is non-negotiable — this unit will not work on standard North American 120V circuits. Confirm facility input voltage before procurement, particularly on international projects or data center environments with mixed voltage infrastructure.
• The 'XL' designation refers to extended internal battery only — it does not change the output wattage or outlet configuration relative to the standard model. If you need more watt capacity, step up to the EDGE-3000 tier rather than assuming XL means more power output.

For a security operations head-end room running a 16- or 32-channel NVR, a managed PoE switch, and a server — all on 230V — the EDGE-2200IRT2UXL is a practical fit. The XL battery gives you the runtime margin that standard-battery units in this wattage class often can't deliver, and the SNMP card option means you're not flying blind on power status during an event.
