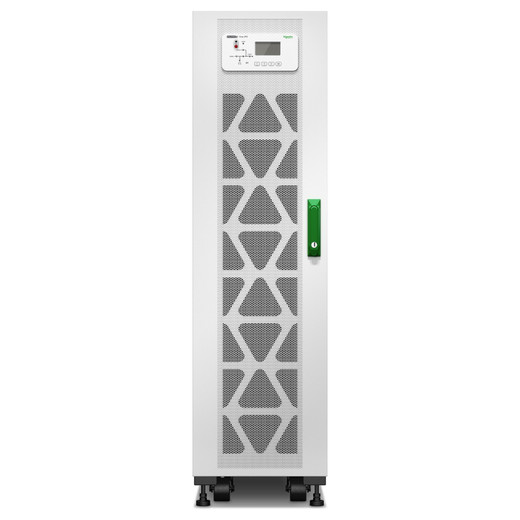

APC by Schneider Electric Easy UPS 3S Modular Battery Cabinet 208V - E3SXR7

APC by Schneider Electric E3SXR7 Easy UPS 3S Modular Battery Cabinet 208V

Overview

The E3SXR7 is an external battery cabinet designed to extend the runtime of APC Easy UPS 3S modular UPS systems operating at 208V. For data centers, server rooms, and critical infrastructure sites that need additional autonomy beyond what the UPS chassis itself provides, this cabinet adds sealed lead-acid battery capacity in a standalone tower enclosure — without requiring a full UPS upgrade or a separate power system redesign.

Tower-format battery cabinets like the E3SXR7 make sense when floor space is available and the goal is straightforward runtime extension on an existing APC by Schneider Electric Easy UPS 3S deployment. The white tower enclosure keeps the installation visually consistent with matching UPS hardware, and the modular architecture of the Easy UPS 3S platform means adding this cabinet is a planned expansion rather than an ad hoc fix.

Key Features

• Sealed Lead Acid (VRLA) Battery Technology: Valve-regulated lead acid chemistry requires no water maintenance and is safe for installation in occupied equipment rooms — no ventilation exemptions required for typical deployments. This is the industry standard for stationary UPS battery cabinets for good reason: proven reliability over the long battery replacement cycles common in commercial installations.
• 208V System Compatibility: Designed specifically for 208V Easy UPS 3S configurations, which are the standard input voltage for North American three-phase and single-phase commercial power environments. Matching the cabinet voltage to your UPS output avoids costly step-up/step-down transformer additions.
• Tower Form Factor: The standalone tower footprint allows floor-level installation adjacent to the UPS — practical in telecom closets, server rooms, or mechanical spaces where rack space is at a premium or where the UPS itself is not rack-mounted. No rack rails or cage nuts required.
• 0–40°C Operating Temperature Range: Covers standard conditioned equipment room environments. At the upper end, most data center hot-aisle conditions peak around 35–40°C, so this cabinet stays within spec in properly managed environments. Note: VRLA battery life degrades meaningfully above 25°C — plan your cooling accordingly if the cabinet will sit near a heat source.
• Operating Altitude up to 2,000 m (6,562 ft): Suitable for installations at elevation — relevant for facilities in mountain regions or high-altitude campus deployments where some UPS and battery products derate performance. No altitude-based derating concerns up to this threshold.
• 0–95% Relative Humidity Tolerance (Non-Condensing): Broad humidity range means the cabinet can survive in environments that experience seasonal humidity swings without requiring hermetic sealing — useful in industrial edge locations or facilities without precision HVAC.
• REACH and RoHS Compliance: Both certifications matter for enterprise procurement: RoHS restricts hazardous substances (lead exemptions apply for batteries under EU Directive), and REACH compliance supports chemical substance reporting requirements for global supply chains. Relevant if your organization has sustainability reporting obligations or EU site installations.
• 500 mm Wide Footprint: At 500 mm (approximately 19.7 inches) wide, the cabinet fits comfortably in standard equipment corridors and alongside typical UPS footprints, leaving clearance for cable management and service access on both sides.
• 940 mm Depth: The 940 mm depth (approximately 37 inches) is deeper than a standard server rack — plan for this when positioning the cabinet. Ensure the installation space has sufficient clearance behind the unit for rear cable connections and front access for battery replacement without moving adjacent equipment.

Integration and Compatibility

The E3SXR7 is engineered for the Easy UPS 3S modular platform at 208V. Before ordering, confirm your UPS chassis model supports external battery cabinet expansion and that your facility's power infrastructure is provisioned for the additional load. The Easy UPS 3S line is designed with scalability in mind — battery runtime extension via external cabinets is a supported architecture, not a workaround. For installations where runtime requirements may grow, provisioning conduit and circuit capacity for additional cabinets at initial build-out reduces retrofit costs later.

If your deployment also requires automatic transfer switching or redundant feed architecture, plan that at the UPS level rather than the battery cabinet level — the E3SXR7 is a passive battery extension device and does not add transfer or switching intelligence on its own.

Frequently Asked Questions

Q: What UPS systems is the E3SXR7 compatible with?

A: The E3SXR7 is designed for the APC Easy UPS 3S modular platform at 208V. Confirm your specific Easy UPS 3S chassis model supports external battery cabinet expansion before purchasing.

Q: What battery technology does the E3SXR7 use?

A: The E3SXR7 uses Sealed Lead Acid (VRLA) battery technology. VRLA batteries are valve-regulated, maintenance-free, and safe for installation in occupied equipment rooms without special ventilation.

Q: What is the operating temperature range for the E3SXR7?

A: The E3SXR7 operates between 0°C and 40°C (32°F to 104°F). Note that VRLA battery life is optimized at 25°C — sustained operation at higher temperatures will reduce battery service life.

Q: Is the E3SXR7 RoHS and REACH compliant?

A: Yes. The E3SXR7 carries both RoHS and REACH compliance certifications, supporting enterprise sustainability reporting and EU regulatory requirements.

Q: What is the footprint of the E3SXR7?

A: The E3SXR7 has a width of 500 mm (approximately 19.7 in) and a depth of 940 mm (approximately 37 in) in a tower form factor. Ensure adequate floor space and front/rear clearance in your installation area.

Q: Can the E3SXR7 be stored before installation?

A: Yes. Storage temperature range is -15°C to 40°C and storage relative humidity is 0–95%, giving reasonable flexibility for staging in warehouses or equipment rooms prior to commissioning.

James Everett

When I look at the E3SXR7, the detail that drives the deployment decision is the 940 mm depth — deeper than a standard two-post or four-post rack, and a spec that catches integrators off guard when they're sizing up a mechanical room. Plan your floor layout before this cabinet ships, not after.

Technical Highlights:

• VRLA Battery Chemistry: Sealed, maintenance-free operation with no water topping required — appropriate for equipment rooms where battery maintenance access is infrequent or where wet-cell batteries would require specialized handling protocols.
• 0–40°C Operating Range: Matches standard conditioned data center and server room specifications, but VRLA chemistry degrades faster above 25°C — a meaningful consideration for installations in edge locations or facilities with variable cooling.
• REACH + RoHS Compliance: Both certifications confirmed, which satisfies enterprise procurement checklists for EU-delivered projects or organizations with formal substance reporting requirements.

Deployment Considerations:

• The 500 mm width fits standard equipment corridors, but the 940 mm depth requires careful spatial planning — measure front and rear clearance before finalizing placement, especially in retrofit scenarios where adjacent equipment is already installed.
• Verify your specific Easy UPS 3S chassis model explicitly supports the E3SXR7 as an external battery expansion device before committing to this SKU — not all variants in the Easy UPS 3S line share identical expansion compatibility.

The E3SXR7 is a practical runtime extension choice for 208V Easy UPS 3S deployments in commercial server rooms and network operations centers where floor space is available and the priority is added autonomy on an existing APC modular UPS investment — without replatforming.
