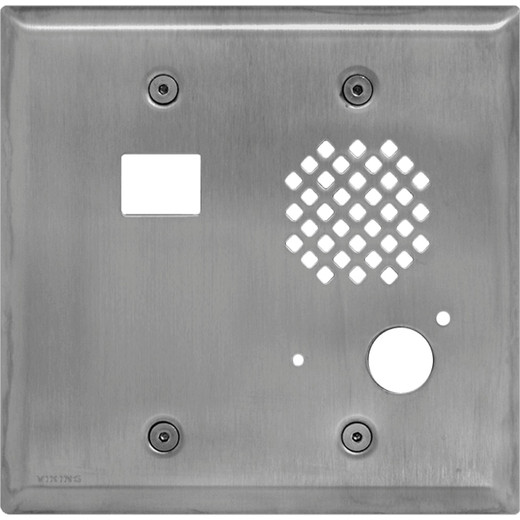

Viking E-65 Plate in Stainless Steel - PNL65-SS

Viking Electronics PNL65-SS E-65 Series Replacement Faceplate in Stainless Steel

Overview

The PNL65-SS is a direct replacement faceplate for Viking Electronics E-65 series entry intercom systems. At 123.8mm x 125.4mm x 4.3mm and formed from 18-gauge 304 stainless steel (0.048" thick), it provides a corrosion-resistant front surface suited to high-traffic vestibules, lobbies, and exterior-facing installations where the original faceplate has been damaged or where a stainless finish is required to match surrounding hardware. The PNL65-SS swaps in without modifying the underlying E-65 unit — meaning downtime is limited to the mechanical swap itself, not a full intercom replacement.

Compatibility

Designed specifically for the Viking E-65 series intercom platform (PNL65 faceplate family). The PNL65 series covers multiple finish variants — stainless steel (PNL65-SS), brushed nickel (PNL65-BN), white (PNL65-WH), and black (PNL65-BK) — all sharing the same mounting pattern and dimensions, so this plate is a like-for-like swap within that family. Confirm your installed E-65 unit accepts the PNL65 faceplate before ordering; this plate is not compatible with other Viking series (e.g. E-30, E-50, or E-1600 families).

Installation Notes

Mounts using #6-32 x 1.25" flat head screws with a 5/64" hex (Allen) drive — have the correct bit on hand before starting. The 304 stainless steel construction resists surface rust in damp or exterior-adjacent environments, but the E-65 unit itself governs the overall access control system environmental rating; verify the intercom's IP rating independently if weather exposure is a concern. 18-gauge, 0.048" material thickness matches the original faceplate profile, so existing gaskets and hardware alignment are preserved. No wiring changes are required — this is a mechanical surface replacement only.
