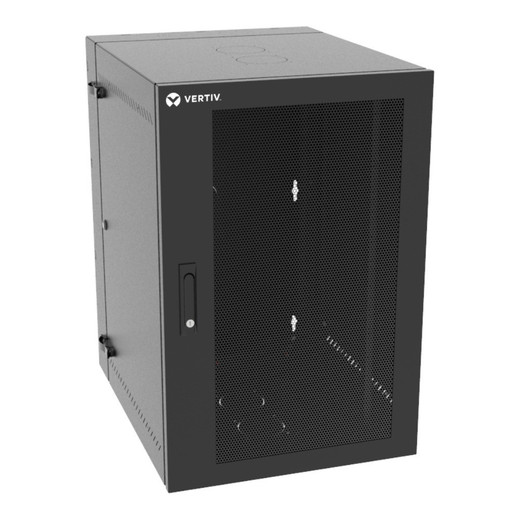

Vertiv GL720E-2936-B-SQM6MS 37U Black Mesh Front/Rear Rack Enclosure
Overview
The Vertiv GL720E-2936-B-SQM6MS is a 37U rack enclosure built for data center, IDF closet, and network equipment rooms where airflow and cable management discipline matter. At 29 inches wide and 36 inches deep, this cabinet hits the practical midpoint for modern 1U and 2U servers, NVR appliances, and high-density patch panels — deep enough to seat full-length servers without forcing cable contortion, wide enough to fit flush in a standard 600mm or 750mm row without dead space. The GL720E-2936-B-SQM6MS ships in black and uses a mesh front door and mesh rear door, which is the configuration most integrators reach for in temperature-controlled rooms where active cooling is present and maximum passive airflow between equipment rows is preferred over dust filtration.
This is part of Vertiv's Vertiv enclosure and infrastructure line — the same GL720E platform is available in multiple height, width, depth, color, and door configurations, so specifying the correct model number at purchase time is critical. The 2936-B-SQM6MS suffix encodes exactly what you are getting: 29" wide, 36" deep, black finish, square-hole M6 mounting pattern, mesh front, mesh rear.
Key Features
- 37U Usable Height: 37U provides room for dense equipment stacks — enough for a full NVR stack, patch panels, PoE switches, and UPS in a single cabinet without forcing a second rack mid-project. Plan your U-count before ordering; the GL720E platform also comes in 44U, 31U, 24U, and 13U if your equipment list runs shorter or taller.
- 29" Interior Width: The 29-inch width accommodates standard 19-inch rack-mount equipment with generous clearance on each side for vertical cable managers or tool-less rail systems. If your row is sized for 800mm (approximately 31.5") outer cabinet footprint, confirm aisle and door-swing clearance before committing.
- 36" Depth: 36 inches of internal depth clears the vast majority of 1U and 2U servers, NVR appliances, and high-port-count switches without rear-door interference. Shallow 1U patch panels will simply have excess depth — not a problem. Equipment exceeding 36" of body depth (rare in security and AV infrastructure) will not fit.
- Mesh Front and Mesh Rear Doors: Both front and rear doors are perforated mesh, which maximizes front-to-rear airflow and reduces hot-spot risk in actively cooled rooms. This is the right door configuration for PoE switches and compute-heavy NVRs that exhaust heat from the rear. If your closet is unairconditioned or dust-prone, a solid or plexi front door (available on other GL720E configurations) may be a better fit.
- M6 Square-Hole Mounting Pattern: The SQM6 rail system uses standard M6 square-hole cage-nut mounting — compatible with the full ecosystem of 19-inch rack-mount equipment, cage-nut tool kits, and blanking panels from any vendor. This is the industry-standard pattern for commercial rack enclosures; you will not need proprietary hardware to populate this cabinet.
- Black Finish: The black powder-coat finish blends into equipment rooms and data center environments where aesthetics and light absorption matter. If your deployment is a white or light-painted IDF room where asset identification benefits from a lighter cabinet, the GL720E platform also ships in Winter White.
- Multi-Configuration Platform: The GL720E line spans five height options (13U through 44U), two widths (24" and 29"), two depths (32" and 36"), two colors, and multiple door combinations — allowing you to standardize on one enclosure family across mixed equipment rooms. Mixing heights and depths in the same row is common; just confirm your floor-tile or overhead-busway alignment before ordering varying depths.
Integration and Compatibility
The GL720E-2936-B-SQM6MS is compatible with standard 19-inch rack-mount equipment across security, networking, AV, and IT infrastructure categories. The M6 square-hole rail accepts industry-standard cage nuts, which means any rack-mount server, network video recorder, managed switch, KVM, or UPS with standard 19" ears will install without adapter hardware. Verify the physical depth of your equipment against the 36" internal depth before ordering — measure from the front-plane of the ears to the deepest point of the unit (typically the rear connector panel or PSU exhaust).
Cable entry is managed through the enclosure's standard top, bottom, and side routing options typical of the GL720E platform. For high-density deployments, pair with vertical and horizontal cable management panels designed for the GL720E frame dimensions to keep patch runs organized and airflow unobstructed.
Frequently Asked Questions
Q: What is the exact U height of the GL720E-2936-B-SQM6MS?
A: This specific SKU is a 37U enclosure. The GL720E platform is available in 13U, 24U, 31U, 37U, and 44U configurations — the model number suffix determines the height, so confirm the SKU before ordering.
Q: What door configuration does the GL720E-2936-B-SQM6MS use?
A: It ships with a mesh front door and a mesh rear door. This configuration maximizes passive airflow in actively cooled rooms. Other GL720E SKUs are available with a plexi front door or solid rear door if your environment requires different airflow or dust control characteristics.
Q: What mounting rail standard does this rack use?
A: The GL720E-2936-B-SQM6MS uses M6 square-hole (3/8" sq.) rails — the industry-standard cage-nut pattern compatible with virtually all 19-inch rack-mount equipment. No proprietary adapters are required.
Q: Will full-depth 2U servers fit in the 36" depth?
A: Most 1U and 2U rack-mount servers and appliances measure 26"–32" in body depth, so the 36" internal depth provides adequate clearance for the vast majority of commercial equipment including rear cabling and connectors. Equipment exceeding 36" of total depth will not fit — measure your deepest unit before ordering.
Q: Is the GL720E-2936-B-SQM6MS available in other colors or door styles?
A: Yes. The GL720E platform is offered in Black and Winter White, and with Mesh Front/Rear, Plexi Front, and PV Solid Rear door configurations. The model number suffix encodes your selection — verify the full SKU matches your requirements at time of order.
The GL720E-2936-B-SQM6MS is the configuration I recommend most often for mid-density IDF and network equipment rooms: 37U of usable space, 36" of internal depth, and dual-mesh doors that keep airflow from becoming your next support call. The mesh-on-both-sides setup works well when you have precision cooling or in-row cooling units doing the heavy lifting — you are not fighting restricted airflow through a solid panel at either end of the equipment stack.
Technical Highlights:
- 37U Capacity: Enough vertical space to build out a complete site rack — UPS at the bottom, patch panels at the top, switches and NVRs in the middle — without splitting across two cabinets and doubling your inter-rack cabling runs.
- M6 Square-Hole Rails: The 3/8" sq. M6 pattern means you can source cage nuts, blanking panels, and rail accessories from any infrastructure vendor. No proprietary hardware lock-in, which matters when you are provisioning at scale or sourcing replacement hardware on short notice.
- Mesh Front and Rear Doors: Perforated mesh on both faces keeps front-to-rear airflow unrestricted — the right call for PoE switch stacks and compute-intensive NVR appliances that exhaust heat rearward. If dust ingress is a concern in your environment, note that mesh offers no particulate filtration.
Deployment Considerations:
- The 29" width and 36" depth place the outer cabinet footprint at approximately 750mm x 915mm — verify your floor tile grid, raised floor cutout alignment, and aisle clearance before the cabinet arrives on site. Correcting a depth mismatch after installation is costly.
- Mesh doors provide zero dust or particulate filtration. In manufacturing floors, warehouse edges, or any environment with airborne particulate, specify a solid or filtered-door GL720E variant instead. Deploying mesh in a dusty environment will accelerate hardware fouling.
This cabinet is well-suited for a purpose-built security infrastructure room — a 37U stack housing a multi-channel NVR, managed PoE switches for camera feeds, a UPS, and a patch panel for structured cabling termination. The dual-mesh configuration keeps thermals in check when the room has dedicated cooling, and the M6 rail handles every piece of commercial security hardware without adapter hassle.
