QNAP QXP-T32P Thunderbolt 3 NAS Expansion Card
Overview

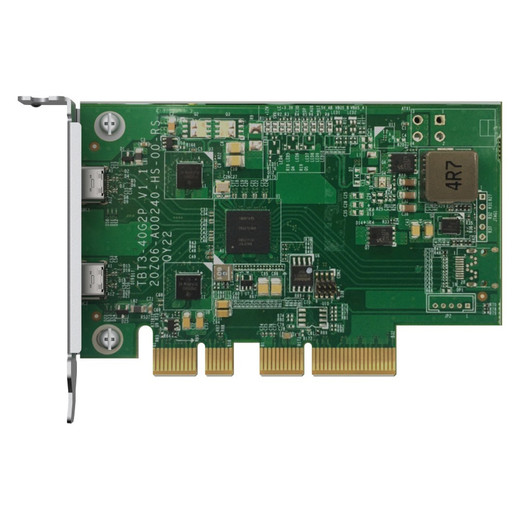

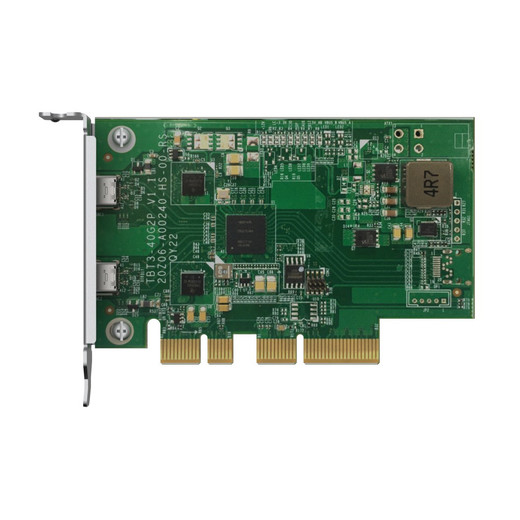

The QXP-T32P is a dual-port Thunderbolt 3 PCIe expansion card that installs directly into a compatible QNAP NAS to add high-bandwidth Thunderbolt 3 connectivity. The primary deployment scenario is video editing workflows where direct-attach storage over Thunderbolt 3 eliminates the latency and throughput bottlenecks of standard Ethernet — multi-stream 4K and RAW editing pipelines in particular benefit from the 40 Gbps Thunderbolt 3 bus. Once installed, the QXP-T32P also enables daisy-chaining of up to 6 QNAP Thunderbolt devices — including other QNAP NAS units and Thunderbolt 3 peripherals — off a single card, so a post-production suite can expand storage capacity without adding switch infrastructure.
Compatibility
The QXP-T32P is explicitly compatible with two QNAP high-capacity NAS models: the TVS-h1288X and the TVS-h1688X. These are QNAP's ZFS-based enterprise NAS platforms with PCIe expansion slots that accept this card. Do not attempt installation in any other QNAP model — the card is not listed as compatible with the broader TVS or TS series, and slot/firmware support is model-specific. If your deployment uses a different QNAP chassis, verify slot compatibility directly against the QNAP expansion card compatibility matrix before ordering.
Installation Notes
The QXP-T32P installs into a PCIe expansion slot on the TVS-h1288X or TVS-h1688X. Thunderbolt 3 daisy-chain topology requires that each downstream device also support Thunderbolt 3 — USB-C devices without Thunderbolt certification will not function at Thunderbolt speeds. Confirm that your host workstation or downstream NAS has a native Thunderbolt 3 port; Thunderbolt 4 ports are backward compatible, but USB4 ports without explicit Thunderbolt certification are not guaranteed to operate at full bandwidth.
