Zebra ZT23142-D01000FZ 4-Inch 203 dpi Direct Thermal Label Printer
Overview
The Zebra ZT23142-D01000FZ is a 4-inch direct thermal label printer built on the ZT231 platform — Zebra's entry point into the industrial label printer category. At 203 dpi with direct thermal printing, it covers the core barcode labeling workloads most operations actually run: shipping labels, receiving labels, bin location tags, and compliance labels where media cost matters more than archival permanence. The ZT231 platform is designed for environments that need something more durable and duty-cycle-capable than a desktop printer but don't require the heavier throughput of the ZT400 or ZT600 series. If your label volumes run in the hundreds to low thousands per shift and your labels don't need to survive harsh chemicals or outdoor UV exposure (direct thermal media degrades under both), the ZT23142-D01000FZ is worth a close look in the broader Zebra industrial printer lineup.
Key Features
- 203 dpi Direct Thermal Print Engine: 203 dpi resolves standard 1D barcodes (Code 128, Code 39) and common 2D symbologies (QR, Data Matrix) cleanly at typical label sizes. Direct thermal eliminates ribbon procurement and changeover — no ribbon stock to manage, no ribbon jams, no ribbon end-of-roll downtime. The tradeoff: direct thermal media is heat- and light-sensitive, so labels in high-temperature environments or long-term outdoor exposure will degrade.
- Tear-Bar Media Handling: The tear configuration on this SKU suits continuous-roll label applications where operators peel and apply individually. No motorized cutter mechanism means one fewer moving part to service. If your line needs automatic cut-and-present, a cutter-equipped ZT231 variant would be the correct model instead.

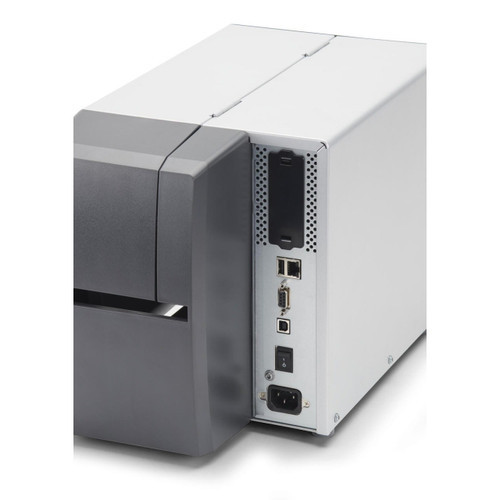

- USB + Serial + Ethernet Connectivity: Three wired interfaces ship standard — USB for direct workstation or Raspberry Pi/single-board-computer connections, Serial for legacy PLC or warehouse management terminal integrations still running RS-232, and Ethernet for network-connected deployment off a label server or directly addressed by a WMS. This breadth means the ZT23142-D01000FZ (often searched as ZT23142 D01000FZ) integrates into almost any existing infrastructure without an adapter.
- Bluetooth Low Energy (BLE): BLE enables wireless configuration and status monitoring via Zebra's mobile apps without requiring the printer to be on the Wi-Fi network. This is useful for maintenance technicians walking the floor — check printer status, update settings, or push a firmware update from a phone without pulling a laptop. BLE is a management channel, not a high-throughput print channel; don't plan label streaming over it.
- US Power Cord Included: Ships with a US-standard power cord, which matters for domestic deployments where procurement teams want a ready-to-install unit without sourcing accessories separately.
Integration and Compatibility
The ZT231 platform supports Zebra's ZPL and EPL programming languages — the same command set used across the ZT200, ZT400, and ZT600 series, which means print templates and label formats built for other Zebra barcode label printers migrate without rewriting. It is compatible with Zebra's ZebraDesigner label design software and broadly supported by third-party WMS and ERP label modules that include native Zebra driver support. The Ethernet port enables direct integration with label servers running platforms like NiceLabel, BarTender, or Loftware. Serial connectivity also covers integration with warehouse automation controllers and industrial terminals that have not migrated to TCP/IP-based printer addressing. Verify your WMS vendor's ZT231 certification if running a tight integration, as some platforms certify by series rather than individual SKU.
Frequently Asked Questions
Q: What is the difference between the ZT23142-D01000FZ and a transfer-ribbon ZT231 variant?
A: The ZT23142-D01000FZ is a direct thermal-only model — it prints by applying heat directly to thermally sensitive media and does not use a ribbon. Thermal transfer ZT231 variants use a ribbon to transfer ink onto media, which produces labels more resistant to heat, light, and chemical exposure. Choose direct thermal for short-lifecycle labels like shipping or receiving; choose thermal transfer for labels that need to last months or survive harsh environments.
Q: Does the ZT23142-D01000FZ support Wi-Fi?
A: This specific SKU does not include a Wi-Fi radio. It ships with USB, Serial, Ethernet, and Bluetooth LE. If Wi-Fi is required, Zebra offers ZT231 configurations with an 802.11 radio — verify the SKU suffix for the wireless option before ordering.
Q: Can this printer handle 4-inch-wide labels?
A: Yes. The ZT231 platform supports 4-inch media width, which is the standard for most shipping, compliance, and warehouse labeling applications.
Q: Is the ZT23142-D01000FZ compatible with ZPL label formats used on other Zebra printers?
A: The ZT231 series supports Zebra's ZPL programming language, which is consistent across the ZT-series industrial printer line. Existing ZPL templates designed for other Zebra industrial printers should be compatible without reformatting.
Q: Does the Bluetooth LE connection allow printing labels wirelessly?
A: Bluetooth LE on the ZT231 is primarily a management and configuration channel, used with Zebra mobile apps for status monitoring, settings updates, and maintenance tasks. For production-volume label printing, use the Ethernet or USB interface.
The ZT23142-D01000FZ sits in a practical middle ground I see underserved in a lot of distribution and light manufacturing sites — operations that have outgrown desktop Zebra GK/GX printers but don't have the label volumes or duty cycles that justify stepping up to a ZT420 or ZT610. The 203 dpi direct thermal configuration is the right call when you're running standard shipping or receiving labels and want to eliminate ribbon as a consumable entirely.
Technical Highlights:
- Direct Thermal, No Ribbon: Eliminating the ribbon removes a consumable reorder cycle, a changeover step, and a category of jam that eats technician time. For operations printing 500–2,000 labels per shift on short-lifecycle media, the maintenance simplicity alone justifies the direct thermal selection.
- Quad-Interface Standard: USB, Serial, Ethernet, and BLE on a single SKU means you can drop this into a legacy serial-connected line, a networked label server environment, or a workstation-direct setup without any add-on cards or adapters. That flexibility reduces procurement complexity when you're standardizing across mixed infrastructure.
- ZPL Compatibility Across the ZT Series: The ZT231's ZPL support means your existing Zebra label formats — whether built in ZebraDesigner, BarTender, or NiceLabel — transfer without rework. That matters most during fleet upgrades when you're replacing older GX or GT series printers in place.
Deployment Considerations:
- Direct thermal media is not suitable for labels exposed to sustained heat above approximately 150°F, direct sunlight, or chemical contact — if any of those conditions apply to your label's lifecycle, specify a thermal transfer ZT231 variant instead.
- BLE is a management channel only — do not architect a print workflow that relies on Bluetooth for label data throughput. Plan your label server or WMS integration around Ethernet for anything above occasional manual printing.
This unit is well-matched for inbound receiving stations, small pack-and-ship operations, and cross-dock label printing where the team needs a reliable network-connected printer without ribbon management overhead.
