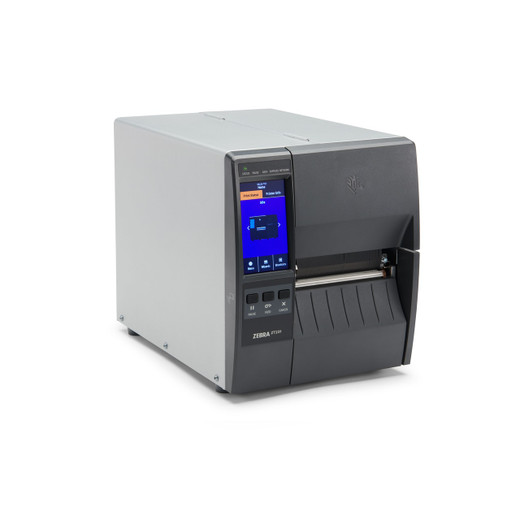

Zebra ZT23142-T21000FZ 4-Inch 203 DPI Thermal Transfer Label Printer with Cutter
Overview
The Zebra ZT23142-T21000FZ is a 4-inch industrial-class thermal transfer label printer configured with a built-in cutter and three-interface connectivity — USB, Serial, and Ethernet — making it a practical fit for distribution centers, manufacturing lines, and compliance-labeling stations where cut-and-present output is a workflow requirement rather than an option. As part of Zebra's ZT231 printer line, this model ships with a US power cord and is positioned in the mid-range industrial tier between desktop convenience printers and heavy-duty print engines.
At 203 dpi, the ZT23142-T21000FZ produces print resolution suited to standard barcodes, human-readable text, and logistics labels — the right call for GS1-128 carton labels, bin location tags, and receiving documentation where symbol density doesn't require the finer dot pitch of a 300 or 600 dpi engine. If you're printing small QR codes or fine-pitch 2D symbologies intended to be scanned at short range from hand-held imagers, 203 dpi is the conventional starting point that most WMS-driven label formats are already designed around.
Thermal transfer print method means this unit uses a ribbon to deposit resin or wax-resin ink onto the label substrate — the right choice when label durability matters (outdoor asset tags, chemical-environment labels, long-retention shelf labels). Direct thermal, by contrast, skips the ribbon but produces labels that fade under heat and UV; if your application involves any of those conditions, thermal transfer is the correct method selection here. The built-in label printer cutter eliminates the manual tear-bar step and supports automated cut-length workflows, which reduces operator handling time on moderate-to-high-volume runs.
Connectivity covers the three interfaces specified in the SKU: USB for direct workstation or print-server connection, RS-232 Serial for legacy PLC or terminal integrations still common in older warehouse control systems, and Ethernet for network-attached printing across shared print queues or ZPL-over-TCP/IP environments. This combination means the ZT23142-T21000FZ can drop into a range of existing infrastructure without requiring a converter or print server appliance.
Note: the source evidence for this SKU is limited to the interface, print method, resolution, and cutter configuration. Specifications including print speed, media width range, maximum label length, ribbon capacity, operating temperature, memory, and certifications are not available in the verified data supplied and are therefore not stated here. Consult Zebra's official product documentation for the full ZT231 specification sheet before finalizing media compatibility or environment suitability decisions.
Key Features
- 203 dpi Thermal Transfer: Covers the vast majority of standard logistics and compliance label formats — GS1-128, Code 128, UPC-A — without over-specifying resolution you won't use on large carton labels.
- Built-in Cutter: Automates label separation on each print cycle, removing the manual tear step and supporting tighter cycle times on fulfillment lines that run continuous-feed media.
- USB + Serial + Ethernet: Three interfaces in a single unit means the printer can connect to a modern workstation via USB, integrate with a legacy PLC or terminal via RS-232, or attach to a shared network print queue over Ethernet — without a converter.
- Thermal Transfer Print Method: Ribbon-based ink transfer produces labels that hold up under moisture, moderate heat, and handling — the correct method when direct thermal's UV/heat sensitivity would cause premature label fade.
- US Power Cord Included: Ships ready to plug into standard North American circuits; no separate power accessory required for domestic deployments.
Integration and Compatibility
The Ethernet interface supports ZPL (Zebra Programming Language) over TCP/IP, the de facto standard for Zebra label printers, meaning most WMS, ERP, and shipping platforms with existing Zebra driver support will recognize this unit without custom driver development. USB connectivity is compatible with Zebra's Windows and Linux driver packages. Serial connectivity is RS-232, which integrates with older automation controllers and embedded systems that predate USB host support. If your environment runs Zebra's ZT-series printer fleet under a centralized management platform such as Zebra's Print DNA suite or a third-party print management system, the ZT231 family is supported under those ecosystems — confirm version compatibility with your software vendor for the ZT23142-T21000FZ specifically. For pairing with label applicators or automated print-and-apply systems, verify cutter timing and signal handshake requirements against your applicator controller spec before commissioning.
Frequently Asked Questions
Q: What interfaces does the ZT23142-T21000FZ support?
A: The ZT23142-T21000FZ includes USB, RS-232 Serial, and Ethernet interfaces. This covers direct workstation connection, legacy PLC/terminal integration, and network-attached shared printing without requiring an external print server or converter.
Q: Is this printer direct thermal or thermal transfer?
A: Thermal transfer. It uses a ribbon to apply ink to the label substrate, which produces more durable output than direct thermal — suitable for labels exposed to moisture, moderate heat, or extended storage. A separate ribbon supply is required.
Q: Does the ZT23142-T21000FZ include a cutter?
A: Yes. A built-in cutter is included as part of this SKU configuration, enabling automatic label separation after each print cycle without a manual tear-bar step.
Q: What print resolution does the ZT23142-T21000FZ use?
A: 203 dpi. This is the standard resolution for most logistics, shipping, and compliance label formats including GS1-128 and Code 128 barcodes. For very small or high-density 2D symbologies, a 300 dpi variant would provide finer detail.
Q: Does this printer support ZPL?
A: The ZT231 series is a Zebra industrial printer and supports ZPL (Zebra Programming Language), which is the standard for Zebra printers and is supported by most WMS, ERP, and shipping platforms with existing Zebra integration. Confirm driver and firmware version compatibility with your specific software platform.
Q: Is a power cord included with the ZT23142-T21000FZ?
A: Yes. This SKU includes a US power cord, so it ships ready for standard North American electrical connections.
The ZT23142-T21000FZ is the cutter-equipped, three-interface configuration of Zebra's ZT231 — a 203 dpi thermal transfer engine that I'd route to operations teams replacing aging mid-range print stations where USB-only connectivity creates a bottleneck when they also need to feed a PLC or hang the printer off a shared Ethernet queue. The cutter is built in, not bolted on as an afterthought, which matters when you're running continuous-feed stock and want clean, consistent label separation without operator intervention between cycles.
Technical Highlights:
- 203 dpi Thermal Transfer: Matches the dot pitch that GS1-128 and Code 128 label formats are designed around — you're not paying for resolution overhead that standard logistics labels can't use.
- Built-in Cutter: Cuts after each label cycle automatically; removes the manual separation step on moderate-to-high-volume runs and keeps label handling consistent across shifts.
- USB + Serial + Ethernet: Three interfaces mean you can drop this unit into a legacy RS-232 control environment, a USB workstation setup, or an Ethernet print queue — without a protocol converter sitting in between.
Deployment Considerations:
- Thermal transfer requires a ribbon — budget for ribbon supply as a consumable alongside label stock. If your operation already runs Zebra thermal transfer printers, your existing ribbon SKUs may be compatible with the ZT231 media path, but verify width and core size against the ZT231 ribbon specification before ordering bulk supply.
- The cutter adds a mechanical wear component. In very high-cycle environments (tens of thousands of cuts per shift), factor cutter blade replacement into your maintenance schedule — this is true of any printer with a built-in cutter mechanism, not unique to this model, but worth confirming with your service plan.
This configuration is the right call for a distribution center or manufacturing compliance station that needs network-attached thermal transfer output with automatic label cut, and where the existing infrastructure includes a mix of modern Ethernet print queues and at least one legacy serial control point that the USB-only alternatives on the market can't address without an adapter.
