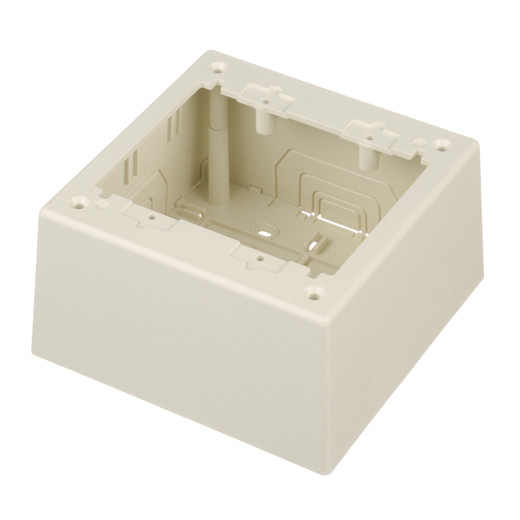

Panduit JBP2DIW Pan-Way Deep Power-Rated Junction Box
The Panduit JBP2DIW is a double-gang, deep-profile power-rated junction box engineered for Pan-Way LD surface raceway systems. Built for commercial security, A/V, and IT installations where cutting into walls isn't an option—historic buildings, concrete/masonry structures, or rapid retrofit projects—this two-piece screw-together box delivers 2.75 inches of internal depth for high wire counts and accepts any standard NEMA double-gang faceplate. Off-white PVC construction provides a clean finish while meeting RoHS compliance for sustainable installations.
Key Features
- Power-rated double-gang junction box compatible with Panduit Pan-Way LD profile surface raceway
- Deep profile: 5.19" L × 5.19" W × 2.75" H (131.9mm × 131.9mm × 69.8mm) for increased wire capacity
- Two-piece screw-together design simplifies installation and field maintenance access
- Accepts Pan-Way screw-on faceplates or any NEMA standard double-gang faceplate
- Off-white PVC construction for clean aesthetic integration
- RoHS compliant for environmentally responsible projects
Power-rated junction boxes carry a critical distinction in commercial installations: they're certified to house line-voltage wiring (120/240VAC mains), not just low-voltage control or data runs. The JBP2DIW's deep 2.75-inch profile provides substantially more internal volume than shallow single-gang boxes, allowing integrators to terminate multiple circuits, accommodate wire nuts or Wago connectors for parallel runs, and still maintain NEC fill calculations without cramming. The two-piece screw-together construction means you can surface-mount the base to the wall, run your raceway feeds, make all terminations with the box open, then snap the cover on—no awkward one-handed wire-stuffing while holding a faceplate. For access control panels fed from surface raceway, or IP camera PoE injectors mounted on exposed walls, this box gives you inspection-ready terminations that meet code without cutting sheetrock.
Panduit's Pan-Way LD raceway system is the backbone of professional surface cable management—used in schools, retail, healthcare, and light industrial spaces where surface-mount is mandated by building codes or lease terms. The JBP2DIW integrates directly with LD raceway channels via knock-out entries on all four sides, letting you route power and data in separate channels while terminating at a common box. Faceplate flexibility is a major advantage: you're not locked into Panduit's proprietary plates—any Leviton, Hubbell, or Pass & Seymour double-gang decorator plate fits, so you can match existing electrical fixtures or use preferred brand receptacles. Typical deployments include adding outlets to concrete-wall server rooms, feeding wall-mounted PoE switches in retrofit surveillance installs, or powering access readers in stairwells where conduit isn't feasible.
RoHS compliance ensures halogen-free, low-toxicity materials for LEED projects or municipal contracts with green mandates. NEMA standard gang dimensions guarantee compatibility with off-the-shelf electrical devices—no adapter brackets or custom plates. For integrators running mixed-brand systems or maintaining job-site flexibility, the JBP2DIW offers the wire capacity of a deep box, the power rating for mains voltage, and the universal faceplate fitment that keeps material costs predictable across multi-site rollouts.
