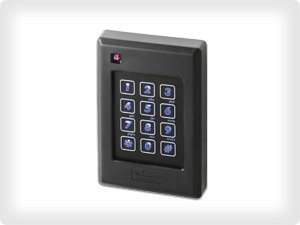

DMP P-640-H-A Patagonia Proximity Reader with Keypad

DMP P-640-H-A Proximity Reader with Keypad

Overview

The DMP P-640-H-A is a wired proximity card reader with integrated keypad designed for access control integration with DMP control panels. This dual-credential reader accepts proximity cards, proximity tags, and PIN codes, providing flexible authentication options for mid-range security installations. The P-640-H-A combines proximity technology with numeric keypad entry, allowing facility managers to deploy either credential type or require multi-factor authentication at controlled entry points.

Key Features

• Dual Credential Support: Accepts proximity cards and proximity tags for contactless authentication, plus PIN code entry via integrated keypad
• Wired Integration: Direct RS-485 or proprietary wired connection to DMP access control panel for real-time credential verification
• Reader Type: Proximity card and keypad reader in single faceplate mounting
• PIN Code Authentication: Integrated numeric keypad enables PIN-based access independent of or in combination with proximity credentials
• Proximity Technology: 125 kHz proximity card and tag reading for high-traffic door control
• Panel Communication: Wired protocol compatible with DMP access control system architecture for seamless door control integration
• Standard Installation: Faceplate design accommodates typical door frame and mullion mounting configurations
• Credential Flexibility: Supports mixed-mode deployments combining proximity and keypad methods within the same access control zone

Integration & Compatibility

The P-640-H-A connects directly to DMP access control panels via wired communication. The reader transmits credential data to the panel in real time, enabling the control system to validate against user databases and trigger electric strikes, magnetic locks, or door control relays. Integration does not require intermediate converters or protocol translation. PIN entry transmits numeric input to the panel for authentication against stored codes. Proximity card data formats conform to standard 125 kHz Wiegand output, ensuring compatibility with DMP reader modules and data formats. Installers should verify panel firmware version supports dual-credential reader addressing before deployment. The wired architecture eliminates wireless interference and provides guaranteed communication for critical access points.

When planning deployment, confirm the number of doors and users the target DMP panel supports, and verify credential capacity matches facility headcount. The P-640-H-A operates within standard DMP system limits for readers per zone and allows integration with other DMP reader types on the same panel. Credential scheduling, access level assignment, and audit logging are managed through the DMP control panel interface, not the reader itself.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the DMP P-640-H-A in a number of mid-scale access control rollouts where clients needed both proximity card reader capability and PIN fallback at the same door. The combination of these two credential types in one reader saves faceplate real estate and simplifies wiring compared to separate devices. The P-640-H-A integrates directly to DMP panels, which streamlines the BOM for integrators already standardized on DMP infrastructure.

Technical Highlights:

• Proximity + PIN in One Reader: Eliminates the need for dual-reader installation; credentials and PIN codes are processed by the same DMP reader module
• Wired Reliability: Direct hardwired connection to the DMP panel ensures no wireless latency or signal loss—critical for high-security or high-traffic zones
• Credential Type Flexibility: Proximity cards and tags operate at standard 125 kHz frequency; PIN entry supports numeric codes for staff or visitor authentication

Deployment Considerations:

• Verify your DMP panel firmware and reader module version support dual-credential (proximity + keypad) input before ordering; older panel revisions may require reader module upgrades
• Plan credential issuance workflows carefully—decide whether proximity cards are primary or PIN is primary, or require both for multi-factor authentication
• Route reader cabling in conduit to protect wires from environmental exposure and mechanical damage in door frame installations
• Proximity card read range is typically 3–6 inches; position reader at chest height for ergonomic card presentation and consistent reads

For facilities rolling out DMP access control or retrofitting proximity readers into existing DMP systems, the P-640-H-A delivers cost-effective dual-mode authentication without sacrificing integration simplicity. The wired architecture and proximity + PIN capability make it a practical choice for building entry, server room access, and secure zone control where both credential types add operational flexibility.
