DMP 777 Protective Keypad Cover

DMP 777 Protective Keypad Cover

Overview

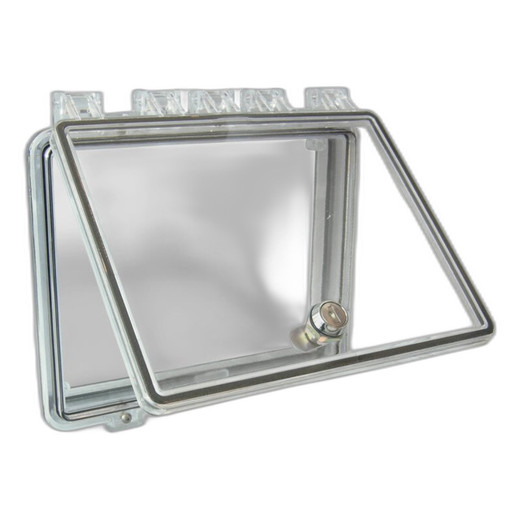

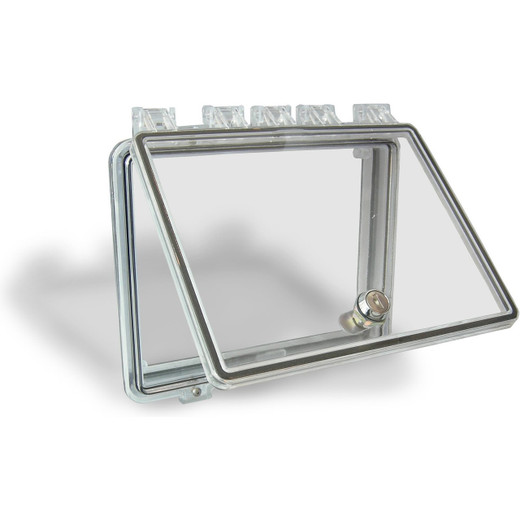

The DMP 777 is a clear polycarbonate protective cover designed to shield DMP keypad readers from physical damage and environmental exposure in high-traffic entry points. The cover maintains full credential detection capability — NFC readers remain functional behind the transparent material, so you don't sacrifice reader performance when adding physical protection. A key lock prevents unauthorized removal, and the included spare gasket maintains the seal over repeated access cycles.

Compatibility

The 777 is designed for DMP LCD keypads. Verify your specific keypad model against DMP's product family before ordering — compatibility is limited to LCD-series readers within the DMP keypad line. The cover does not alter communication protocol or credential handling; it works with existing TCP/IP-networked access control systems using NFC/13.56 MHz credential technology.

Installation Notes

Dimensions are 9.75" W × 8.5" H × 2" D. The cover mounts to standard keypad installations without modification to wiring or mounting brackets. The key lock mechanism secures the cover in place; retain keys for service access. The gasket should be inspected periodically, especially in high-humidity environments or locations subject to temperature cycling — the spare gasket included supports one replacement cycle.

What's in the Box

• 1x DMP 777 Protective Keypad Cover (clear polycarbonate)
• 1x Spare gasket
• Key lock (pre-installed)
