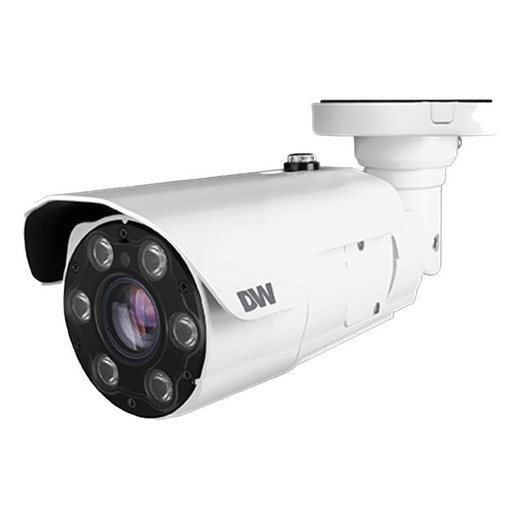

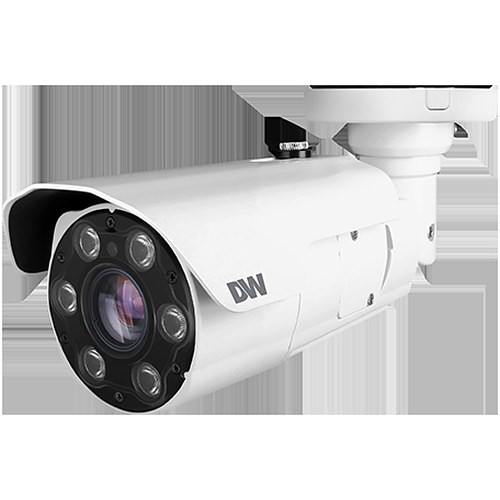

Digital Watchdog DWC-XSBA05MiL 5MP AI WDR Night Vision Outdoor Bullet IP Camera

Digital Watchdog DWC-XSBA05MiL 5MP AI Bullet Camera

The Digital Watchdog DWC-XSBA05MiL is a professional-grade 5MP outdoor bullet camera engineered for mission-critical surveillance applications. Combining advanced AI analytics, exceptional low-light performance, and robust construction, this camera delivers intelligent threat detection and identification capabilities in demanding outdoor environments. Built on a 1/2.8" CMOS Star-Light Plus™ sensor, it captures 2592 x 1944 resolution imagery with true 120dB WDR to handle challenging lighting conditions.

Key Features

• 5MP resolution with 2592 x 1944 active pixels for detailed surveillance
• AI-powered analytics including ANPR, intrusion detection, line crossing, and tailgating
• Automatic Number Plate Recognition (ANPR) at 23–165 ft (day) and 23–131 ft (night)
• Advanced low-light imaging: 0.0 lux (B/W), 0.10 lux (color) with Star-Light Plus™ sensor
• 130 ft Smart IR™ range for comprehensive night vision coverage
• Motorized vari-focal lens (6mm–50mm) with auto focus and P-iris control
• True WDR 120dB for extreme backlight and glare environments
• PoE power delivery with minimal power draw (14.4W at 0.3A)
• IP67 and IK10 rated construction for outdoor durability
• H.264/H.265/MJPEG multi-streaming up to 30fps
• Dual-stream capability at different rates and resolutions
• 16 programmable privacy masks and smart DNR™ 3D noise reduction
• Micro SD/SDHC/SDXC card slot (up to 1TB) for local recording

Technical Highlights

The DWC-XSBA05MiL's Star-Light Plus™ sensor enables ultra-low-light color imaging, making it ideal for 24/7 monitoring of parking lots, entry points, and perimeter security. The vari-focal motorized lens provides flexible field-of-view adjustment (40.8°–6.9° HFOV) without repositioning hardware, reducing installation complexity.

AI analytics filters include zones and lines, tamper detection, metadata extraction, intrusion alerts, line-crossing detection, people and vehicle counting, dwell monitoring, direction analysis, and logical rule-based triggers. ANPR supports European license plates across 30+ countries at operating speeds of 25–75 mph, with dedicated day and night recognition ranges.

Video compression via H.265 reduces bandwidth to 100–25 Mbps while maintaining quality. Dual-streaming enables simultaneous preview and recording at different resolutions. The camera operates seamlessly with DW Spectrum® IPVMS, Milestone Systems, and any ONVIF-conformant VMS platform.

Environmental resilience spans -40°F to 122°F (-40°C to 50°C) with 10–90% non-condensing humidity tolerance. The aluminum die-cast housing with IP67 sealing and IK10 impact rating withstands harsh weather, vandalism, and mechanical stress. PoE simplification reduces installation time and cost by eliminating separate power runs.

Applications

Ideal for vehicle monitoring (parking enforcement, toll collection, traffic analysis), facility perimeter security, critical infrastructure protection, and intelligent transportation systems. The combination of high resolution, AI analytics, and extended IR range makes it suitable for airports, ports, highways, and large commercial properties.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-XSBA05MiL stands out in the 5MP outdoor segment through its ANPR capability and intelligent analytics suite. The Star-Light Plus™ sensor delivers genuine ultra-low-light performance without excessive noise, critical for 24/7 operations. H.265 codec efficiency reduces storage and bandwidth overhead by up to 50% versus H.264, important for multi-camera deployments.

The motorized vari-focal lens with P-iris eliminates fixed-angle limitations while protecting the sensor from overexposure. Integration with DW Spectrum® IPVMS provides native AI processing optimization. The 5-year warranty reflects Digital Watchdog's confidence in outdoor durability.

For organizations prioritizing vehicle identification and AI-driven event detection, this camera justifies its investment through operational intelligence and reduced false alarm rates.
