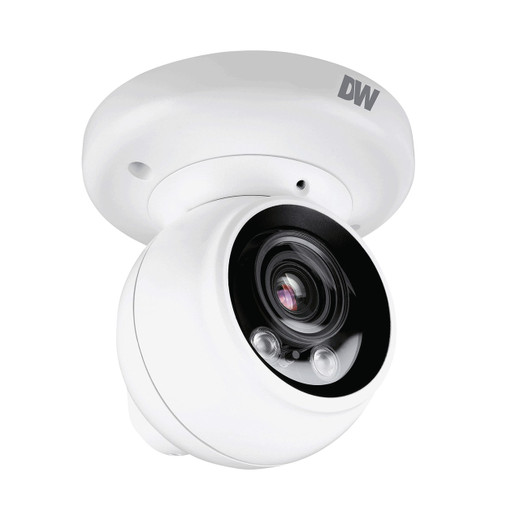

Digital Watchdog DWC-VA583WTIR 5MP Star-Light IR PTZ Turret Camera
Overview
The DWC-VA583WTIR is a 5MP outdoor PTZ turret designed for perimeter and high-traffic area surveillance where motorized zoom and low-light flexibility matter. This camera combines Star-Light sensor technology with a motorized varifocal lens, intelligent IR management, and broad codec support—making it useful for both retrofit analog-coax systems and modern IP deployments. Built from aluminum die-cast housing with IP66 weatherproofing and IK10 vandal resistance, it handles sustained outdoor exposure without enclosure panels.
The core value proposition: color night vision without aggressive IR wash-out, paired with pan-tilt-zoom flexibility to tighten coverage on demand. If you're evaluating outdoor IP cameras for a mid-range deployment where a fixed lens or basic IR falls short, this model earns careful consideration.
Key Features
- 5MP 1/2.8" CMOS sensor, progressive scan: Captures 2592×1944 detail at 30fps (1080p), sufficient for identifying faces and vehicle plates at typical perimeter distances. The 1/2.8" chip size balances light sensitivity against compact form factor—larger sensors exist but require bigger housings and more power.
- Star-Light technology (0.08 lux color, 0.0 lux B/W): Renders usable color video in near-darkness—a critical advantage over standard fixed-IR cameras that switch to grayscale night mode. Meaningful for parking lots, building entries, and campus grounds where color detail aids investigation and threat assessment.
- 80-foot Smart IR with intelligent LED control: Infrared illumination extends coverage to ~24 meters without overexposing nearby reflective surfaces. Smart LED management prevents IR flicker and maintains color saturation; critical for mixed lighting scenes (lit entry + dark perimeter).
- Motorized 2.7–13.5mm varifocal lens with P-iris and auto-focus: Focal length span delivers 85° to 32° horizontal field of view, allowing operators to shift from wide perimeter scans to tight zoom-in on subjects or objects. P-iris (programmable iris) automatically adjusts iris opening during zoom transitions, maintaining consistent exposure and depth-of-field across the zoom range. Auto-focus locks sharpness without manual calibration.
- True WDR 120dB: Balances bright sunlit areas against dark shadows in a single frame—essential for entrances with strong backlight, covered loading docks, or mixed indoor/outdoor transitions. 120dB headroom handles roughly 1 million:1 brightness ratio, reducing the need for aggressive manual exposure tweaking.
- IP66 / IK10 construction: IP66 rated means direct rain jets and dust won't penetrate; IK10 impact resistance withstands vandal strikes (typical for outdoor ground-level or accessible mounting). Not submersion-rated (that requires IP67+), so avoid full-submersion environments like below-grade drainage or flood-prone zones.
- PoE powered, 4.36–7.6W draw: Operates over standard 802.3af PoE without separate 12V supplies, reducing installation labor and switch load. Power draw stays well under the 15.4W 802.3af budget, so a single Cat6 run handles both data and power to the camera.
- Dual-stream video with multi-codec support (CVBS, HD-Analog, HD-CVI, HD-TVI, Universal HD over Coax): Critical for retrofitting existing coaxial systems—runs over existing RG-59 or RG-6 plant without requiring Cat5e retermination. Universal HD over Coax (UHD) preserves investments in analog infrastructure while allowing IP-style recording on digital NVRs.
- 24 programmable privacy zones and motion detection: Mask out sensitive areas (private residences, windows) on-device before streaming, reducing privacy compliance burden on your system. Motion detection triggers alarms and recording without relying on external VMS analytics.
- Auto day/night switching and Smart DNR 3D: Automatically shifts to B/W night mode when illumination drops, activating IR. 3D noise reduction cleans up grain in low-light footage without over-blurring edges—useful for 24/7 continuous recording where noise artifacts can dominate storage and reduce searchability.
- De-fog capability: Addresses condensation and mist common in humid outdoor environments (parking garages, marine facilities, northern climates). Partial mitigation only—heavy fog or rain on the lens still degrades video.
Thermal & Environmental Operating Range
Operates reliably from -4°F to 122°F (-20°C to 50°C) in humidity up to 90% non-condensing. Temperature range suits temperate to tropical climates; for sub-arctic deployments (-20°C or colder sustained), confirm housing thermal management with the vendor. Shutter speeds from 1/30 to 1/30000 with auto exposure and gamma correction allow the sensor to adapt to rapid lighting changes (sunrise, sunset, sudden cloud cover).
Integration & Compatibility
ONVIF compliance ensures interoperability with standard network video recorders and VMS platforms supporting ONVIF Profile S. The multi-codec output (Universal HD over Coax, CVCS, CVI, TVI) makes this camera a bridge solution for mixed analog/IP architectures common in enterprises consolidating surveillance systems. When paired with a modern NVR supporting these formats, you can migrate cameras piecemeal without ripping out infrastructure.
For PoE infrastructure planning, confirm your switch supplies at least 8W per port (most modern 802.3af/at switches do). A single gigabit PoE switch port can power and backhaul video from this camera without port sharing.
When to Choose a Different Model
If you need fixed indoor mounting, consider a lower-cost fixed-lens turret in the same family. If your scene demands extreme zoom reach (40x or higher optical), look to higher-end PTZ variants with longer focal-length lenses. For applications requiring NDAA compliance or federal procurement, verify that this model meets your procurement framework before committing.
Frequently Asked Questions
Q: What's the warranty on the DWC-VA583WTIR?
A: 5-year manufacturer warranty, reflecting build confidence and longevity typical of Digital Watchdog turret cameras.
Q: Can I use this camera with my existing coax plant?
A: Yes. The DWC-VA583WTIR supports Universal HD over Coax and HD-TVI/HD-CVI dual-stream output, allowing you to run this camera on existing RG-59 or RG-6 cabling to a compatible receiver or NVR. No retermination required.
Q: How far does the IR actually reach in total darkness?
A: Smart IR illuminates to roughly 80 feet (24 meters) in 0 lux conditions, though visible detail and color drop with distance. At closer ranges (under 40 feet), color night vision via Star-Light tech is preferable.
Q: Is this camera suitable for rainy climates?
A: IP66 protection handles sustained rain and wet spray; de-fog helps with condensation. However, rain on the lens itself degrades video quality regardless of IP rating. Pair with a hood or drip shield for coastal/high-moisture sites.
Q: What NVR systems does this work with?
A: ONVIF-compatible recorders (Milestone XProtect, Genetec, Hikvision, etc.) support the camera via IP. For coax output, use NVRs with HD-TVI, HD-CVI, or Universal HD over Coax inputs. Confirm codec support with your NVR vendor before ordering.
Q: How much power does the DWC-VA583WTIR draw, and do I need a separate power supply?
A: Peak draw is 7.6W via PoE (802.3af). No separate power supply needed; a standard PoE switch port supplies both power and data over a single Cat5e/Cat6 run.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-VA583WTIR excels in outdoor deployments where you need extended color night vision without heavy IR wash-out, paired with the flexibility to zoom in on subjects or objects on demand. The Star-Light sensor at 0.08 lux color performance is the real differentiator—most competing turrets flip to grayscale IR night mode immediately, losing color context that matters for investigation and threat assessment. Combine that with 120dB WDR and the motorized P-iris, and you've got a camera that handles backlit loading docks, sunset/sunrise transitions, and mixed indoor/outdoor perimeters without constant manual exposure tweaking.
Technical Highlights:
- Star-Light 0.08 lux color + 0.0 lux B/W: Renders usable color video in near-darkness where standard fixed-IR cameras default to grayscale. Real advantage for entrance monitoring, parking lot surveillance, and campus grounds where color detail aids investigation.
- Motorized 2.7–13.5mm P-iris lens with auto-focus: 85° to 32° field-of-view span lets operators shift from perimeter scans to tight zoom without stopping recording. P-iris automatically adjusts iris opening during zoom, maintaining consistent exposure and depth-of-field across the entire zoom range—no manual focus hunting.
- 120dB WDR + Smart DNR 3D: Balances bright sunlit areas against dark shadows in a single frame, then applies 3D noise reduction to clean up grain without over-blurring edges. Critical for 24/7 recording where aggressive noise artifacts reduce searchability and spike storage load.
- Multi-codec dual-stream (CVBS, HD-Analog, HD-CVI, HD-TVI, Universal HD over Coax): Runs on existing coaxial plant without retermination—migrate cameras piecemeal without ripping out infrastructure. ONVIF compatibility ensures interop with modern IP VMS platforms.
- PoE powered, 7.6W max: No separate 12V supplies needed; standard 802.3af switch port supplies both power and data over a single Cat5e/Cat6 run. Simplifies installation and reduces switch load compared to power-hungry PTZs.
Deployment Considerations:
- IP66 protects against rain and dust spray, but rain on the lens itself degrades video regardless—use a hood or drip shield in high-moisture environments.
- Smart IR extends to 80 feet in 0 lux, but visible detail drops significantly beyond 40 feet; rely on Star-Light color mode for identification at closer ranges.
- Confirm your NVR or VMS supports at least one of the output codecs (ONVIF for IP, HD-TVI/CVI for coax) before ordering—mixed analog/IP systems require explicit codec support.
- The motorized lens and pan-tilt functions consume more power than fixed-position turrets; confirm your PoE switch can supply sustained 8W+ per port.
Ideal for campus grounds, retail parking, warehouse perimeters, municipal traffic monitoring, and building entrances where color night detail, motorized zoom, and weatherproof construction are non-negotiable. The 5-year warranty and aluminum die-cast housing signal long-term durability—you're paying for a system that will hold up to sustained outdoor exposure and vibration from motorized pan-tilt action.
