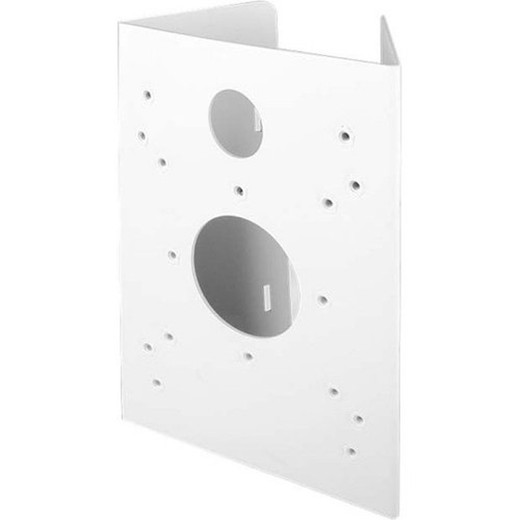

Digital Watchdog DWC-PMB-WLW Pole Mount Bracket White
The DWC-PMB-WLW is a pole mount bracket engineered for secure outdoor installation of Digital Watchdog IP cameras on vertical support structures. This accessory addresses a core deployment challenge: fixed mounting on poles, light standards, or bollards without structural modification to the installation site. The white finish blends into typical parking lot, perimeter, and campus environments — a practical detail when the bracket sits in the frame of security footage for extended periods.
Key Features
- Pole mounting system: Secures directly to vertical poles (typical 1.5–2 inch diameter range, though exact sizing should be verified against your pole specification) — avoids wall drilling, electrical conduit routing, or roof-access permits in many jurisdictions.
- Adjustable positioning: Articulated arms allow field-of-view optimization without returning to the installation vehicle — saves commissioning labor when fine-tuning coverage over parking rows or perimeter zones.
- Outdoor durability: Engineered for UV exposure, salt spray, and thermal cycling without significant material degradation — no plastic brittleness in cold climates or finish separation in humid coastal environments over 2–3 years of deployment.
- Integrated hardware: Includes mounting fasteners and an installation guide — deployment does not require sourcing stainless steel bolts or custom brackets separately.
- White finish: Reduces visual contrast in daylight scenes and blends with light poles, bollards, or standard-issue mounting hardware — a minor but measurable aid to scene composition in high-angle footage.
- Compatible with select Digital Watchdog models: Works with specific camera housings in the Digital Watchdog surveillance line — verify your camera model against the compatibility list in the included installation guide before ordering; incompatible pairing wastes both parts and labor.
Integration and Compatibility
The DWC-PMB-WLW is designed for integration with outdoor IP cameras from the Digital Watchdog product family. Before installation, confirm your camera model appears in the official compatibility matrix. Mounting orientation (camera pointing straight ahead, angled down, or tilted) is field-adjustable, which simplifies retrofitting into existing pole infrastructure with minimal downtime.
This bracket does not include a camera, recorder, or cabling. Plan for separate procurement of PoE cabling (typically CAT6 or CAT6A for runs exceeding 100 feet in noisy RF environments) and weatherproof connectors appropriate to your pole-mounted camera's RJ-45 inlet design.
Deployment Context
Pole mounting is the standard approach in open-area surveillance: parking lots without overhead structures, perimeter fencelines, utility corridors, and campus quads. The adjustability built into the DWC-PMB-WLW reduces field-installation friction compared to fixed brackets — if your initial coverage estimate misses a target zone, angle adjustment often solves it without re-planning the entire pole installation. This makes the bracket particularly valuable in phased-rollout scenarios where exact field-of-view requirements emerge during site surveys rather than in the design office.
What's in the Box
The DWC-PMB-WLW ships with the pole mount bracket assembly, mounting hardware (fasteners for standard pole diameters), and a printed installation guide. Exact fastener specifications are detailed in the guide; verify before installation that your pole diameter and material (steel, aluminum, fiberglass composite) are compatible with the included hardware.
Frequently Asked Questions
Q: What pole diameters does the DWC-PMB-WLW accommodate?
A: The bracket is engineered for standard pole diameters in the 1.5–2 inch range. Refer to the installation guide for exact diameter tolerances and material compatibility (steel, aluminum, fiberglass). Non-standard poles may require adapter collars sourced separately.
Q: Can I use the DWC-PMB-WLW with non-Digital Watchdog cameras?
A: The bracket is designed specifically for select Digital Watchdog surveillance models. Cross-brand compatibility is not supported without custom mounting plates, which may void the warranty. Verify your camera model in the official compatibility list before purchase.
Q: Is the white finish weather-resistant?
A: The finish is engineered for outdoor UV exposure, salt spray, and thermal cycling. In corrosive salt-fog or high-pollution environments, periodic cleaning and inspection for corrosion is recommended to maintain appearance and structural integrity.
Q: Do I need any tools to install the DWC-PMB-WLW?
A: Standard hand tools (wrench or socket set) are required to tighten fasteners around the pole. The installation guide specifies torque values to prevent over-tightening, which can crack the bracket or strip fasteners.
Q: What is the weight capacity of the DWC-PMB-WLW?
A: Weight capacity depends on the specific Digital Watchdog camera model and the pole's structural rating. Review the installation guide and your camera's weight specification before installation to confirm the bracket is appropriate for your payload.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-PMB-WLW solves a recurring field problem: how to get a surveillance camera onto a pole without building costs or site permits. Pole mounting is the default choice in parking lots and open-area deployments, and the DWC-PMB-WLW's adjustable design cuts commissioning time compared to fixed brackets — you set the initial angle on-site rather than pre-calculating coverage from CAD models.
Deployment Highlights:
- Adjustable positioning: Field-tunable angles avoid the back-and-forth of fixed-bracket installations where initial coverage estimates miss target zones. Labor savings compound on multi-camera deployments.
- Weather engineering: UV-hardened white finish and stainless fasteners hold up in coastal, desert, and freeze-thaw environments without rapid corrosion or finish separation — a 3-year baseline before visible degradation in moderate climates.
- Integration focus: Designed exclusively for Digital Watchdog cameras, so no cross-brand adapters or third-party mounting plates — one less variable during installation and one less compatibility footnote in your project documentation.
Installation Gotchas:
- Pole diameter tolerance is tight. Measure your poles before ordering; non-standard sizes (e.g., oval or beveled tops on light standards) may require custom collars not included in the kit.
- Weight capacity is camera-dependent. Confirm your specific Digital Watchdog model's mass against the bracket rating before final installation — overloading leads to creep and angle drift over months.
Deploy the DWC-PMB-WLW when you're planning a traditional pole-mounted surveillance line in a parking lot, perimeter, or utility corridor where adjustable positioning saves commissioning labor and exact coverage angles are discovered in the field, not finalized in the office.
