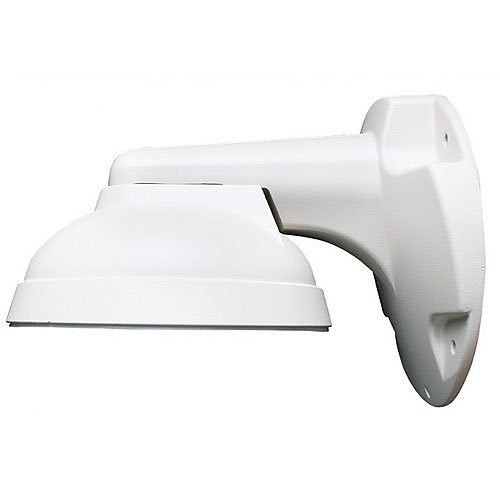

Digital Watchdog DWC-V1CNMW White Corner & Pole Mount Bracket

Digital Watchdog DWC-V1CNMW White Corner & Pole Mount Bracket

The DWC-V1CNMW is a professional-grade mounting bracket engineered for secure dome camera installation in corner and pole applications. Built from heavy-duty steel with a weather-resistant white powder-coated finish, this bracket delivers the structural integrity required for both indoor and outdoor surveillance deployments where mounting flexibility and environmental durability matter.

Key Features

• Versatile Corner & Pole Mounting: Accommodates both corner installations (building edges, fence junctions) and vertical pole mounting (utility poles, light posts, mast structures). This dual-mode flexibility means you aren't locked into a single installation geometry — critical when site conditions vary or future repositioning is anticipated.
• 5x Load Safety Rating: The mounting surface must support five times the combined weight of the camera and bracket. For a 2 lb dome camera, this translates to a 15 lb safety margin — more than adequate for vibration damping, wind load absorption, and long-term structural fatigue resistance without risk of fastener creep or surface failure.
• Heavy-Duty Steel Construction: Steel (not aluminum or plastic hybrid) resists deformation under sustained load and thermal cycling. The material choice matters in outdoor installations where temperature swings from -40°F to 140°F can cause expansion/contraction stress on lower-grade materials; steel maintains dimensional stability across this range.
• Weather-Resistant White Finish: Powder-coated steel finish tolerates humidity up to 90% non-condensing without corrosion initiation. The white color also reduces solar heat absorption compared to dark finishes — a practical benefit in full-sun pole installations where heat can degrade camera electronics over time.
• Temperature & Humidity Rated: Operating range of -40°C to 60°C (-40°F to 140°F) with 10–90% humidity tolerance means the bracket itself won't fail, warp, or become brittle in extreme climates. Particularly relevant in northern industrial sites, rooftop deployments, or regions with seasonal extremes where bracket failure is not an option.
• NDAA-Compliant Sourcing: Meets National Defense Authorization Act Section 889 requirements for government, defense, and federal contracting deployments. If your project is subject to NDAA supply-chain restrictions, this bracket clears that hurdle without additional certification procurement.

Integration & Compatibility

The DWC-V1CNMW is designed to support dome cameras across the Digital Watchdog surveillance line. Mounting orientation and fastener compatibility should be verified against the specific dome camera's base plate specification — standard M6 or M8 threaded inserts are typical, but confirm with your camera's datasheet. The bracket includes stainless steel screws and plastic anchors for both concrete and steel pole substrates, reducing the need for supplementary hardware procurement.

For network video recorder and PoE switch planning, mount height and pole routing affect cable management — position the bracket to allow weatherproof conduit runs down the pole without sharp bends that could pinch power or network lines.

What's in the Box

• 1x DWC-V1CNMW bracket assembly (steel, white finish)
• 1x Quick Start Guide (QSG)
• Stainless steel mounting screws
• Plastic anchors (for drywall or concrete substrate)
• Camera mounting hardware (base plate fasteners)

When to Choose a Different Model

If your dome camera requires a recessed ceiling mount (flush-mount into soffit or drop ceiling), or if you need a wall bracket with a significantly longer offset arm for under-eave installations, consider other bracket profiles in the camera mount and bracket category. The DWC-V1CNMW is optimized for external corner and pole geometry; it is not designed for pendant or soffit applications. Additionally, if the mounting surface itself is unable to support a 5x load margin (lightweight aluminum structures, thin plywood), a lighter-duty bracket or alternative installation method may be necessary.

Frequently Asked Questions

Q: Is the DWC-V1CNMW suitable for coastal salt-spray environments?

A: The white powder-coated steel finish resists corrosion in humid outdoor conditions up to 90% non-condensing humidity. However, salt-spray environments (marine coastal areas) require stainless steel or specialty coatings. The standard DWC-V1CNMW finish is not rated for continuous salt-spray exposure; consult with the manufacturer for marine-grade alternatives if your site is within 2–3 miles of the ocean.

Q: Can the bracket be installed on a wooden utility pole?

A: Yes. The included plastic anchors are suitable for wood substrate. Pre-drill appropriately sized holes to prevent wood splitting, and use lag bolts or structural wood screws rated for outdoor use (not the included fasteners, which are designed for masonry or steel). Ensure the pole's structural integrity can support the 5x load safety margin.

Q: What camera weight can the DWC-V1CNMW support?

A: The mounting surface must support 5x the combined weight of the camera and bracket. The bracket itself weighs 2.86 lbs (1.3 kg). For example, a 3 lb dome camera plus 2.86 lb bracket = 5.86 lbs combined; the mounting surface must safely bear 29.3 lbs. Verify your specific camera's weight from its datasheet, then confirm the mounting surface (pole, structural beam, wall) can meet the 5x requirement.

Q: Is the DWC-V1CNMW compatible with all Digital Watchdog dome cameras?

A: Compatibility depends on the camera's base-plate design and threaded insert size. Most professional-grade dome cameras use standard M6 or M8 fastener patterns that align with this bracket. Always cross-reference the camera's installation guide with the bracket dimensions before ordering to confirm mechanical fit.

Q: What maintenance does the white finish require?

A: Inspect the powder-coated finish annually for chips, cracks, or corrosion initiation. Clean debris and salt residue with fresh water if deployed in coastal or high-humidity environments. Touch up minor scratches with white enamel paint to prevent rust spread. The finish is not self-healing; proactive maintenance extends service life in harsh outdoor climates.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-V1CNMW bracket solves a real integration problem: outdoor dome camera mounting that doesn't require custom fabrication or over-engineered structural work. The 5x load safety rating means you're not just meeting minimum spec — you're building in fatigue resistance and wind-load absorption that keeps the bracket from becoming a liability under seasonal stress. For integrators and IT architects planning perimeter surveillance on existing poles or building corners, that structural confidence is worth the material cost.

Technical Highlights:

• 5x Load Safety Margin: On a typical 2–4 lb dome camera, you're looking at 10–20 lb of sustained safety headroom. That's vibration damping, thermal expansion tolerance, and fastener creep prevention baked in — meaningful in high-wind coastal or industrial sites where cheaper brackets start to drift or creak within 18 months.
• -40°F to 140°F Operating Range: Steel doesn't become brittle at -40°F like some aluminum or composite brackets do. In northern warehouses, rooftop data-center perimeter coverage, or seasonal outdoor deployments, temperature cycling won't cause fastener seizing or material failure that forces bracket replacement mid-contract.
• 90% Non-Condensing Humidity Tolerance: The powder-coated finish handles tropical humidity, salt-fog exposure up to the non-salt-spray threshold, and rain splash without initiating corrosion cycles. You're not replacing brackets every 3–4 years in high-humidity climates; that's a real cost-of-ownership win.
• NDAA Compliance: If your deployment touches federal, defense, or government procurement, the DWC-V1CNMW clears supply-chain scrutiny without secondary certification. That removes a purchasing roadblock and simplifies compliance documentation.

Deployment Considerations:

• Mounting Surface Verification is Non-Negotiable: The bracket's 5x safety rating only works if the pole, beam, or wall it's bolted to can actually support that load. I've seen integrators gloss over this — verify the substrate's structural capacity before installation. Lightweight aluminum utility poles or thin sheet-metal structures might not meet the requirement, and no bracket is safer than a good installation plan.
• Powder Coat Maintenance Matters in Salt Spray: The white finish is durable but not stainless. In true marine environments (within 2–3 miles of salt water), minor scratches or chipped areas will initiate surface rust within 12–18 months. Plan annual inspections and touch-up painting if you're near the coast; don't treat this as a zero-maintenance install.
• Cable Routing Requires Early Planning: Pole-mounted brackets create natural opportunities for PoE and network cable runs down the mounting structure. Layout conduit and cable trays before final bracket installation — rework post-installation is messier and more expensive than planning it in the design phase.

For perimeter surveillance on industrial or commercial sites where the mounting surface is confirmed to be structurally sound, the DWC-V1CNMW delivers straightforward, field-proven reliability. It's especially valuable in harsh outdoor climates (high humidity, temperature swings) where bracket durability directly impacts total cost of ownership. Skip it if your deployment requires recessed or pendant mounting, or if your site is in a true salt-spray marine environment without stainless-steel coating upgrades.
